415BPB (86367) - Snapper Blower 415BPB Engine Assm'y And Fuel Tank Parts Diagram

Blower

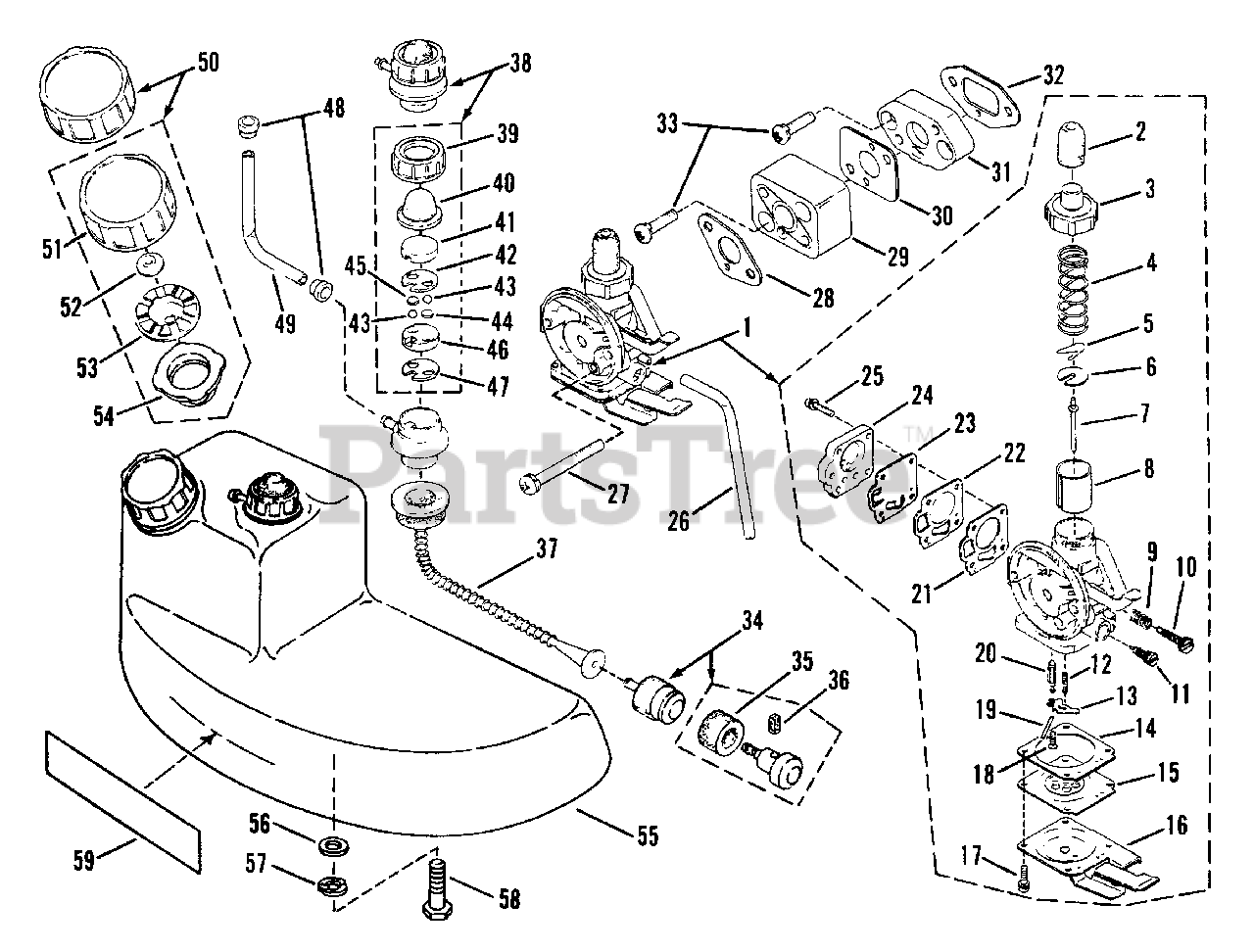

415BPB Engine Assm'y And Fuel Tank Parts Diagram

  • Title

1

Snapper 7044186

CARBURETOR ASSM'Y.

Note: (Incl. items 2 thru 25)

$

$

Not available

2

Snapper 7044057

CAP, Rubber

$

$

Not available

3

Snapper 7044058

CAP, Mixing Chamber

$

$

Not available

4

Snapper 7044059

SPRING, Throttle

$

$

Not available

5

Snapper 7044012

CLIP, Needle
(Superseded to 7044012YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7044060

RETAINER, Spring

$

$

Currently unavailable

7

Snapper 7044195

NEEDLE, Jet Assembly

$

$

Currently unavailable

8

Snapper 7044196

VALVE, Throttle

$

$

Currently unavailable

9

Snapper 7044063

SPRING, Throttle Adj. Screw

$

$

Currently unavailable

10

Snapper 7044064

SCREW, Throttle Adj.

$

$

Not available

11

Snapper 7044065

NEEDLE, Main Jet Assm'y.

$

$

Not available

12

Snapper 7044066

SPRING, Inlet Valve

$

$

Currently unavailable

13

Snapper 7044074

ARM, Float
(Superseded to 7044074YP)

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 7044067

GASKET, Main Diaphragm

$

$

Not available

15

Snapper 7044068

DIAPHRAGM, Main Assm'y.

$

$

Not available

16

Snapper 7044194

COVER, Main Diaphragm

$

$

Not available

17

Snapper 7044078

SCREW

$

$

Currently unavailable

18

Snapper 7044076

SCREW, Float Pin Set

$

$

Currently unavailable

19

Snapper 7044075

PIN, Float

$

$

Currently unavailable

20

Snapper 7044073

VALVE, Float

$

$

Not available

21

Snapper 7044072

GASKET, Pump Cover
(Superseded to 7044072YP)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 7044193

VALVE, Pump Check

$

$

Not available

23

Snapper 7044192

DIAPHRAGM, Pump
(Superseded to 7044192YP)

$33.99

$

Usually ships in 2-12 days

0

24

Snapper 7044070

COVER

$

$

Not available

25

Snapper 7044069

SCREW

$

$

Currently unavailable

26

Snapper 7044187

TUBE, Overflow
(Superseded to 7044187YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7044185

SCREW, Carburetor

$

$

Not available

28

Snapper 7044188

GASKET, Carburetor
(Superseded to 7044188YP)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7044189

INSULATOR, Intake

$

$

Currently unavailable

30

Snapper 7044190

GASKET, Insulator

$

$

Not available

31

Snapper 7044191

FLANGE, Intake

$

$

Currently unavailable

32

Snapper 7044047

GASKET, Flange

$

$

Not available

33

Snapper 7044052

SCREW

$

$

Currently unavailable

34

Snapper 7044125

FILTER ASSM'Y., Fuel

Note: (Incl. items 35 & 36)

$

$

Not available

35

Snapper 7044143

FILTER

$

$

Not available

36

Snapper 7044144

SPONGE

$

$

Not available

37

Snapper 7044238

HOSE, Fuel

$

$

Not available

38

Snapper 7044129

PRIMER PUMP ASSM'Y.

Note: (Incl. items 39 thru 47)

$

$

Not available

39

Snapper 7044090

CAP, Pump

$

$

Not available

40

Snapper 7044118

CAP, Rubber

$

$

Not available

41

Snapper 7044119

SEAT, Valve B

$

$

Not available

42

Snapper 7044120

GASKET

$

$

Not available

43

Snapper 7044122

BALL

$

$

Not available

44

Snapper 7044121

SPONGE

$

$

Not available

45

Snapper 7044237

SPONGE

$

$

Not available

46

Snapper 7044123

SEAT, Valve A

$

$

Not available

47

Snapper 7044124

GASKET

$

$

Not available

48

Snapper 7044127

CLIP, Fuel Tube

$

$

Not available

49

Snapper 7044054

TUBE, Fuel

$

$

Not available

50

Snapper 7044150

CAP ASSM'Y., Fuel

Note: (Incl. items 50 thru 54)

$

$

Not available

51

Snapper 7044150

CAP, Fuel

Note: Was 44149

$

$

Not available

52

Snapper 7044133

VALVE

$

$

Not available

53

Snapper 7044134

HOLDER

$

$

Currently unavailable

54

Snapper 7044150

GASKET

Note: Was 44135

$

$

Not available

55

Snapper 7045003

TANK, Fuel

$

$

Not available

56

Snapper 7045004

WASHER, Flat

$

$

Currently unavailable

57

Snapper 7045005

WASHER/SPRING, M6

$

$

Currently unavailable

58

Snapper 7045006

BOLT, M6 x 16mm

$

$

Currently unavailable

59

Snapper 45001

DECAL, SNAPPER

$

$

Currently unavailable
