4150 (86059) - Snapper Walk-Behind Trimmer 4150R.T. Frame Parts Diagram

Walk-Behind Trimmer

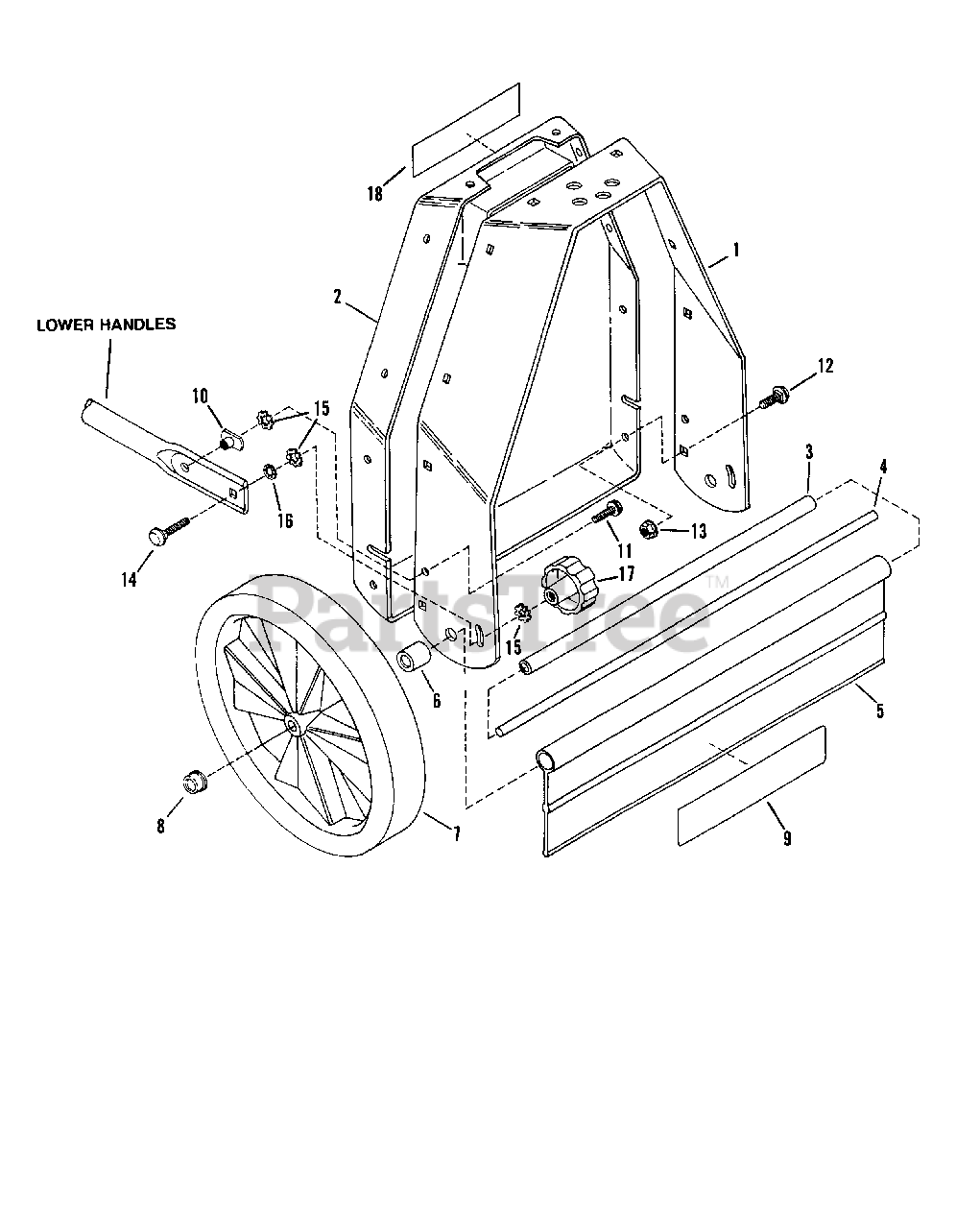

4150R.T. Frame Parts Diagram

  • Title

1

Snapper 32899

FRAME, Main

$

$

Currently unavailable

2

Snapper 7016288

PANEL, Main Frame

$

$

Currently unavailable

3

Snapper 7016294

SPACER, Tube Frame

$

$

Currently unavailable

4

Snapper 7038541

SHAFT, Axle

$

$

Currently unavailable

5

Snapper 19116

SHIELD, Trailing

$

$

Currently unavailable

6

Snapper 7023508

BUSHING, Axle

$

$

Currently unavailable

7

Snapper 7017065

WHEELS

$

$

Not available

8

Snapper 7013024

NUT, 3/8 Push
(Superseded to 7013024YP)

$8.49

$

In Stock, only 2 left!

0

9

Snapper 7044640

LABEL, Trailing Shield

Note: Was 23754

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

11

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

12

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

13

Snapper 7091584

NUT,1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

14

Snapper 7090192

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 7090192YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7090189

WASHER, 5/16 Int./Ext. Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7023735

KNOB, 5/16-18 Plastic
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 16237

LABEL, Adjustment

$

$

Currently unavailable
