4150 (86059) - Snapper Walk-Behind Trimmer 4150R.T. Crankcase And Clutch Drum Assembly Parts Diagram

Walk-Behind Trimmer

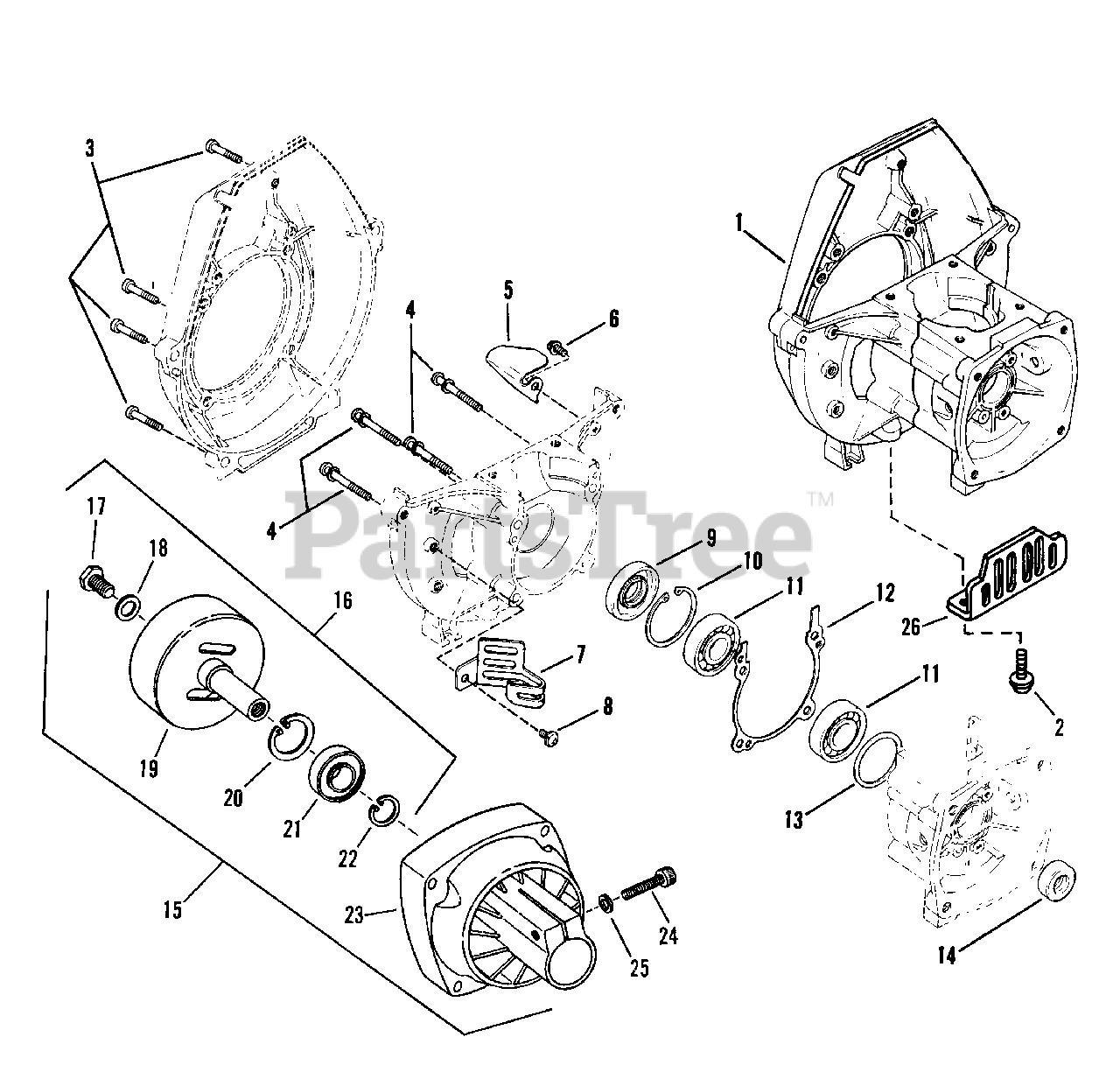

4150R.T. Crankcase And Clutch Drum Assembly Parts Diagram

  • Title

1

Snapper 7044147

CRANK CASE ASSM'Y

$

$

Currently unavailable

2

Snapper 7044261

SCREW, M6 x 10mm Cross Hd.

$

$

Currently unavailable

3

Snapper 7044004

SCREW

$

$

Currently unavailable

4

Snapper 7044003

SCREW

$

$

Currently unavailable

5

Snapper 7044002

PLATE

$

$

Currently unavailable

6

Snapper 7044001

SCREW

$

$

Currently unavailable

7

Snapper 7044005

CLAMP

$

$

Currently unavailable

8

Snapper 7044006

SCREW

$

$

Currently unavailable

9

Snapper 7044007

SEAL, Oil

$

$

Currently unavailable

10

Snapper 7044008

SNAP-RING

$

$

Currently unavailable

11

Snapper 7044009

BEARING
(Superseded to 7044009YP)

$8.49

$

Usually ships in 2-12 days

0

12

Snapper 7044010

GASKET, Crankcase

$

$

Currently unavailable

13

Snapper 7044011

SHIM (Set of 3)

$

$

Currently unavailable

14

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 7043016

ASSEMBLY, Clutch Case

Note: (Includes items 16 thru 25)

$

$

Currently unavailable

16

Snapper 7043932

ASSEMBLY, Clutch Drum

Note: (Includes items 17 thru 22)

$

$

Currently unavailable

17

Snapper 7043935

BOLT, Hex HD

$

$

Currently unavailable

18

Snapper 7043934

WASHER

$

$

Currently unavailable

19

Snapper 7043933

DRUM, Clutch

$

$

Not available

20

Snapper 7043917

RING, Snap

$

$

Not available

21

Snapper 7043936

BEARING

$

$

Not available

22

Snapper 7043938

RING, Snap

$

$

Currently unavailable

23

Snapper 7043017

CASE, Clutch

$

$

Currently unavailable

24

Snapper 7043930

SCREW, M6 x 25mm Socket

$

$

Currently unavailable

25

Snapper 7043931

WASHER, M6 Split Lock

$

$

Currently unavailable

26

Snapper 7044260

PLATE, Guard

$

$

Currently unavailable
