415 - Shindaiwa Chainsaw Ignition System Parts Diagram

Chainsaw

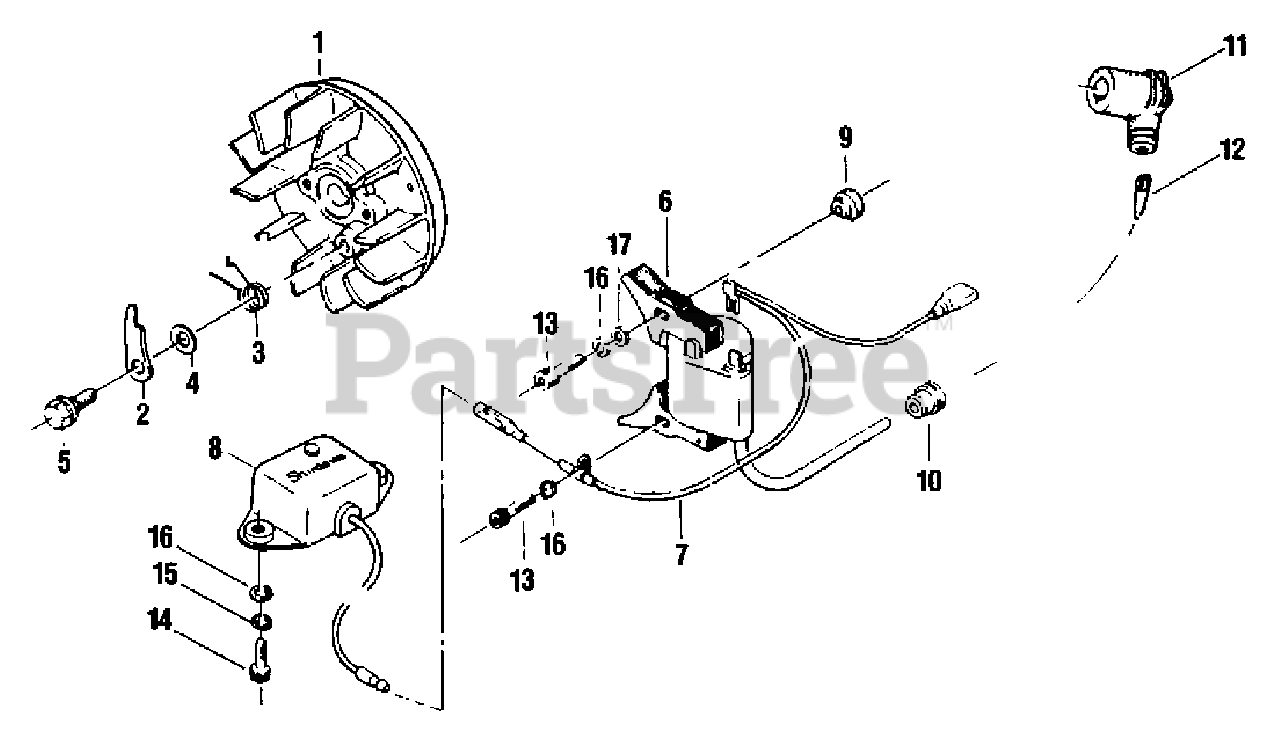

Ignition System Parts Diagram

  • Title

Echo 22128-71100

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

1

ROTOR

Note: Order P/N 22128-71100

$

$

Not available

2

Echo 22100-71410

PAWL, STARTER
(Superseded to A514000200)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 22100-71420

SPRING, RETURN
(Superseded to V452000780)

$0.99

$

In Stock, Qty 6

0

4

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 22100-71441

BOLT
(Superseded to V204000720)

$1.99

$

Usually ships in 2-4 days

0

Echo 22128-71602

IGNITION COIL ASSY
(Superseded to Discontinued)

$

$

Not available

6

------------------

COIL

Note: Order P/N 22128-71602

$

$

Not available

7

Echo 22128-71620

WIRE

$7.49

$

Usually ships in 2-4 days

0

8

Echo 22128-71700

UNIT
(Superseded to 22104-71700)

$

$

Not available

9

Echo 22100-72110

SPACER

$2.49

$

Usually ships in 2-4 days

0

10

Echo 22104-72210

GROMMET

$2.49

$

In Stock, only 4 left!

0

11

Echo 20010-72221

CAP, SPARK PLUG
(Superseded to A427000090)

$5.99

$

In Stock, Qty 6

0

12

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 12

0

13

Echo 01020-04240

SCREW - 4X24
(Superseded to 9110004024)

$0.99

$

In Stock, Qty 8

0

14

Echo 01020-04100

SCREW - 4X10
(Superseded to 90010504010)

$1.49

$

In Stock, Qty 20+

0

15

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

16

Echo 01610-04050

WASHER - 4
(Superseded to 90060000004)

$0.99

$

In Stock, Qty 12

0

17

UNKNOWN

$

$

Not available
