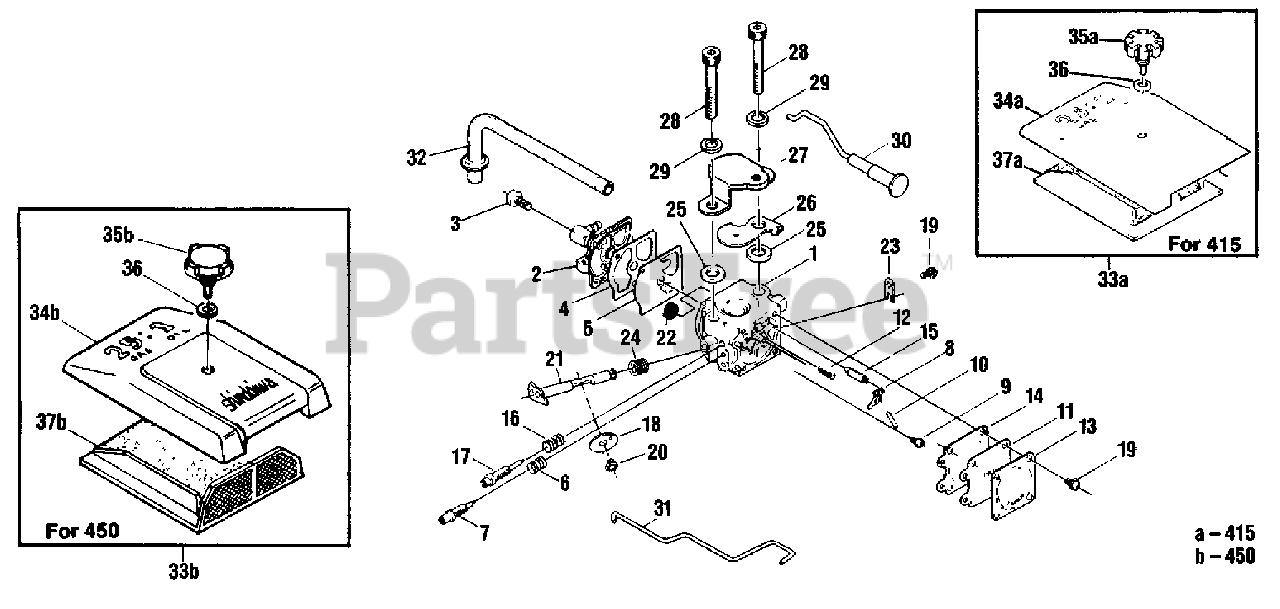

415 - Shindaiwa Chainsaw Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 22128-81002

CARBURETOR
(Superseded to A021002980)

$105.99

$

In Stock, only 3 left!

0

1

------------------

BASE, PURGE

Note: Order P/N 22128-81002

$

$

Not available

2

Echo 22128-81120

PUMP COVER ASSY
(Superseded to P003002750)

$

$

Not available

3

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

$0.99

$

In Stock, only 1 left!

0

4

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$2.49

$

In Stock, Qty 9

0

5

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$5.99

$

In Stock, only 2 left!

0

6

Echo 22100-81160

SPRING
(Superseded to 12312103930)

$1.49

$

In Stock, Qty 5

0

7

Echo 22128-81171

NEEDLE - LOW SPEED
(Superseded to P003002760)

$3.49

$

Usually ships in 2-4 days

0

8

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

9

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$1.49

$

In Stock, only 1 left!

0

10

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

11

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

12

Echo 22104-81270

SPRING, METERING LEVER
(Superseded to 12312211130)

$1.49

$

In Stock, only 1 left!

0

13

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

14

Echo 22100-81290

GASKET, METERING
(Superseded to 12314003930)

$1.99

$

In Stock, Qty 6

0

15

Echo 22100-81310

VALVE, INLET NEEDLE
(Superseded to 12313704260)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 22100-81320

SPRING
(Superseded to 12311903930)

$1.49

$

In Stock, only 4 left!

0

17

Echo 22104-81330

NEEDLE - HIGH SPEED
(Superseded to 22104-81320)

$17.99

$

Usually ships in 2-4 days

0

18

Echo 22104-81340

VALVE, THROTTLE
(Superseded to 12311610530)

$1.99

$

Usually ships in 2-4 days

0

19

Echo 22100-81351

SCREW
(Superseded to 12313002960)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 22100-81360

SCREW
(Superseded to 12311403930)

$1.49

$

In Stock, Qty 13

0

21

Echo 22100-81370

SHAFT
(Superseded to 2210481350)

$17.99

$

Usually ships in 2-4 days

0

22

Echo 22128-81380

STRAINER
(Superseded to P003002770)

$0.99

$

Usually ships in 2-4 days

0

23

Echo 22100-81390

RING, RETAINING
(Superseded to 12312703930)

$1.49

$

Usually ships in 2-4 days

0

24

Echo 22100-81410

SPRING, RETURN

$0.99

$

In Stock, only 1 left!

0

25

Echo 22100-82110

WASHER
(Superseded to V303000280)

$0.99

$

In Stock, only 2 left!

0

26

Echo 22120-82120

PLATE, SHUTTER

$1.99

$

Usually ships in 2-4 days

0

27

UNKNOWN

$

$

Not available

?27A

Echo 22100-82130

BRACKET
(Superseded to Discontinued)

Note: For 415 Model

$

$

Not available

?27B

Echo 22128-82130

BRACKET, CARBURETOR
(Superseded to A244000200)

Note: For 450 Model

$2.99

$

Usually ships in 2-4 days

0

28

Echo 01020-05400

SCREW - 5X40
(Superseded to 90010505040)

$1.49

$

In Stock, Qty 5

0

29

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

30

Echo 22102-82140

ROD, CHOKE

$3.49

$

Usually ships in 2-4 days

0

31

Echo 22100-82212

ROD, THROTTLE

$

$

Currently unavailable

32

Echo 22104-82220

PIPE - IMPULSE
(Superseded to V470001390)

$2.49

$

In Stock, Qty 5

0

33A

Echo 22100-82400

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: For 415 Model

$

$

Not available

34A

------------------

COVER, AIR FILTER

$

$

Not available

35A

Echo 22100-82420

THUMBSCREW
(Superseded to Discontinued)

Note: Order P/N 22100-82400

$

$

Not available

36

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 6

0

37A

Echo 22102-97521

FILTER, AIR - FLOCKED
(Superseded to Discontinued)

Note: For 415 Model

$

$

Not available

33B

Echo 22128-82400

AIR FILTER COVER ASSY
(Superseded to A232000980)

Note: For 450 Model

$13.99

$

Usually ships in 2-4 days

0

34B

------------------

COVER, AIR FILTER

Note: Order P/N 22128-82400

$

$

Not available

35B

Echo 22128-82420

THUMBSCREW
(Superseded to A235000230)

$5.49

$

Usually ships in 2-4 days

0

37B

Echo 22128-97520

FILTER, AIR - FLOCKED
(Superseded to A226001490)

Note: For 450 Model

$14.99

$

Usually ships in 2-4 days

0

Echo 22100-81200

REPAIR KIT

Note: Includes ITEMS 8, 9, 10, 12, 15, 22

$10.99

$

Usually ships in 2-4 days

0

Echo 22128-81100

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 4, 5, 11, 14

$10.99

$

Usually ships in 2-4 days

0
