4140 H - Husqvarna 46" Lawn Tractor (1992-01) Front End/Hood Parts Diagram

46" Lawn Tractor

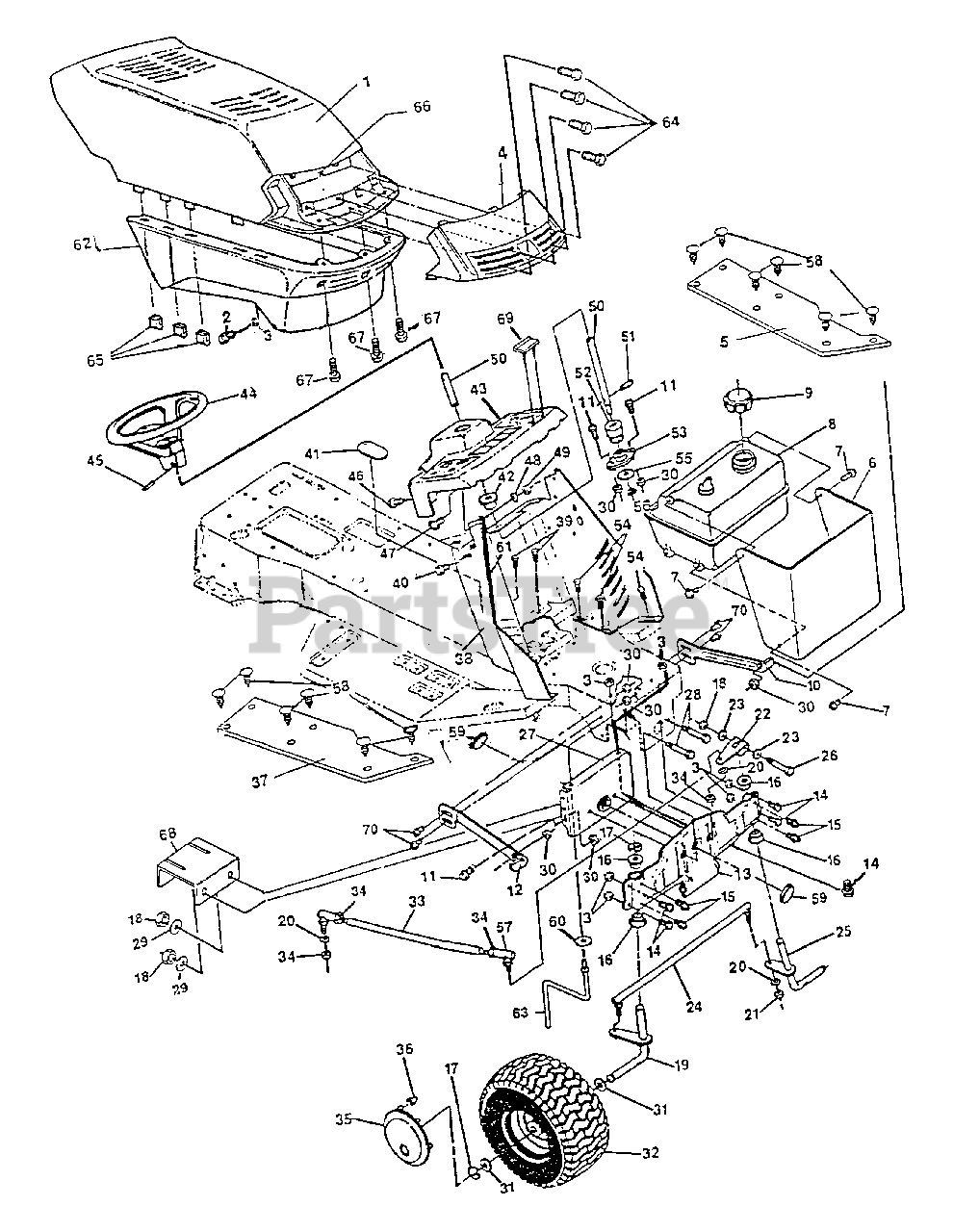

Front End/Hood Parts Diagram

  • Title

1

Husqvarna 601000873

Hood
(Superseded to 601002471)

$

$

Not available

2

Husqvarna 601000099

Shoulder Bolt, 5/16-18 Thd.

$

$

Not available

3

Husqvarna 601000059

Nut, Hx, Ctrlk, 5/16-18 Thd.

$10.99

$

In Stock, only 2 left!

0

4

Husqvarna 601000304

Lens, Headlight
(Superseded to 601001903)

$

$

Not available

5

Husqvarna 601000465

Assembly, Foot Pad L.H.

$

$

Not available

6

Husqvarna 601000712

Heat Shield

$

$

Not available

7

Husqvarna 601000114

Screw, Hx Hd, Plastite 1/4 x 34

$

$

Not available

8

Husqvarna 601000272

Tank, Gas 1.5 W/Sensor

$

$

Not available

8

Husqvarna 601000271

Low Fuel Sensor

$

$

Not available

9

Husqvarna 601000049

Cap, Fuel

$

$

Not available

10

Husqvarna 601000874

Bracket, Hood L.H.

$

$

Not available

11

Husqvarna 601000597

Screw, Hx Hd, Wd Fl 5/16-1 x 3/4 In.

$

$

Not available

12

Husqvarna 601000875

Bracket, Hood R.H.

$

$

Not available

13

Husqvarna 601000876

Front Axle W/Bearings & Spindles

$

$

Not available

14

Husqvarna 601000006

Screw, Hx Hd, 5/16-18 x 5/8 In.
(Superseded to 601000073)

$

$

Not available

15

Husqvarna 601000651

Grease Fitting

$

$

Not available

16

Husqvarna 601000147

Bearing, Spindle

$

$

Not available

17

Husqvarna 601000525

E-Ring

$

$

Not available

18

Husqvarna 601000060

Nut, Hx, Ctrlk, 3/8-16 Thd.
(Superseded to 601002407)

$

$

Not available

19

Husqvarna 601000255

Spindle, R.H.

$

$

Not available

20

Husqvarna 601000015

Washer, Split, Lock 3/8 In.

$

$

Not available

21

Husqvarna 601000010

Nut, Hex, 3/8-24 Thd.

$

$

Not available

22

Husqvarna 601000148

Steering Arm, Upper
(Superseded to 601000506)

$

$

Not available

23

Husqvarna 601000670

Washer, Flat, 25/64 In

$

$

Not available

24

Husqvarna 601000119

Assembly, Tie Rod

$

$

Not available

25

Husqvarna 601000254

Spindle, L.H.

$

$

Not available

26

Husqvarna 601000077

Screw, Hx Hd, 3/8-16 x 2-1/2 In.

$

$

Not available

27

Husqvarna 601000708

Support Bracket, Front Axle

$

$

Not available

28

Husqvarna 601000037

Screw, Hx Hd, 3/8-16 x 3 In.

$

$

Not available

29

Husqvarna 601000098

Washer, Spring
(Superseded to 601002313)

$

$

Not available

30

Husqvarna 601000595

Nut, Hx, Wd Fl Lk, 5/16-18 Thd.
(Superseded to 601000867)

$

$

Not available

31

Husqvarna 601000645

Washer, Flat, 3/4 In.

$

$

Not available

32

Wheel & Tire Assembly, Front

Note: Order parts individually

$

$

Not available

32

Husqvarna 601000947

Tire, 20X2OX8

$

$

Not available

32

Husqvarna 601000877

Wheel

$

$

Not available

32

Husqvarna 601000096

Valve Stem

$

$

Not available

32

Husqvarna 601000458

Bearing

$

$

Not available

33

Husqvarna 601000180

Drag Link

$

$

Not available

34

Husqvarna 601000048

Nut, Hx, Jam, 3/8-24 Thd.

$

$

Not available

35

Husqvarna 601000290

Hubcap, Front

$

$

Not available

36

Husqvarna 601000294

Clip, Hubcap

$

$

Not available

37

Husqvarna 601000464

Assembly, Foot Pad R.H.

$

$

Not available

38

Husqvarna 601000700

Dash, Lower

$

$

Not available

39

Husqvarna 601000544

Screw, Tap, 5/16-18 x 3/8 In

$

$

Not available

40

Husqvarna 601000668

Screw, Self-Tap, 1/4-20x 1/2 In
(Superseded to 601001445)

$

$

Not available

41

Husqvarna 601000247

Cover

$

$

Not available

42

Husqvarna 601000192

Bushing, Upper Steering

$

$

Not available

43

Husqvarna 601000878

Dash, Upper

$

$

Not available

44

Husqvarna 601000190

Steering Wheel

$

$

Not available

45

Husqvarna 601000548

Pin, Spring, 1/4 x 2 In.

$

$

Not available

46

Husqvarna 601000274

Screw, Tap, 1/4-20 x 1/2 In.

$

$

Not available

47

Husqvarna 601000024

Screw, Hx Hd, 1/4-20 x 5/8 In.

$

$

Not available

48

Husqvarna 601000018

Washer, Flat, 9/32 In.

$

$

Not available

49

Husqvarna 601000062

Nut, Hx, Ctrlk, 1/4-20 Thd.
(Superseded to 601002318)

$14.99

$

In Stock, only 1 left!

0

50

Husqvarna 601000149

Shaft, Steering5.

$

$

Not available

51

Husqvarna 601000164

Pin, Dowel

$

$

Not available

52

Husqvarna 601000151

Pinion, Steering

$

$

Not available

53

Husqvarna 601000163

Bearing, Flange

$

$

Not available

54

Husqvarna 601000519

Screw, 5/16-18x 50 Wahhtap

$

$

Not available

55

Husqvarna 601000109

Washer, Flat, 1/2 In

$

$

Not available

56

Husqvarna 601000089

E-Ring

$

$

Not available

57

Husqvarna 601000623

Ball, Joint, 3/8 Thd

$

$

Not available

58

Husqvarna 601000406

Ratchet Fastener

$

$

Not available

59

Husqvarna 601000307

Plug, Front Axle

$

$

Not available

60

Husqvarna 601000057

Washer, Internal Tooth

$

$

Not available

61

Husqvarna 601000556

Wide Trim 18"
(Superseded to 601000739)

$

$

Not available

62

Husqvarna 601000302

Grille

$

$

Not available

63

Husqvarna 601000122

Belt Guide

$

$

Not available

64

Husqvarna 601000417

Screw, #4-24 x 1/2 In

$

$

Not available

65

Husqvarna 601000303

Clip, Tinnerman

$

$

Not available

66

Husqvarna 601000397

Decal, Reflector

$

$

Not available

67

Husqvarna 601000113

Screw, # 10 x 1/2 In

$

$

Not available

68

Husqvarna 601000730

Bracket, Stop

$

$

Not available

69

Husqvarna 601000879

Bumper/Hood

$

$

Not available

70

Husqvarna 601000591

Screw, Hex Wd Fl, 5/16-18 x 3/4 In.

$

$

Not available

71

Husqvarna 601000057

Washer, Internal Tooth

$

$

Not available
