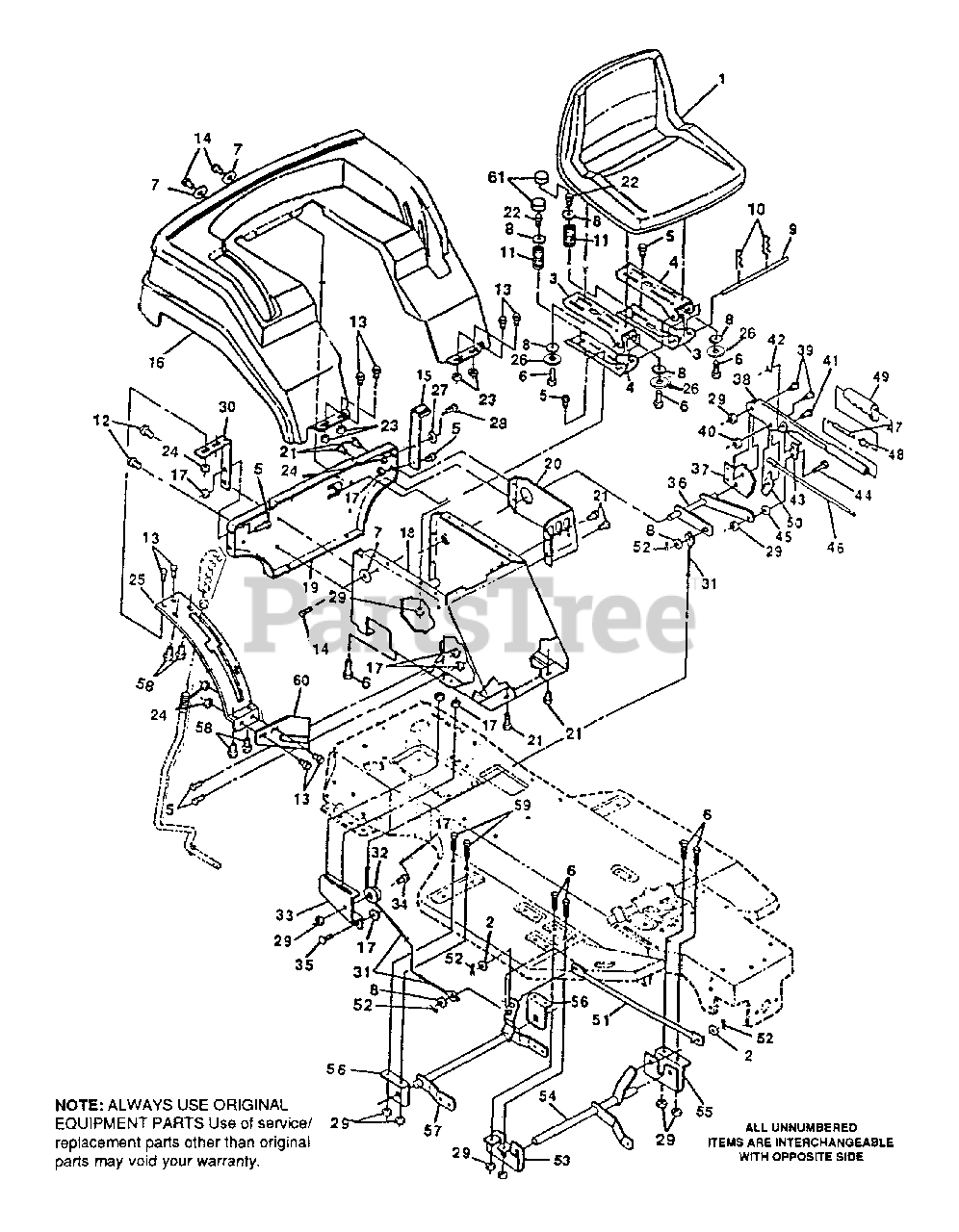

4140 H - Husqvarna 46" Lawn Tractor (1992-01) Chassis/Seat Parts Diagram

46" Lawn Tractor

Chassis/Seat Parts Diagram

  • Title

1

Husqvarna 601000395

Seat

$

$

Not available

2

Husqvarna 601000105

Washer, Flat, 13/32 In.12

$

$

Not available

3

Husqvarna 601000864

Channel, Seat

$

$

Not available

4

Husqvarna 601000865

Channel, Seat

$

$

Not available

5

Husqvarna 601000597

Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In.

$

$

Not available

6

Husqvarna 601000028

Screw, Hx Hd, 5/16-18 x 3/4 In.

$

$

Not available

7

Husqvarna 601000003

Washer, Flat, .281 x 1.00 x .063

$

$

Not available

8

Husqvarna 601000019

Washer, Flat, 11/32 In.

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 601000865

Rod, Seat Support

$

$

Not available

10

Husqvarna 601000523

Hair Pin, .073 Dia. x 1.13 In.

$

$

Not available

11

Husqvarna 601000262

Seat Spring

$

$

Not available

12

Husqvarna 601000570

Screw, Tap, 5/16-18 x 7/8 In.

$

$

Not available

13

Husqvarna 601000067

Screw, Hx Hd, 1/4-20 x 5/8 In.

$

$

Not available

14

Husqvarna 601000667

Screw, Hx, Wsher Hd, Tap 1/4-20 x 5/8 In.

$

$

Not available

15

Husqvarna 601000257

Fender Support, L.H.
(Superseded to 601000287)

$

$

Not available

16

Husqvarna 601000866

Fender

$

$

Not available

17

Husqvarna 601000867

Nut, Hx, Wd Fl, Lk 5/16-18 Thd.

$

$

Not available

18

Husqvarna 601000868

Seat Support

$

$

Not available

19

Husqvarna 601000869

Support, Fender & Seat

$

$

Not available

20

Husqvarna 601000134

Bracket, Support Engage

$

$

Not available

21

Husqvarna 601000519

Screw, Hx Wshr Hd Tap, 5/16-18 x 1/2 In.

$

$

Not available

22

Husqvarna 601000543

Screw, 5/16-18 x .63

$

$

Not available

23

Husqvarna 601000062

Nut, Lock, 1/4-20 Thd.
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 601000575

Nut, Hx, Wd Fl Lk, 1/4-20 Thd.

$

$

Not available

25

Husqvarna 601000737

Quadrant

$

$

Not available

26

Husqvarna 601000023

Washer, Split.328x.60x.09

$

$

Not available

27

Husqvarna 601000017

Washer, Flat

$

$

Not available

28

Husqvarna 601000073

Screw, 1/4-20 x .75

$

$

Not available

29

Husqvarna 601000059

Nut, Hx Ctrlk, 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 601000258

Fender Support, R.H.

$

$

Not available

31

Husqvarna 601000191

Cable, Deck Lift

$

$

Not available

32

Husqvarna 601000560

Pulley

$11.99

$

Usually ships in 3-10 days

0

33

Husqvarna 601000193

Assembly, Pulley Bracket

$

$

Not available

34

Husqvarna 601000263

Shoulder Bolt, 5/16-18 Thd.

$

$

Not available

35

Husqvarna 601000052

Bolt, Carriage, 5/16-18 x 5/8 In.

$

$

Not available

36

Husqvarna 601000133

Assembly, Upper Shaft

$

$

Not available

37

Husqvarna 601000160

Quadrant

$

$

Not available

38

Husqvarna 601000747

Lift Lever

$

$

Not available

39

Husqvarna 601000110

Shoulder Bolt, 5/16-18 Thd.

$

$

Not available

40

Husqvarna 601000540

Nut, Hx Wd Fl Lk 5/16-18 Thd.

$

$

Not available

41

Husqvarna 601000115

Clevis Pin

$

$

Not available

42

Husqvarna 601000116

E-Ring

$

$

Not available

43

Husqvarna 601000156

Link

$

$

Not available

44

Husqvarna 601000521

Shoulder Bolt, 5/16-18 Thd.

$

$

Not available

45

Husqvarna 601000547

Washer

$

$

Not available

46

Husqvarna 601000643

Actuator Rod

$

$

Not available

47

Husqvarna 601000642

Spring, Height Adjust

$

$

Not available

48

Husqvarna 601000640

Knob, Height Adjust
(Superseded to 601000947)

$

$

Not available

49

Husqvarna 601000238

Handle, Lift
(Superseded to 601002372)

$

$

Not available

50

Husqvarna 601000126

Pawl, Height Adjust

$

$

Not available

51

Husqvarna 601000159

Tie Rod

$

$

Not available

52

Husqvarna 601000025

Cotter Pin

$

$

Not available

53

Husqvarna 601000716

Bracket, L.H. Front Hanger

$

$

Not available

54

Husqvarna 601000721

Assembly, Front Lift Shaft

$

$

Not available

55

Husqvarna 601000717

Bracket, R.H. Front Hanger

$

$

Not available

56

Husqvarna 601000720

Bracket, Hanger

$

$

Not available

57

Husqvarna 601000722

Assembly, Rear Lift Shaft

$

$

Not available

58

Husqvarna 601000113

Screw, Hx Hd, Tap # 10 x 1/2 In.

$

$

Not available

59

Husqvarna 601000006

Screw, Hx Hd, 5/16-18 x 5/8 In.
(Superseded to 601000073)

$

$

Not available

60

Husqvarna 601000259

Support, Shift Plate

$

$

Not available

61

Husqvarna 601000620

Cover, Seat Spring

$

$

Not available

62

Husqvarna 601000870

Operator's Manual

Note: (Not Illustrated); English

$

$

Not available

63

Husqvarna 601000871

Operator's Manual

Note: (Not Illustrated); French

$

$

Not available

64

Husqvarna 601000872

Part's Manual

Note: (Not Illustrated); English

$

$

Not available
