4140 H - Husqvarna 46" Lawn Tractor (1991-01) Front End/Hood Parts Diagram

46" Lawn Tractor

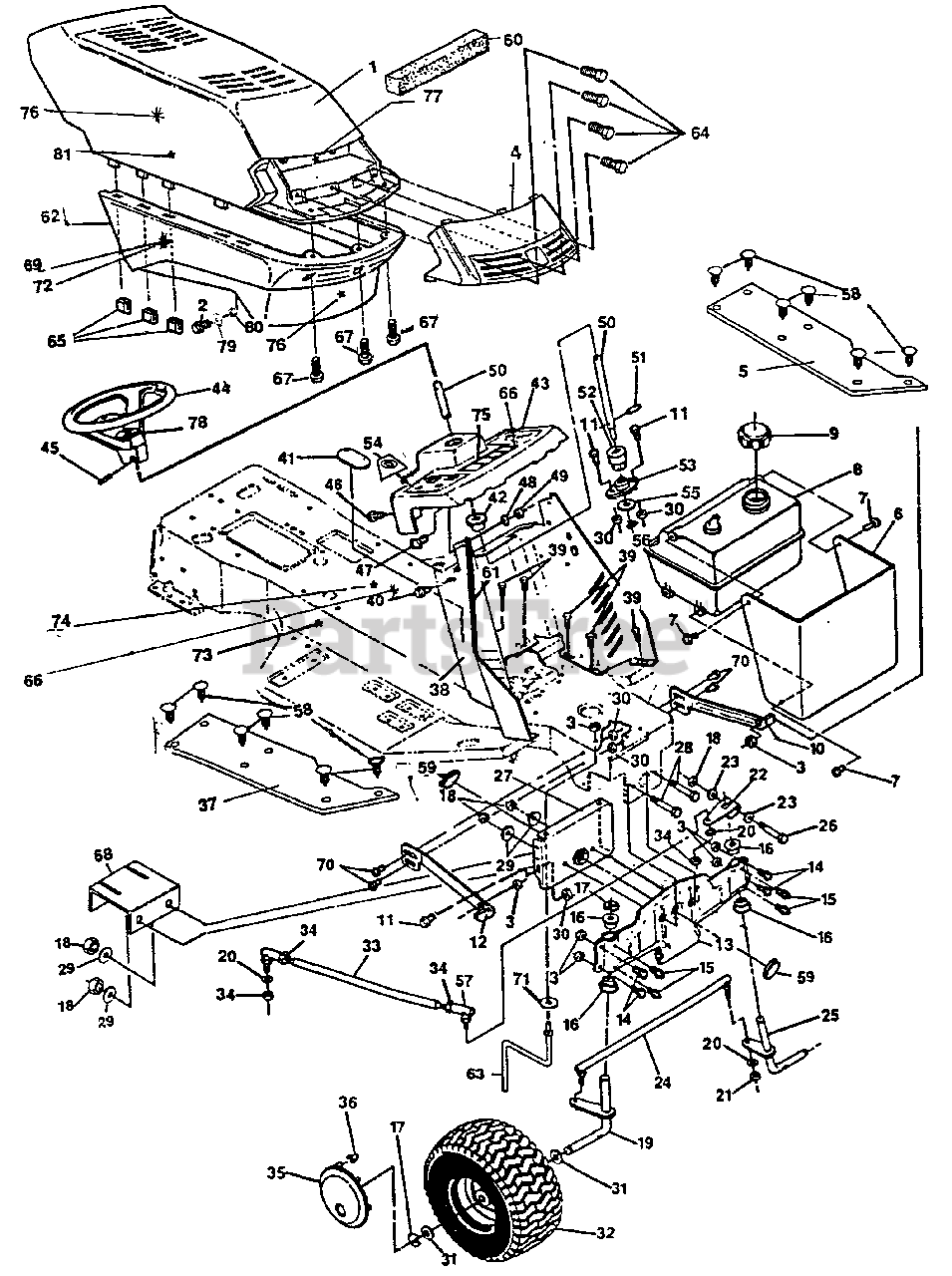

Front End/Hood Parts Diagram

  • Title

$

$

Currently unavailable

2

Husqvarna 25086

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

3

Husqvarna 1498

Nut, Hx, Ctrlk, 5/16-18 Thd.

$

$

Currently unavailable

4

Husqvarna 306858

Lens, Headlight

$

$

Currently unavailable

5

Husqvarna 314885

Assembly, Foot Pad L.H.

$

$

Currently unavailable

6

Husqvarna 307437

Heat Shield

$

$

Currently unavailable

7

Husqvarna 300303

Screw, Hx Hd, Plastite 1/4 x 3/4

$

$

Currently unavailable

8

Husqvarna 305820

Tank, Gas 1.5 W/ Sensor

$

$

Currently unavailable

8

Husqvarna 305804

Low Fuel Sensor

$

$

Currently unavailable

9

Husqvarna 12501

Cap, Fuel

$

$

Currently unavailable

10

Husqvarna 309461

Bracket, Hood L.H.

$

$

Currently unavailable

11

Husqvarna 56030

Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In.

$

$

Currently unavailable

12

Husqvarna 309460

Bracket, Hood R.H.

$

$

Currently unavailable

13

Husqvarna 310670

Front Axle W/Bearings & Spindles

$

$

Currently unavailable

14

Husqvarna 120228

Screw, Hx Hd, 5/16-18 x 5/8 In.

$

$

Currently unavailable

15

Husqvarna 706

Grease Fitting

$

$

Currently unavailable

16

Husqvarna 302303

Bearing, Spindle

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Husqvarna 1499

Nut, Hx, Ctrlk, 3/8-16 Thd.

$

$

Currently unavailable

19

Husqvarna 305340

Spindle, R.H.

$

$

Currently unavailable

20

Husqvarna 120382

Washer, Split, Lock 3/8 In.

$

$

Currently unavailable

21

Husqvarna 120369

Nut, Hx, 3/8-24 Thd.

$

$

Currently unavailable

22

Husqvarna 302306

Steering Arm, Upper

$

$

Currently unavailable

23

Husqvarna 996416

Washer, Flat, 25/64 In.

$

$

Currently unavailable

24

Husqvarna 300328

Assembly, Tie Rod

$

$

Currently unavailable

25

Husqvarna 305339

Spindle, L.H.

$

$

Currently unavailable

26

Husqvarna 180134

Screw, Hx Hd, 3/8-16 x 2-1/2 In.
(Superseded to 532180134)

$

$

Not available

27

Husqvarna 306103

Support Bracket, Front Axle

$

$

Currently unavailable

28

Husqvarna 122207

Screw, Hx Hd, 3/8-16 x 3 In.

$

$

Currently unavailable

29

Husqvarna 2483

Washer, Spring

$

$

Currently unavailable

30

Husqvarna 55273

Nut, Hx, Wd Fl Lk 5/16-18 Thd.

$

$

Currently unavailable

31

Husqvarna 642

Washer, Flat, 3/4 In.

$

$

Currently unavailable

32

Wheel & Tire Assembly, Front

Note: Order Parts Individually

$

$

Not available

$

$

Currently unavailable

32

$

$

Currently unavailable

32

Husqvarna 24167

Valve Stem

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Husqvarna 302907

Drag Link

$

$

Currently unavailable

34

Husqvarna 124925

Nut, Hx, Jam, 3/8-24 Thd.

$

$

Currently unavailable

35

Husqvarna 306569

Hubcap, Front

$

$

Currently unavailable

36

Husqvarna 306669

Clip, Hubcap

$

$

Currently unavailable

37

Husqvarna 314888

Assembly, Foot Pad R.H.

$

$

Currently unavailable

38

Husqvarna 304702

Dash, Lower

$

$

Currently unavailable

39

Husqvarna 45263

Screw, Tap, 5/16-18 x 3/8 In.

$

$

Currently unavailable

40

Husqvarna 995346

Screw, Self-Tap, 1/4-20 x 1/2 In.

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Husqvarna 303228

Bushing, Upper Steering

$

$

Currently unavailable

43

Husqvarna 309199

Dash, Upper

$

$

Currently unavailable

44

Husqvarna 303132

Steering Wheel

$

$

Currently unavailable

45

Husqvarna 456378

Pin, Spring, 1/4 x 2 In.

$

$

Currently unavailable

46

Husqvarna 305850

Screw, Tap, 1/4-20 x 1/2 In.

$

$

Currently unavailable

47

Husqvarna 120854

Screw, Hx Hd, 1/4-20 x 5/8 In.

$

$

Currently unavailable

48

Husqvarna 120392

Washer, Flat, 9/32 In.

$

$

Currently unavailable

49

Husqvarna 1502

Nut, Hx, Ctrlk, 1/4-20 Thd.

$

$

Currently unavailable

50

Husqvarna 302307

Shaft, Steering

$

$

Currently unavailable

51

Husqvarna 302524

Pin, Dowel

$

$

Currently unavailable

52

Husqvarna 302314

Pinion, Steering

$

$

Currently unavailable

53

Husqvarna 302498

Bearing, Flange

$

$

Currently unavailable

54

Husqvarna 309195

Plate, Electric Clutch

$

$

Currently unavailable

55

Husqvarna 2968

Washer, Flat, 1/2 In.

$

$

Not available

56

$

$

Not available

57

Husqvarna 57158

Ball, Joint, 3/8 Thd.

$

$

Currently unavailable

58

Husqvarna 311087

Ratchet Fastener

$

$

Currently unavailable

59

Husqvarna 307112

Plug, Front Axle

$

$

Currently unavailable

60

Husqvarna 308115

Foam, Hood Baffle

$

$

Currently unavailable

61

Husqvarna 47453

Wide Trim 18"

$

$

Currently unavailable

62

$

$

Currently unavailable

63

Husqvarna 300440

Belt Guide

$

$

Currently unavailable

64

Husqvarna 312085

Screw, #4-24 x 1/2 In.

$

$

Currently unavailable

65

Husqvarna 306857

Clip, Tinnerman

$

$

Currently unavailable

66

Husqvarna 313539

Decal, Depress Clutch Brake

$

$

Currently unavailable

67

Husqvarna 300302

Screw, #10 x 1/2 In.

$

$

Currently unavailable

68

Husqvarna 312904

Bracket, Stop

$

$

Currently unavailable

69

Husqvarna 316634

Decal, Pin Stripe R.H.

$

$

Currently unavailable

70

Husqvarna 53652

Screw, Hex Wd Fl, 5/16-18 x 3/4 In.

$

$

Currently unavailable

71

Husqvarna 138538

Washer, Internal Tooth

$

$

Currently unavailable

72

Husqvarna 316635

Decal, Pin Stripe L.H.

$

$

Currently unavailable

73

Husqvarna 311730

Decal, Wheel 4 Steer Husq.

$

$

Currently unavailable

74

Husqvarna 307772

Decal Oper Instr ERO Top Frame

$

$

Currently unavailable

75

Husqvarna 307280

Decal, Dash, Chg, Oil, Fuel All Systems

$

$

Currently unavailable

76

Husqvarna 311724

Decal, Fender Rear, Hood Husq.

$

$

Currently unavailable

77

Husqvarna 310534

Decal, Reflector Ver II Hood

$

$

Currently unavailable

78

Husqvarna 311728

Decal, Gunsight Cent. Steer Whl.

$

$

Currently unavailable

79

Husqvarna 120396

Flat washer

$

$

Currently unavailable

80

Husqvarna 55273

Nut, 5/16-18

$

$

Currently unavailable

81

Husqvarna 316631

Decal, Model #4140H

$

$

Currently unavailable
