4140 H - Husqvarna 46" Lawn Tractor (1991-01) Drive/Engine Parts Diagram

46" Lawn Tractor

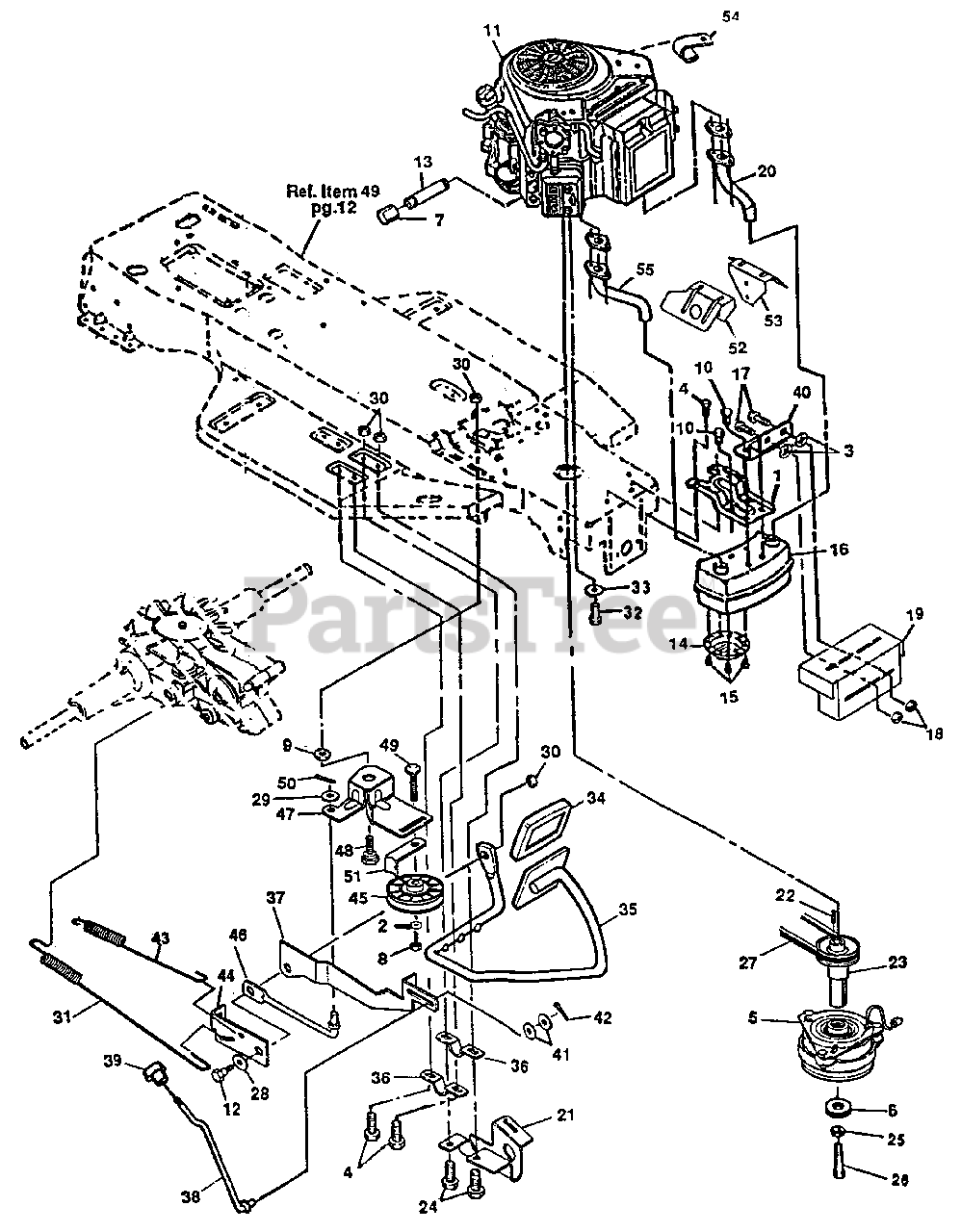

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 306577

Muffler Bracket

$

$

Currently unavailable

2

Husqvarna 120382

Washer, Reg. Split Lock

$

$

Currently unavailable

3

Husqvarna 309436

Pushnut, 5/16 Bolt Retainer

$

$

Currently unavailable

4

Husqvarna 35497

Screw, 5/16-18 x 1/2

$

$

Currently unavailable

5

Husqvarna 308950

Electric Clutch

$

$

Currently unavailable

6

Husqvarna 302879

Bearing, Sleeve Sector Gear

$

$

Currently unavailable

7

Husqvarna 47828

Pipe Cap

$

$

Currently unavailable

8

Husqvarna 120377

Nut, 3/8-16 Thd.

$

$

Currently unavailable

9

Husqvarna 45602

Flatwasher, .333 x .87 x .119

$

$

Currently unavailable

10

Husqvarna 995338

Screw, 1/4-20 x 5/9 In.

$

$

Currently unavailable

11

ENGINE

$

$

Not available

12

Husqvarna 310087

Bolt, Shoulder 5/16-18

$

$

Currently unavailable

13

Husqvarna 307174

Nipple, 3/8-18

$

$

Currently unavailable

14

Husqvarna 56472

Deflector Side Out

$

$

Currently unavailable

15

Husqvarna 35287

Screw, #8-32 x .3/8

$

$

Currently unavailable

16

Husqvarna 305553

Muffler

$

$

Currently unavailable

17

Husqvarna 126211

Bolt, 5/16-18x5/8

$

$

Currently unavailable

18

Husqvarna 55273

Nut, 5/16-18

$

$

Currently unavailable

19

Husqvarna 308144

Heat Shield

$

$

Currently unavailable

20

Husqvarna 305555

Tube, Muffler Exhaust, L.H.

$

$

Currently unavailable

21

Husqvarna 308340

Bracket, Front Hanger

$

$

Currently unavailable

22

Husqvarna 305562

Key, Square

$

$

Currently unavailable

23

Husqvarna 309388

Engine Pulley Assembly

$

$

Currently unavailable

24

Husqvarna 122007

Screw, 5/16-18 x 3/4 In.

$

$

Currently unavailable

25

Husqvarna 120383

Lockwasher, .459 x .78 x .12

$

$

Currently unavailable

26

Husqvarna 215649

Screw, 7/16-20 x 51/2 In.

$

$

Currently unavailable

27

Husqvarna 910275

Hydro Traction Belt

$

$

Currently unavailable

28

Husqvarna 30289

Wave Washer

$

$

Currently unavailable

29

Husqvarna 120394

Flatwasher, .406 x .81 x .06

$

$

Currently unavailable

30

Husqvarna 1498

Nut, 5/16-18

$

$

Currently unavailable

31

Husqvarna 309935

Spring, Hydro Brake

$

$

Currently unavailable

32

Husqvarna 50947

Screw, 7/16-20 x 51/2 In.

$

$

Currently unavailable

33

Husqvarna 138489

External Lockwasher

$

$

Currently unavailable

34

Husqvarna 304490

Clutch Brake Pad

$

$

Currently unavailable

35

Husqvarna 310258

Clutch Brake Weld Assy.

$

$

Currently unavailable

36

Husqvarna 313271

Clutch Brake Arm Bracket

$

$

Currently unavailable

37

Husqvarna 310260

Park Brake Lever

$

$

Currently unavailable

38

Husqvarna 304217

Parking Brake Rod

$

$

Currently unavailable

39

Husqvarna 304367

Knob, Parking Brake

$

$

Currently unavailable

40

Husqvarna 9796

Transaxle Brkt.

$

$

Currently unavailable

41

Husqvarna 120385

Flatwasher, .250 x .56 x .04

$

$

Currently unavailable

42

Husqvarna 121223

Cotter Pin

$

$

Currently unavailable

43

Husqvarna 313660

Electric Clutch Spring

$

$

Currently unavailable

44

Husqvarna 310259

Bracket-Brake, Neutral

$

$

Currently unavailable

45

Husqvarna 303031

Idler Pulley

$

$

Currently unavailable

46

Husqvarna 314738

Clutch Rod

$

$

Currently unavailable

47

Husqvarna 314786

Idler Arm

$

$

Currently unavailable

48

Husqvarna 310269

Bolt, Shoulder, 5/16-18

$

$

Currently unavailable

49

Husqvarna 45892

Screw, 3/8-16 x 1-1/2 In.

$

$

Currently unavailable

50

Husqvarna 36368

Cotter Pin

$

$

Currently unavailable

51

Husqvarna 39659

Retainer Belt

$

$

Currently unavailable

52

Husqvarna 313044

Air Deflector

$

$

Currently unavailable

53

Husqvarna 313043

Air Deflector

$

$

Currently unavailable

54

Husqvarna 57569

Wire Retainer

$

$

Currently unavailable

55

Husqvarna 305554

Tube, Muffler Exhaust R.H.

$

$

Currently unavailable
