4140 H - Husqvarna 46" Lawn Tractor (1991-01) Chassis/Seat Parts Diagram

46" Lawn Tractor

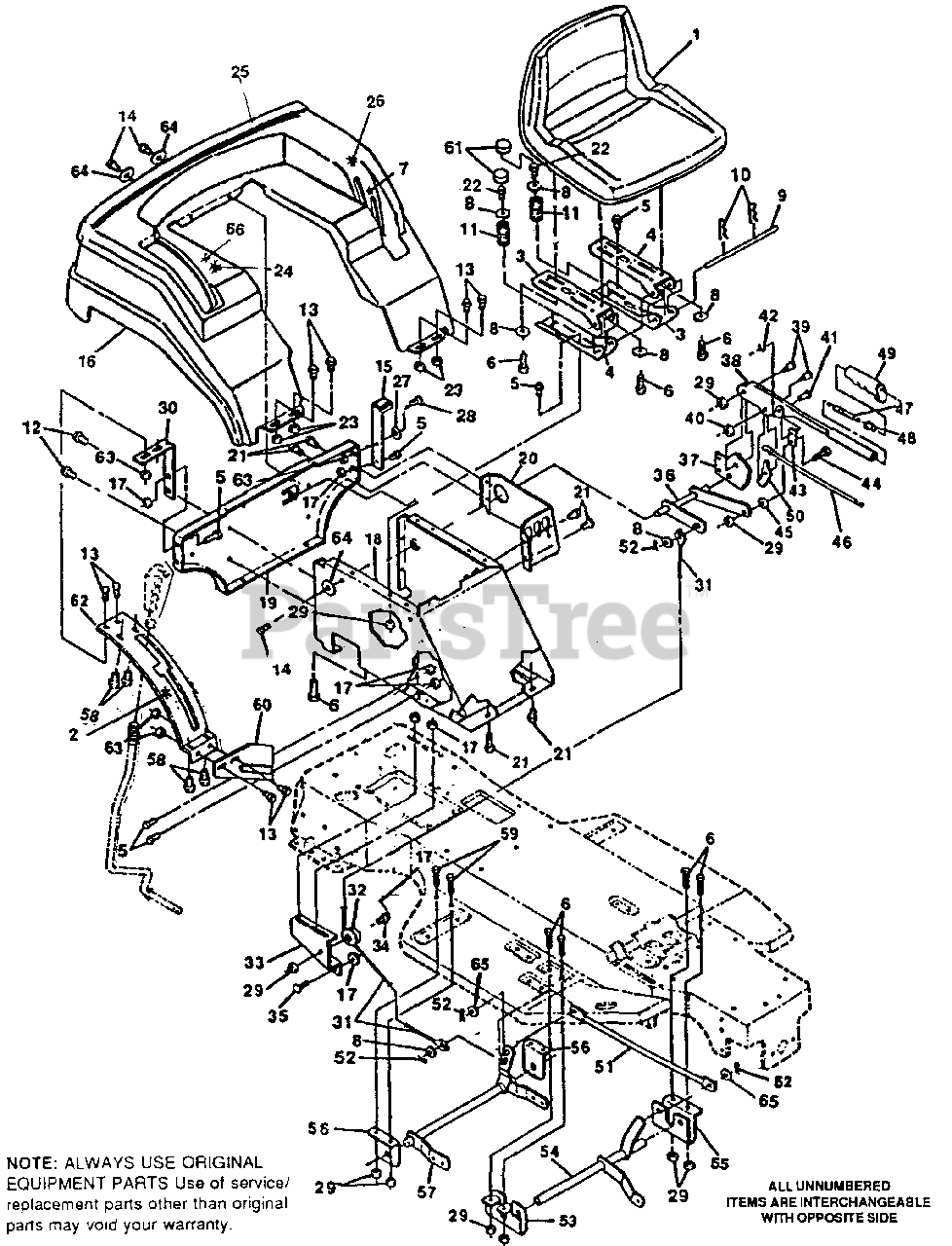

Chassis/Seat Parts Diagram

  • Title

1

Husqvarna 310384

Seat

$

$

Currently unavailable

2

Husqvarna 310609

Decal, Hydro

$

$

Currently unavailable

3

Husqvarna 305991

Channel, Seat

$

$

Currently unavailable

4

Husqvarna 304480

Channel, Seat

$

$

Currently unavailable

5

Husqvarna 56030

Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In.

$

$

Currently unavailable

6

Husqvarna 122007

Screw, Hx Hd, 5/16-18 x 3/4 In.

$

$

Currently unavailable

7

Husqvarna 311591

Decal, Deck Height

$

$

Currently unavailable

8

Husqvarna 120393

Washer, Flat, 11/32 In.

$

$

Currently unavailable

9

Husqvarna 304481

Rod, Seat Support

$

$

Currently unavailable

10

Husqvarna 36368

Hair Pin, .073 Dia. x 1.13 In.

$

$

Currently unavailable

11

Husqvarna 305520

Seat Spring

$

$

Currently unavailable

12

Husqvarna 50634

Screw, Tap, 5/16-18 x 7/8 In.

$

$

Currently unavailable

13

Husqvarna 180018

Screw, Hx Hd, 1/4-20 x 5/8 In.

$

$

Not available

14

Husqvarna 995338

Screw, Hx, Wsher Hd, Tap 1/4-20 x 5/8 In.

$

$

Currently unavailable

15

Husqvarna 306397

Fender Support, L.H.

$

$

Currently unavailable

16

Husqvarna 316329

Fender

$

$

Currently unavailable

17

Husqvarna 55273

Nut, Hx, Wd Fl, Lk 5/16-18 Thd.

$

$

Currently unavailable

18

Husqvarna 304475

Seat Support

$

$

Currently unavailable

19

Husqvarna 304476

Support, Fender & Seat

$

$

Currently unavailable

20

Husqvarna 302208

Bracket, Support Engage

$

$

Currently unavailable

21

Husqvarna 35497

Screw, Hx Wshr Hd Tap, 5/16-18 x 1/2 In.

$

$

Currently unavailable

22

Husqvarna 451815

Screw, 5/16-18 x .63

$

$

Currently unavailable

23

Husqvarna 1502

Nut, Lock, 1/4-20 Thd.

$

$

Currently unavailable

24

Husqvarna 313039

Decal, Patent Pending 4WS

$

$

Currently unavailable

25

Husqvarna 316628

Decal, Hydrostatic

$

$

Currently unavailable

26

Husqvarna 313538

Decal, Relief Valve Operation

$

$

Currently unavailable

27

Husqvarna 120385

Washer, Flat

$

$

Currently unavailable

28

Husqvarna 180020

Screw, 1/4-20 x .75
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

29

Husqvarna 1498

Nut, Hx Ctrlk, 5/16-18 Thd.

$

$

Currently unavailable

30

Husqvarna 306399

Fender Support, R.H.

$

$

Currently unavailable

31

Husqvarna 303227

Cable, Deck Lift

$

$

Currently unavailable

32

Husqvarna 48306

Pulley

$

$

Not available

33

Husqvarna 303230

Assembly, Pulley Bracket

$

$

Currently unavailable

34

Husqvarna 305522

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

35

Husqvarna 126211

Bolt, Carriage, 5/16-18 x 5/8 In.

$

$

Currently unavailable

36

Husqvarna 302205

Assembly, Upper Shaft

$

$

Currently unavailable

37

Husqvarna 302383

Quadrant

$

$

Currently unavailable

38

Husqvarna 9143

Lift Lever

$

$

Currently unavailable

39

Husqvarna 300171

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

40

Husqvarna 44108

Nut, Hx Wd Fl Lk 5/16-18 Thd.

$

$

Currently unavailable

41

Husqvarna 300310

Clevis Pin

$

$

Currently unavailable

42

Husqvarna 300311

E-Ring

$

$

Currently unavailable

43

Husqvarna 302357

Link

$

$

Currently unavailable

44

Husqvarna 36149

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

45

Husqvarna 45602

Washer

$

$

Currently unavailable

46

Husqvarna 58330

Actuator Rod

$

$

Currently unavailable

47

Husqvarna 58326

Spring, Height Adjust

$

$

Currently unavailable

48

Husqvarna 58325

Knob, Height Adjust

$

$

Currently unavailable

49

Husqvarna 304730

Handle, Lift

$

$

Currently unavailable

50

Husqvarna 301239

Pawl, Height Adjust

$

$

Currently unavailable

51

Husqvarna 302380

Tie Rod

$

$

Currently unavailable

52

Husqvarna 121222

Cotter Pin

$

$

Currently unavailable

53

Husqvarna 308339

Bracket, L.H. Front Hanger

$

$

Currently unavailable

54

Husqvarna 308345

Assembly, Front Lift Shaft

$

$

Currently unavailable

55

Husqvarna 308340

Bracket, R.H. Front Hanger

$

$

Currently unavailable

56

Husqvarna 308343

Bracket, Hanger

$

$

Currently unavailable

57

Husqvarna 308955

Assembly, Rear Lift Shaft

$

$

Currently unavailable

58

Husqvarna 300302

Screw, Hx Hd, Tap # 10 x 1/2 In.

$

$

Currently unavailable

59

Husqvarna 120228

Screw, Hx Hd, 5/16-18 x 5/8 In.

$

$

Currently unavailable

60

Husqvarna 306401

Support, Shift Plate

$

$

Currently unavailable

61

Husqvarna 56907

Cover, Seat Spring

$

$

Currently unavailable

62

Husqvarna 315849

Quadrant

$

$

Currently unavailable

63

Husqvarna 51335

Nut, Hx, Wd Fl Lk, 1/4-20 Thd.

$

$

Currently unavailable

64

Husqvarna 1084

Washer, Flat, .281 x 1.00 x .063

$

$

Currently unavailable

65

Husqvarna 274517

Washer, Flat, 13/32 In.

$

$

Currently unavailable

66

Husqvarna 316700

Decal, Husqvarna U.S.A 4140H

$

$

Currently unavailable

67

Husqvarna 316938

Operator's Manual English

Note: (Not Illustrated)

$

$

Currently unavailable

68

Husqvarna 316939

Operator's Manual French

Note: (Not Illustrated)

$

$

Currently unavailable

69

Husqvarna 316834

Part's Manual English

Note: (Not Illustrated)

$

$

Currently unavailable
