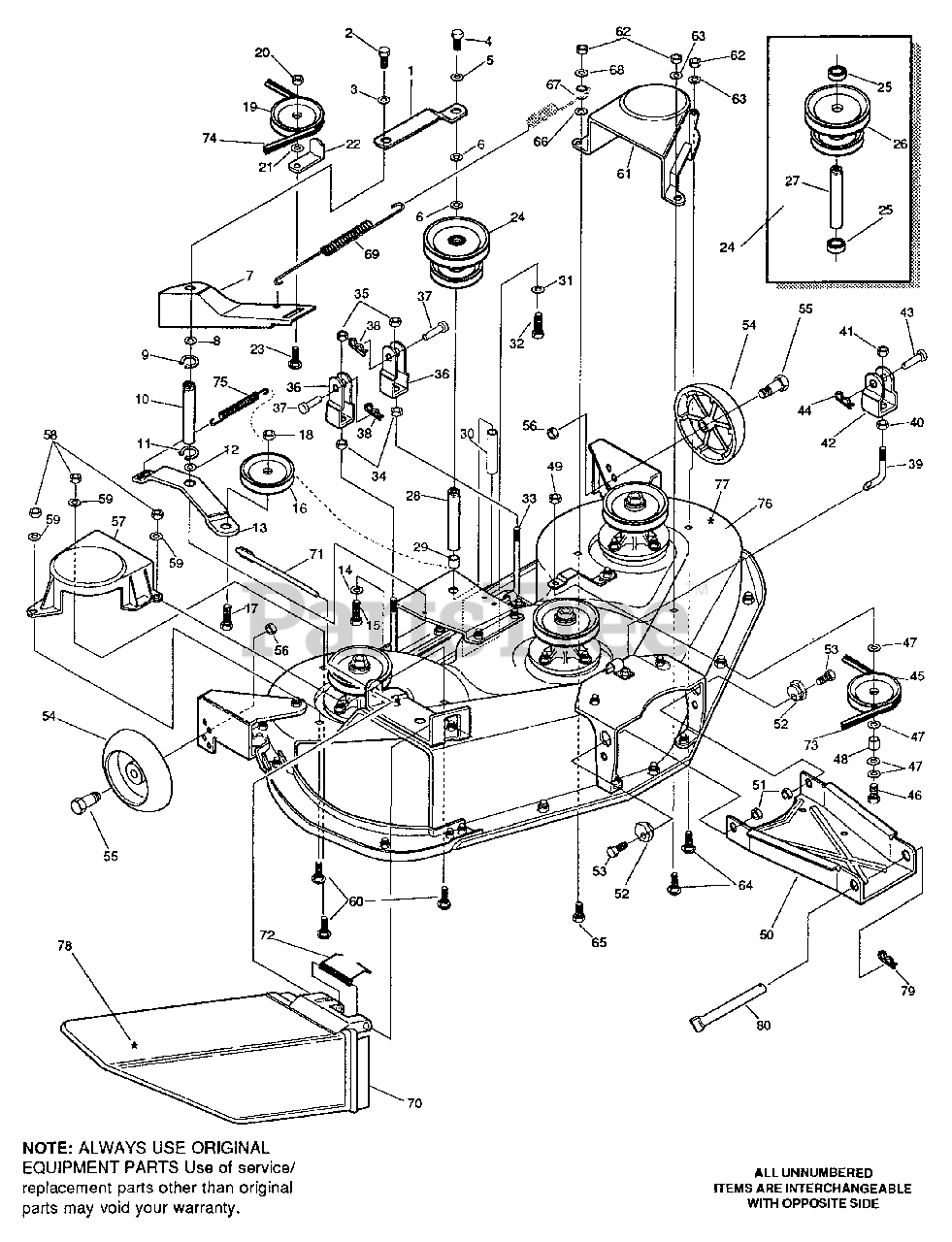

4140 G - Husqvarna 46" Lawn Tractor (1991-01) Mower Deck (A) Parts Diagram

46" Lawn Tractor

Mower Deck (A) Parts Diagram

  • Title

1

Husqvarna 306845

Bracket, Jackshaft

$

$

Currently unavailable

2

Husqvarna 181596

Screw, 5/16-24 x .88 HHC
(Superseded to 583114501)

$122.99

$

Usually ships in 3-10 days

0

3

Husqvarna 120638

Washer, Splitlock, .328 x .60 x .11

$

$

Currently unavailable

4

Husqvarna 39573

Screw, 3/8-24 x 1.00 Nylon

$

$

Currently unavailable

5

Husqvarna 120382

Washer, Splitlock

$

$

Currently unavailable

6

Husqvarna 2483

Washer, .391 x 2.25D x .07

$

$

Currently unavailable

7

Husqvarna 309230

Bracket, Idler

$

$

Currently unavailable

8

Husqvarna 40677

Washer, Flat .640 x 1.25 x .06

$

$

Currently unavailable

9

Husqvarna 302270

Ring, Retaining

$

$

Currently unavailable

10

Husqvarna 302272

Idler Shaft

$

$

Currently unavailable

11

Husqvarna 302270

Ring, Retaining

$

$

Currently unavailable

12

Husqvarna 40677

Washer, Flat .640 x 1.25 x .06

$

$

Currently unavailable

13

Husqvarna 306847

Bracket, Idler

$

$

Currently unavailable

14

Husqvarna 120638

Washer, Splitlock, .328 x .60 x .11

$

$

Currently unavailable

15

Husqvarna 181596

Screw, 5/16-24 x .88
(Superseded to 583114501)

$122.99

$

Usually ships in 3-10 days

0

16

Husqvarna 303030

Pulley, Idler

$

$

Currently unavailable

17

Husqvarna 122168

Screw, 3/8-16 x 1-3/4 In.

$

$

Currently unavailable

18

Husqvarna 1499

Nut, 3/8-16 Centerlock

$

$

Currently unavailable

19

Husqvarna 310326

Pulley, Idler

$

$

Currently unavailable

20

Husqvarna 120377

Nut, Hex, Ctrlk, 3/8-16 Thd.

$

$

Currently unavailable

21

Husqvarna 996416

Washer, Flat .391 x 1.00 x .125

$

$

Currently unavailable

22

Husqvarna 300844

Belt Retainer

$

$

Currently unavailable

23

Husqvarna 57325

Bolt, 3/8-16 x 2.00 Carriage

$

$

Currently unavailable

24

Husqvarna 309107

Shaft, Assy. Jack

$

$

Currently unavailable

25

Husqvarna 49562

Bearing, Ball

$

$

Currently unavailable

26

Husqvarna 302142

Pulley, Assy.

$

$

Currently unavailable

27

Husqvarna 302147

Spacer Tube

$

$

Currently unavailable

28

Husqvarna 302242

Jackshaft

$

$

Currently unavailable

29

Husqvarna 302278

Spacer Tubing, 46" Deck

$

$

Currently unavailable

30

Husqvarna 312270

Spacer Tube 46" Deck

$

$

Currently unavailable

31

Husqvarna 39573

Washer, Splitlock, .393 x .68 x .10

$

$

Currently unavailable

32

Husqvarna 71015

Screw, 3/8-24 x 1 In.

$

$

Currently unavailable

33

Husqvarna 302644

Rod, Lift 46" Deck Long

$

$

Currently unavailable

34

Husqvarna 120238

Nut, 1/2-13 Hex Jam

$

$

Currently unavailable

35

Husqvarna 109527

Nut, 1/2-13 Square

$

$

Currently unavailable

36

Husqvarna 304443

Clevis

$

$

Currently unavailable

37

Husqvarna 300317

Clevis Pin

$

$

Currently unavailable

38

Husqvarna 56180

Hair Pin

$

$

Currently unavailable

39

Husqvarna 302899

Rod, Lift Front Short

$

$

Currently unavailable

40

Husqvarna 120238

Nut, 1/2-13 Jam

$

$

Currently unavailable

41

Husqvarna 109527

Nut, 1/2-13 Square

$

$

Currently unavailable

42

Husqvarna 304443

Clevis

$

$

Currently unavailable

43

Husqvarna 300317

Clevis Pin

$

$

Currently unavailable

44

Husqvarna 56180

Hair Pin

$

$

Currently unavailable

45

Husqvarna 303030

Idler Pulley

$

$

Currently unavailable

46

Husqvarna 122194

Screw, 3/8-16 x 2.50

$

$

Currently unavailable

47

Husqvarna 996416

Washer, Flat

$

$

Currently unavailable

48

Husqvarna 305309

Spacer

$

$

Currently unavailable

49

Husqvarna 1499

Nut, 3/8-16 Centerlock

$

$

Currently unavailable

50

Husqvarna 311941

Channel Drawbar

$

$

Currently unavailable

51

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

52

Husqvarna 58247

Adjusting Nut

$

$

Currently unavailable

53

Husqvarna 122017

Screw, 5/16-18 x 1.00 In.

$

$

Currently unavailable

54

Husqvarna 302611

Wheel

$

$

Currently unavailable

55

Husqvarna 23763

Shoulder Bolt, 3/8-16

$

$

Currently unavailable

56

Husqvarna 1499

Nut, 3/8-16 Centerlock

$

$

Currently unavailable

57

Husqvarna 304817

Guard, Belt R.H.

$

$

Currently unavailable

58

Husqvarna 1502

Nut, 1/4-20 Centerlock

$

$

Currently unavailable

59

Husqvarna 120392

Washer, Flat

$

$

Currently unavailable

60

Husqvarna 36602

Carriage Bolt, 1/4-20 x 5/8 In.

$

$

Currently unavailable

61

Husqvarna 304792

Cover, Belt LH

$

$

Currently unavailable

62

Husqvarna 1502

Nut, 1/4-20 Centerlock

$

$

Currently unavailable

63

Husqvarna 120392

Washer, Flat

$

$

Currently unavailable

64

Husqvarna 36602

Carriage Bolt, 1/4-20 x 5/8 In.

$

$

Currently unavailable

65

Husqvarna 180024

Screw, 1/4-20 x 1.25 HHC

$

$

Currently unavailable

66

Husqvarna 120392

Washer, Flat

$

$

Currently unavailable

67

Husqvarna 50520

Spacer

$

$

Currently unavailable

68

Husqvarna 54569

Flatwasher

$

$

Currently unavailable

69

Husqvarna 309253

Spring

$

$

Currently unavailable

70

Husqvarna 311831

Chute

$

$

Currently unavailable

71

Husqvarna 305251

Rod, Pivot

$

$

Currently unavailable

72

Husqvarna 314975

Torsion Spring

$

$

Currently unavailable

73

Husqvarna 302290

Belt, V 4L

$

$

Currently unavailable

74

Husqvarna 302291

Belt, V 5L 63.70

$

$

Currently unavailable

75

Husqvarna 301464

Tension Spring

$

$

Currently unavailable

76

Husqvarna 315806

Deck, Mower Assy.

$

$

Currently unavailable

77

Husqvarna 68249

Decal, No Step

$

$

Currently unavailable

78

Husqvarna 68547

Decal, Cut Hand

$

$

Currently unavailable

79

Husqvarna 56180

Hair Pin

$

$

Currently unavailable

80

Husqvarna 302963

Rod, Draw Bar

$

$

Currently unavailable
