4140 G - Husqvarna 46" Lawn Tractor (1991-01) Electrical Parts Diagram

46" Lawn Tractor

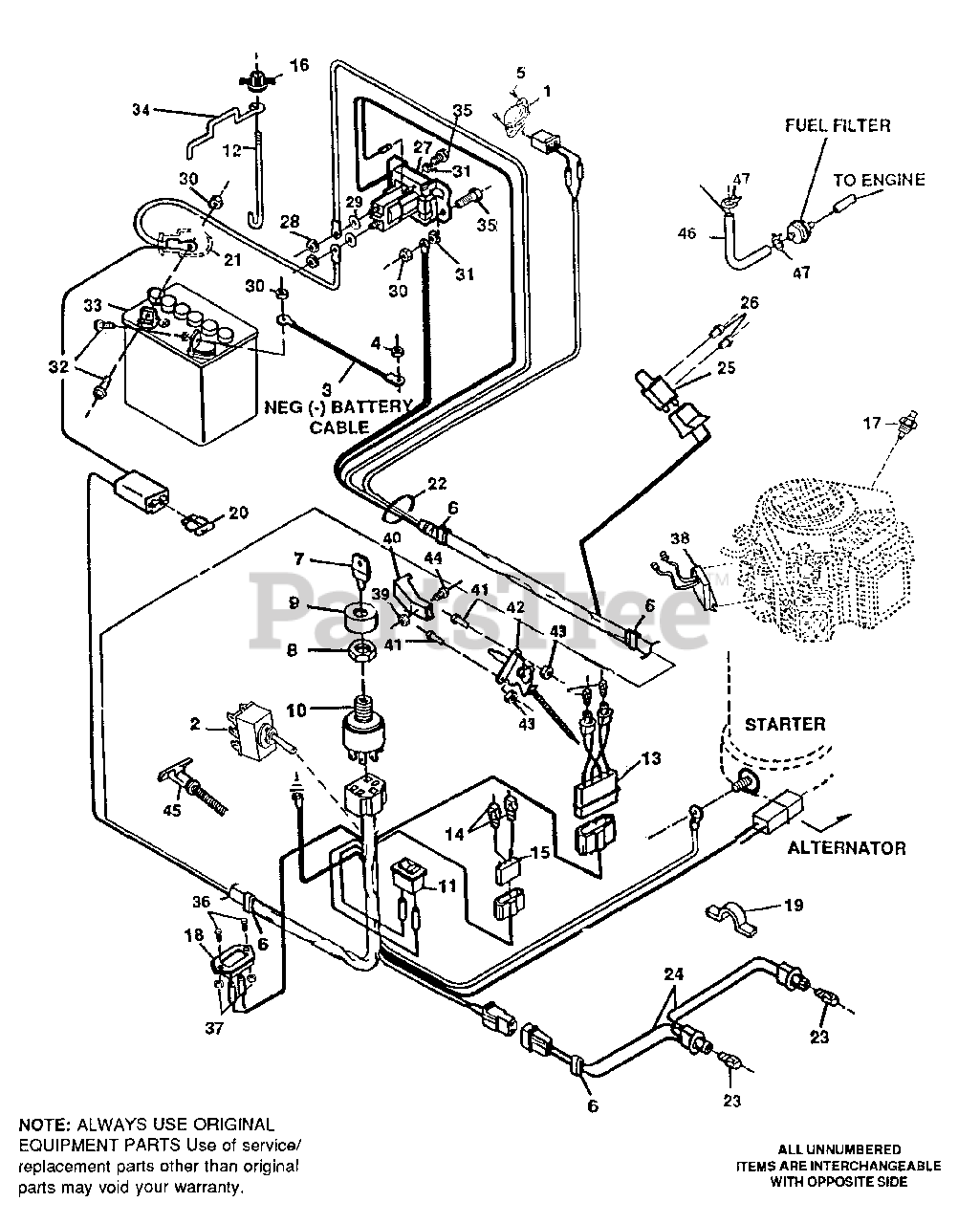

Electrical Parts Diagram

  • Title

1

Husqvarna 57547

Seat Switch

$

$

Currently unavailable

2

Husqvarna 309285

Switch, Elec./Clutch Actuator

$

$

Currently unavailable

3

Husqvarna 55511

Cable, Battery, Negative

$

$

Currently unavailable

4

Husqvarna 271184

Nut, Hx, Keps, 5/16-18 Thd.

$

$

Currently unavailable

5

Husqvarna 160505

Screw, 1 /4-20 x .38

$

$

Currently unavailable

6

Husqvarna 57444

Tie Cable

$

$

Currently unavailable

7

Husqvarna 300626

Key, Ignition Switch

$

$

Currently unavailable

8

Husqvarna 300193

Nut, Switch

$

$

Currently unavailable

9

Husqvarna 300194

Boot, Switch

$

$

Currently unavailable

10

Husqvarna 305720

Switch, Ignition

$

$

Currently unavailable

11

Husqvarna 300334

Switch, Light

$

$

Currently unavailable

12

Husqvarna 57551

Rod, Battery Hold-Down

$

$

Currently unavailable

13

Husqvarna 305701

Lamp Holder,Low Fuel and Oil Pressure

$

$

Currently unavailable

14

Husqvarna 57769

Bulb,lndicator

$

$

Currently unavailable

15

Husqvarna 305702

Lamp Holder,All Systems Go and Charge

$

$

Currently unavailable

16

Husqvarna 310067

Wingnut

$

$

Currently unavailable

17

Husqvarna 314797

Oil Sensor

$

$

Currently unavailable

18

Husqvarna 304739

Minature Hour Meter

$

$

Currently unavailable

19

Husqvarna 41482

Press Clip

$

$

Currently unavailable

20

Husqvarna 302031

Fuse, 15A-32V, Spade Type

$

$

Currently unavailable

21

Husqvarna 308201

Boot, Rubber (Battery Cable)

$

$

Currently unavailable

22

Husqvarna 315695

Wire Harness

$

$

Currently unavailable

23

Husqvarna 52572

Bulb Headlamp

$

$

Currently unavailable

24

Husqvarna 303064

Assembly, Light Wire

$

$

Currently unavailable

25

Husqvarna 57211

Switch

$

$

Currently unavailable

26

Husqvarna 57220

Screw, Pn Hd, Tap #12 x 1/2 In.

$

$

Currently unavailable

27

Husqvarna 310966

Solenoid

$

$

Currently unavailable

28

Husqvarna 120368

Nut, Hx 5/16-24 Thd.

$

$

Currently unavailable

29

Husqvarna 138485

Washer, Lock 5/16 In.

$

$

Currently unavailable

30

Husqvarna 271172

Nut, Hx, Keps, 1/4-20 Thd.

$

$

Currently unavailable

31

Husqvarna 1502

Nut, Hx, Ctrlk, 1/4-20 Thd.

$

$

Currently unavailable

32

Husqvarna 120854

Screw, 1/4-20 x 5/8 In.

$

$

Currently unavailable

33

Husqvarna 306694

Battery

$

$

Currently unavailable

34

Husqvarna 302912

Bracket, Battery Hold-Down

$

$

Currently unavailable

35

Husqvarna 187745

Screw, 1/4-20 x 3/4 In.

$

$

Currently unavailable

36

Husqvarna 308347

Screw, #6-32 x .50

$

$

Currently unavailable

37

Husqvarna 271482

Nut, Hx Keps 6-32

$

$

Currently unavailable

38

Husqvarna 315602

Regulator, Sen. Volt BS with Sensor

$

$

Currently unavailable

39

Husqvarna 120622

Nut, Hex. #8-32 Thd.

$

$

Currently unavailable

40

Husqvarna 304439

Knob, Throttle Control

$

$

Currently unavailable

41

Husqvarna 159943

Screw #10-24 x 5/8

$

$

Currently unavailable

42

Husqvarna 307362

Throttle Control

$

$

Currently unavailable

43

Husqvarna 308459

Nut, Hex, Nylon Lock #8-32 x 3/8 In.

$

$

Currently unavailable

44

Husqvarna 159585

Screw,Ph, Pn, #8-32 x 3/8 In.

$

$

Currently unavailable

45

Husqvarna 307113

Choke Control

$

$

Currently unavailable

46

Husqvarna 47452

Gas Line

$

$

Currently unavailable

47

Husqvarna 47345

Clamp, Gas Line

$

$

Currently unavailable
