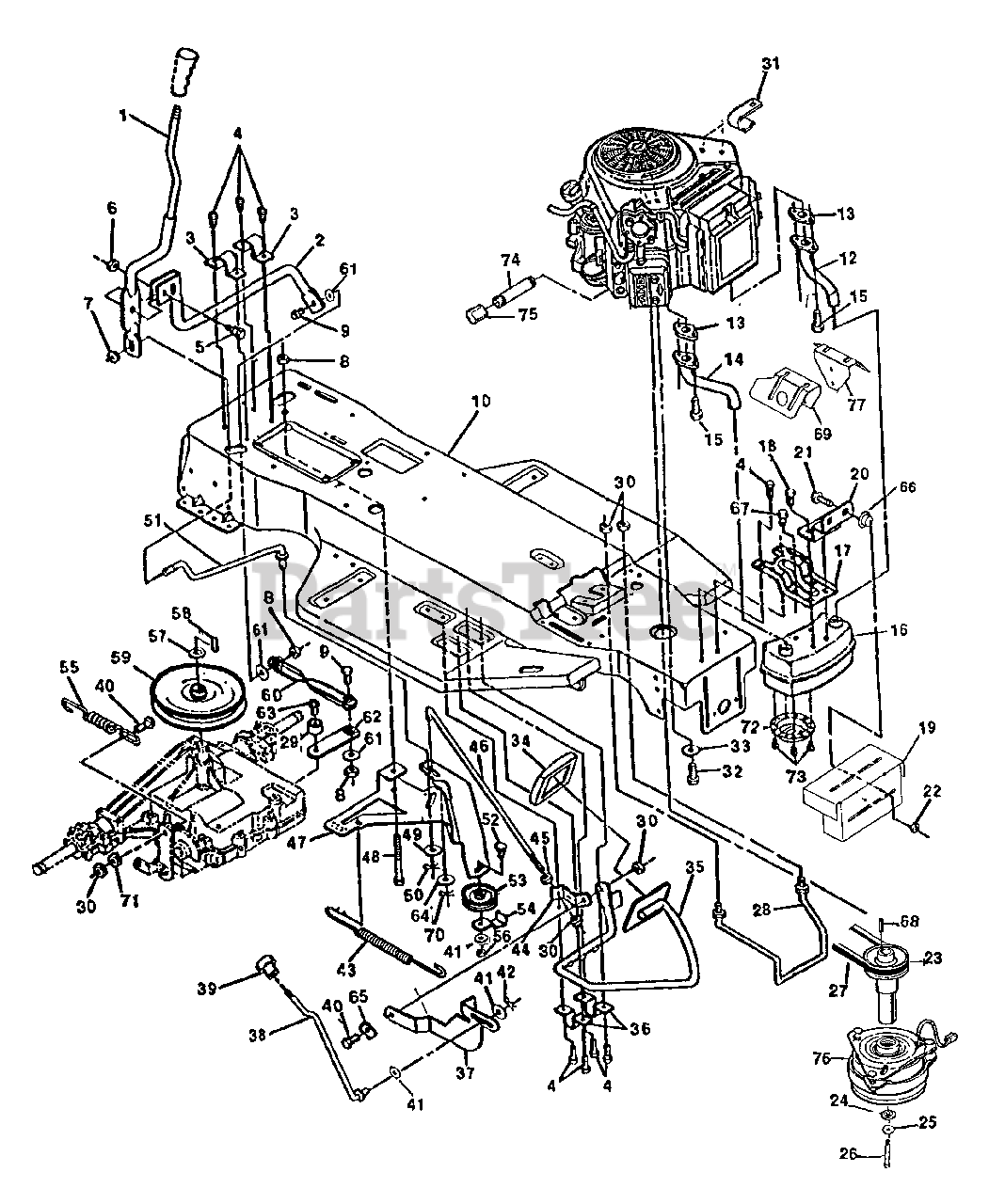

4140 G - Husqvarna 46" Lawn Tractor (1991-01) Drive/Engine Parts Diagram

46" Lawn Tractor

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 304406

Tube Assembly, Shift Pivot

$

$

Currently unavailable

2

Husqvarna 304024

Tube Assembly, Shift

$

$

Currently unavailable

3

Husqvarna 302538

Clip, Shift Lever

$

$

Currently unavailable

4

Husqvarna 35497

Screw, Hx Hd, Wshr Tap, 5/16-18 x 1/2 In.

$

$

Currently unavailable

5

Husqvarna 304086

Shoulder Bolt

$

$

Currently unavailable

6

Husqvarna 1502

Nut, Hx, Ctrlk, 1/4-20 Thd.

$

$

Currently unavailable

7

Husqvarna 71046

Nut, Hx, Nylon, Lock 3/8-16 Thd.

$

$

Currently unavailable

8

Husqvarna 1499

Nut, Hx, Ctrlk, 3/8-16 Thd.

$

$

Currently unavailable

9

Husqvarna 122145

Screw, 3/8-16 x 1-1/4 In.

$

$

Currently unavailable

10

Husqvarna 315823

Main Frame

$

$

Currently unavailable

11

Engine 14 Horsepower B&S

$

$

Not available

12

Husqvarna 305555

Exhaust Tube, L.H.

$

$

Currently unavailable

13

Gasket, Muffler (Engine Part)

$

$

Not available

14

Husqvarna 305554

Exhaust Tube, R.H.

$

$

Currently unavailable

15

Screw, Sem, Engine Part

$

$

Not available

16

Husqvarna 305553

Muffler

$

$

Currently unavailable

17

Husqvarna 306577

Bracket Muffler

$

$

Currently unavailable

18

Husqvarna 995346

Screw, Hx Hd, Tap 1/4-20 X 1/2 In.

$

$

Currently unavailable

19

Husqvarna 308144

Heat Shield, Muffler

$

$

Currently unavailable

20

Husqvarna 9796

Bracket, Transaxle

$

$

Currently unavailable

21

Husqvarna 126211

Bolt, Carriage, 5/16-18 X 5/8 In.

$

$

Currently unavailable

22

Husqvarna 55273

Nut, Hx, Wd Fl, Lk 5/16-18 Thd.

$

$

Currently unavailable

23

Husqvarna 309388

Pulley Assembly, Engine

$

$

Currently unavailable

24

Husqvarna 302879

Bearing, Sleeve Sector Gear

$

$

Currently unavailable

25

Husqvarna 120383

Washer, Split, Lock 7/8 In.

$

$

Currently unavailable

26

Husqvarna 215649

Screw, Hx Hd, 7/16-20 X 5-1/2 In.

$

$

Currently unavailable

27

Husqvarna 303241

V-Belt, 90 In. Long

$

$

Currently unavailable

28

Husqvarna 310162

Belt Guide

$

$

Currently unavailable

29

Husqvarna 57157

Washer, Special

$

$

Currently unavailable

30

Husqvarna 1498

Nut, Hex, Ctrlk, 5/16-18 Thd.

$

$

Currently unavailable

31

Husqvarna 57569

Cable Clip

$

$

Currently unavailable

32

Husqvarna 50947

Screw, Hx Hd Tap, 3/8-16 X 1-1/4 In.

$

$

Currently unavailable

33

Husqvarna 138489

Washer, 3/8 In.

$

$

Currently unavailable

34

Husqvarna 304490

Pad, Clutch/Brake, Molded

$

$

Currently unavailable

35

Husqvarna 306083

Assembly, Clutch/Brake Arm

$

$

Currently unavailable

36

Husqvarna 313271

Bracket, Clutch/Brake Arm

$

$

Currently unavailable

37

Husqvarna 304208

Lever, Park Brake

$

$

Currently unavailable

38

Husqvarna 304217

Rod, Parking Brake

$

$

Currently unavailable

39

Husqvarna 304367

Knob, Park Brake

$

$

Currently unavailable

40

Husqvarna 25086

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

41

Husqvarna 120385

Washer, 9/16 In.

$

$

Currently unavailable

42

Husqvarna 121223

Cotter Pin

$

$

Currently unavailable

43

Husqvarna 304209

Spring, Clutch

$

$

Currently unavailable

44

Husqvarna 304125

Bracket, Brake Rod

$

$

Currently unavailable

45

Husqvarna 271184

Nut, Hx, Keps, 5/16-18 Thd.

$

$

Currently unavailable

46

Husqvarna 304212

Rod, Clutch

$

$

Currently unavailable

47

Husqvarna 304049

Arm, Idler

$

$

Currently unavailable

48

Husqvarna 51189

Shoulder Bolt, 3/8-16 Thd.

$

$

Currently unavailable

49

Husqvarna 274517

Washer, Flat, 13/32 In.

$

$

Currently unavailable

50

Husqvarna 36368

Hairpin

$

$

Currently unavailable

51

Husqvarna 304083

Rod, Shift-On-The-Go

$

$

Currently unavailable

52

Husqvarna 57325

Carriage Bolt, 3/8-16 x 2 In.

$

$

Currently unavailable

53

Husqvarna 40223

Idler Sheave, Backside

$

$

Currently unavailable

54

Husqvarna 304105

Belt Retainer

$

$

Currently unavailable

55

Husqvarna 304130

Spring, Brake

$

$

Currently unavailable

56

Husqvarna 45171

Nut, Flange, 3/8-16 Thd

$

$

Currently unavailable

57

Husqvarna 22053

Retaining Ring

$

$

Currently unavailable

58

Husqvarna 3021

Key, Woodruff, #606

$

$

Currently unavailable

59

Husqvarna 303109

Pulley

$

$

Currently unavailable

60

Husqvarna 309546

Shift Link

$

$

Currently unavailable

61

Husqvarna 120394

Washer, Flat, 13/32 In.

$

$

Currently unavailable

62

Husqvarna 302582

Shift Lever, Transaxle

$

$

Currently unavailable

63

Husqvarna 56255

Screw, Hx Hd, 1/4-28 X 3/4 In.

$

$

Currently unavailable

64

Husqvarna 120392

Flatwasher

$

$

Currently unavailable

65

Husqvarna 30289

Washer, Wave

$

$

Currently unavailable

66

Husqvarna 309436

Push Nut, 5/16 Bolt Retainer

$

$

Currently unavailable

67

Husqvarna 995338

Screw, Hex Hd Tap, 1/4-20 x 5/8 In.

$

$

Currently unavailable

68

Husqvarna 305562

Key, Square 1/4

$

$

Currently unavailable

69

Husqvarna 313044

Air Deflector

$

$

Currently unavailable

70

Husqvarna 121222

Pin, Cotter

$

$

Currently unavailable

71

Husqvarna 308188

Washer

$

$

Currently unavailable

72

Husqvarna 56472

Deflector

$

$

Currently unavailable

73

Husqvarna 35287

Screw, Hx Wa Hd, #8-32 x 3/8 In.

$

$

Currently unavailable

74

Husqvarna 307174

Nipple, 3/8-18 x 4 In.

$

$

Currently unavailable

75

Husqvarna 47828

Cap, Pipe

$

$

Currently unavailable

76

Husqvarna 308950

Electric Clutch

$

$

Currently unavailable

77

Husqvarna 313043

Air Deflector

$

$

Currently unavailable
