414 S (1600259) - AGCO Lawn Tractor, 14hp Lawn Revitilizer Group - Drive (1506I43) Parts Diagram

Lawn Tractor, 14hp

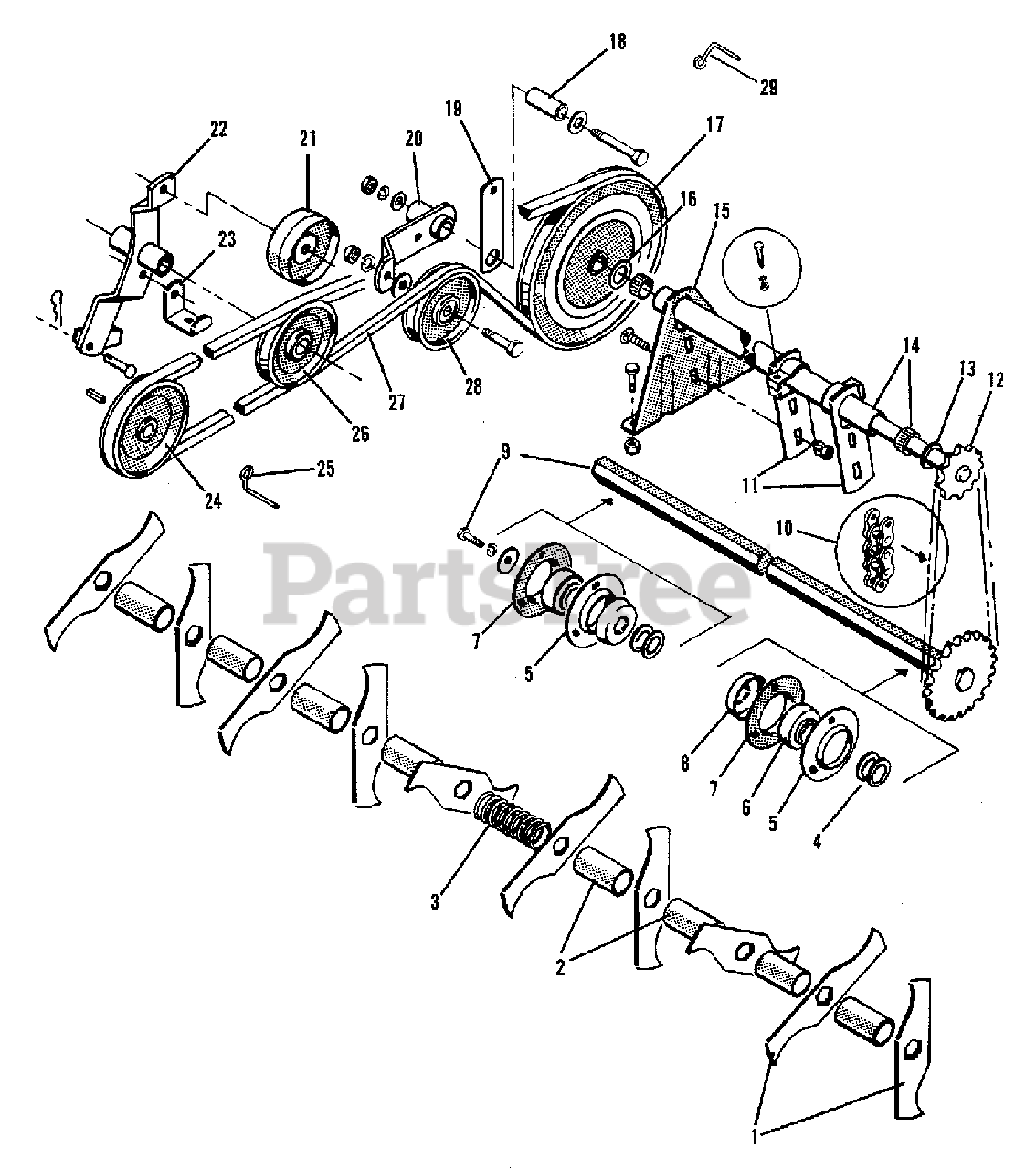

Lawn Revitilizer Group - Drive (1506I43) Parts Diagram

  • Title

1

Simplicity 2027934

TINE, Lawn Revitalizer

$

$

Not available

2

Simplicity 2027935

SPACER, Tine

$

$

Not available

3

Simplicity 2027936

SPRING, Tine Compression

$

$

Not available

4

Simplicity 2027932

WASHER, Special Hexagon

$

$

Not available

5

Simplicity 2027927

FLANGE, Bearing

$

$

Not available

6

Simplicity 2027929

BEARING ASSEMBLY, Nylon

$

$

Not available

7

Simplicity 2027928

FLANGE, Bearing (w/Lube Fitting)

$

$

Not available

7

Simplicity 2824856

SCREW, 5/16NC x 1/2, Self-Tap

$

$

Not available

8

Simplicity 2027937

GUARD, Bearing Dust

$

$

Not available

9

Simplicity 2027931

SHAFT ASSEMBLY, Tine (W/Sprocket)

$

$

Not available

9

Simplicity 2027933

WASHER

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 921259

CAPSCREW, 5/16NC x 1/2

$

$

Not available

10

Simplicity 2027942

CHAIN ASSEMBLY, Drive

$

$

Not available

11

Simplicity 2027939

SUPPORT ASSEMBLY, Clamping

$

$

Not available

11

Simplicity 924801

BOLT, 7/16NC x 1

$

$

Not available

11

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

11

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

11

Simplicity 2821221

CAPSCREW, 5/16NC x 1-1/2

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 2027941

SHAFT ASSEMBLY, Drive (W/Sprocket)

$

$

Not available

13

Simplicity 2025291

WASHER

$

$

Not available

14

Simplicity 2027938

HOUSING ASSEMBLY, Shaft (Includes BEARINGS)

$

$

Not available

14

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 2027940

SUPPORT, Drive Shaft

$

$

Not available

15

Simplicity 2819318

CAPSCREW, 5/16NC x 5/8

$

$

Not available

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 2026019

NUT, 5/16NC, Lock

$

$

Not available

16

Simplicity 2025167

WASHER

$

$

Not available

17

Simplicity 2027623

PULLEY, Drive Shaft

$

$

Not available

17

Simplicity 2805123SM

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

18

Simplicity 2027627

SPACER

$

$

Not available

18

Simplicity 2826111

CAPSCREW, 7/16NC x 3-1/2

$

$

Not available

18

Simplicity 1924940SM

WASHER, 3/8, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 2818430

WASHER, 7/16, Plain

$

$

Not available

18

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

19

Simplicity 2027629

SUPPORT, Rear Belt Guard

$

$

Not available

19

Simplicity 2820562

BOLT, 5/16NC x 3/4

$

$

Not available

19

Simplicity 2027106

NUT, 5/16NC, Wing

$

$

Not available

20

Simplicity 2027626

LEVER ASSEMBLY, Clutch

$

$

Not available

21

Simplicity 2027014

PULLEY, Idler

$

$

Not available

21

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 2817642

WASHER, 5/16, Plain

$

$

Not available

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

21

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 2027633

ARM ASSEMBLY, Idler

$

$

Not available

22

Simplicity 2026849

PIN, Round Head Hitch

$

$

Not available

22

Simplicity 2026903

PIN, Quick

$

$

Not available

23

Simplicity 2027636

BRACKET, Belt Guard

$

$

Not available

23

Simplicity 2819357

CAPSCREW, 3/8NC x 7/8

$

$

Not available

23

Simplicity 2817642

WASHER, 5/16, Plain

$

$

Not available

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

23

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

24

Simplicity 2027164

PULLEY, Transmission

$

$

Not available

24

Simplicity 2025725

KEY

$

$

Not available

25

Simplicity 2027543

STOP, Belt

$

$

Not available

26

Simplicity 2027640

PULLEY, Idler

$

$

Not available

27

Simplicity 2027624

V-BELT

$

$

Not available

28

Simplicity 2027625

PULLEY

$

$

Not available

28

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 2817642

WASHER, 5/16, Plain

$

$

Not available

28

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

28

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

29

Simplicity 1606014

STOP, Belt

$

$

Not available

29

Simplicity 2818430

WASHER

$

$

Not available
