414 S (1600259) - AGCO Lawn Tractor, 14hp Electrical Group - Lighting (1506I23) Parts Diagram

Lawn Tractor, 14hp

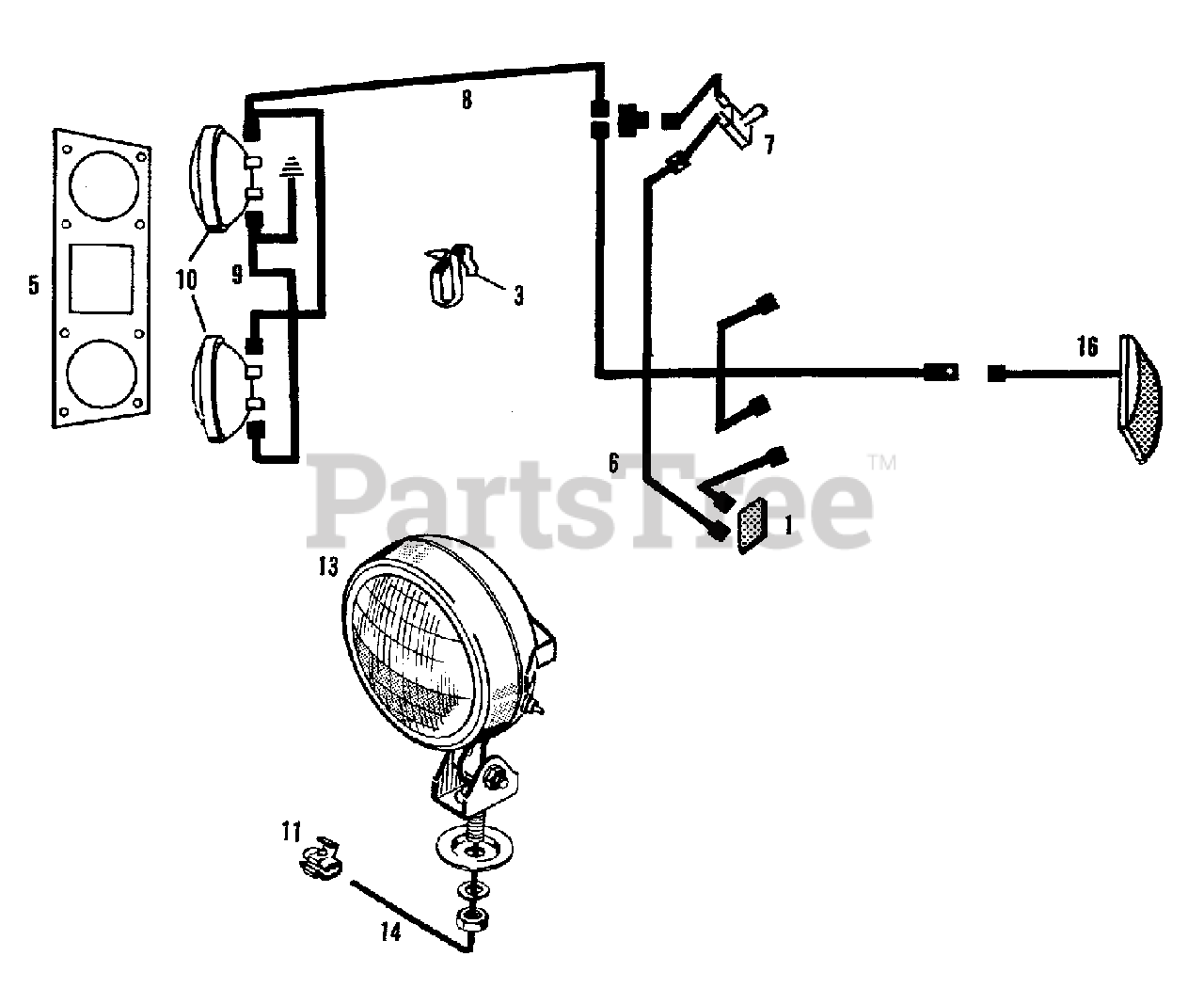

Electrical Group - Lighting (1506I23) Parts Diagram

  • Title

1

Simplicity 1603639

STRIP, Buss Post

$

$

Not available

1

Simplicity 1607608

WASHER, Insulation

$

$

Not available

1

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

1

Simplicity 2818264

WASHER, 9/32 x 5/8 x 1/16

$

$

Not available

1

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

2

Simplicity 2028003

BREAKER, Circuit

$

$

Not available

2

Simplicity 921908

BOLT, 1/4NC x 1, Carriage

$

$

Not available

3

Simplicity 2027978

CLIP, Cable

$

$

Not available

4

Simplicity 2027693

CLIP, Speed

$

$

Not available

4

Simplicity 910539

SCREW, #10NC x 1-1/4

$

$

Not available

4

Simplicity 2816621

NUT, #10NC

$

$

Not available

4

Simplicity 910243

WASHER

$

$

Not available

4

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

5

Simplicity 1608451

PANEL, Decal (Tractors Without Headlights)

$

$

Not available

5

Simplicity 1608452

PANEL, Decal (Tractors With Headlights)

$

$

Not available

6

Simplicity 1607984

LEAD, Wire (Buss Post To Light Switch)

$

$

Not available

7

Simplicity 2026683

SWITCH, Headlight

$

$

Not available

8

Simplicity 1607985

HARNESS, Headlight Wiring

$

$

Not available

9

Simplicity 1603628

HARNESS, Ground Wiring

$

$

Not available

10

Simplicity 1603200

LAMP, Seal Beam

$

$

Not available

10

Simplicity 1602740

BRACKET, Headlight Support

$

$

Not available

10

Simplicity 1603815

SCREW, #10NC x 3/8 Black Machine

$

$

Not available

10

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

10

Simplicity 2816621

NUT, #10NC

$

$

Not available

11

Simplicity 1605751SM

CONNECTOR, Self-Stripping

$

$

Not available

11

Simplicity 917441

SCREW, #8NC x 1/2 Round Head Machine

$

$

Not available

12

Simplicity 1602301

TAPE, Foam (For Healight Retainers-Cut 4-4-1/2" Lengths)

$

$

Not available

13

Simplicity 1605748

LIGHT ASSEMBLY, Rear Work

$

$

Not available

13

Simplicity 1605452

LAMP ASSEMBLY, Seal Beam

$

$

Not available

14

Simplicity 1605750

LEAD, Wire

$

$

Not available

15

Simplicity 1605751SM

CONNECTOR, Self-Stripping

$

$

Not available

16

Simplicity 1603202

LAMP ASSEMBLY, Rear (Complete)

$

$

Not available

16

Simplicity 1604442

LENS, Red Plastic

$

$

Not available

16

Simplicity 917385

NUT, #8NC

$

$

Not available

16

Simplicity 917395

LOCKWASHER, #8

$

$

Not available

16

Simplicity 917441

SCREW, #8NC x 1/2 Machine

$

$

Not available
