414 S (1600259) - AGCO Lawn Tractor, 14hp 36" Tiller Group - Drive Chain & Housing (1506I56) Parts Diagram

Lawn Tractor, 14hp

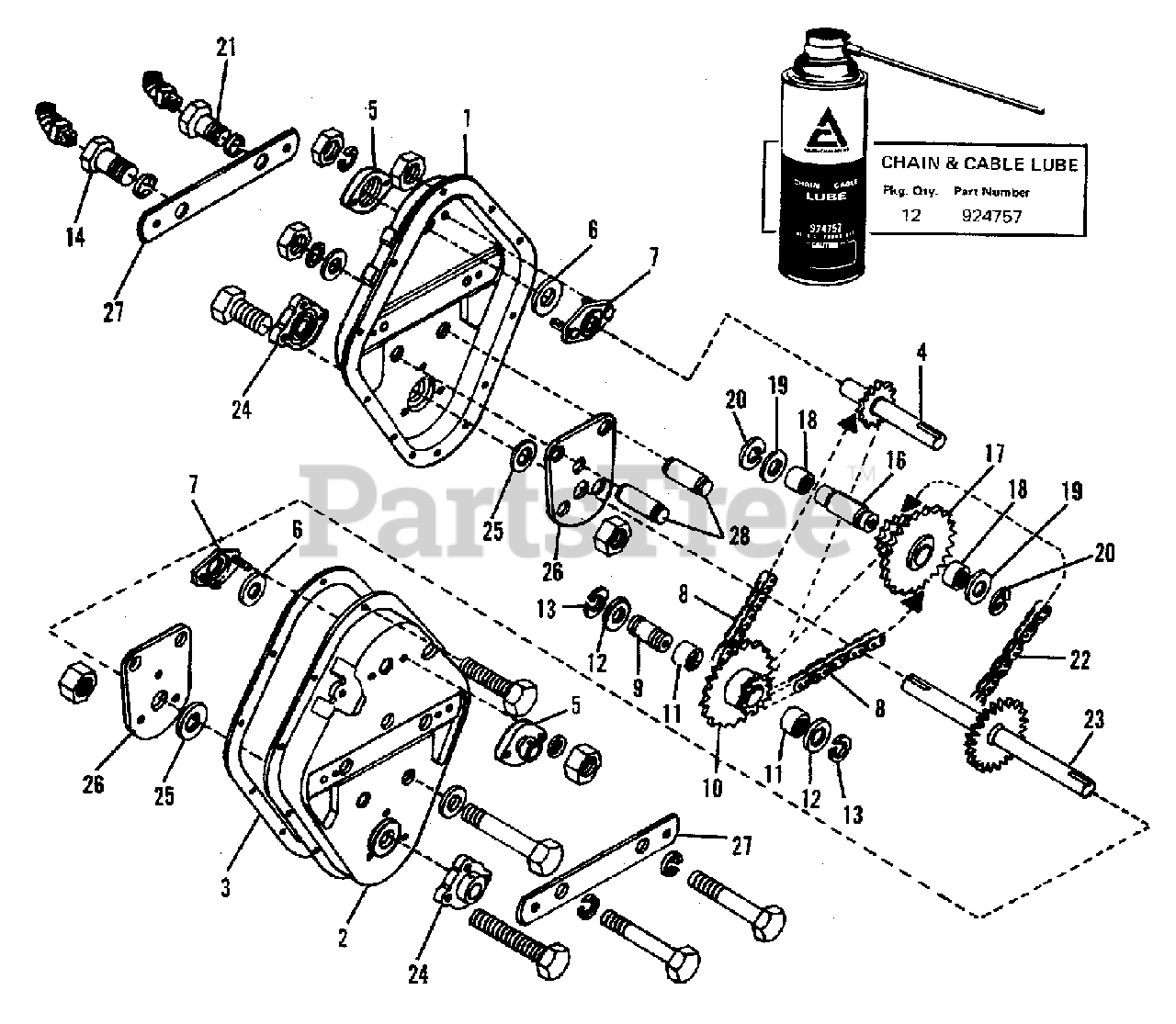

36" Tiller Group - Drive Chain & Housing (1506I56) Parts Diagram

  • Title

1

Simplicity 2027592

CASE ASSEMBLY, R.H., Half

$

$

Not available

2

Simplicity 2027593

CASE ASSEMBLY, L.H., Half

$

$

Not available

2

Simplicity 2825205

CAPSCREW, 5/16NC x 5/8

$

$

Not available

2

Simplicity 1917372SM

LOCCKNUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 923502

CAPSCREW, Hexagon, 1/2NC x 4

$

$

Not available

2

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

2

Simplicity 2813744

NUT, 1/2NC, Lock

$

$

Not available

3

Simplicity 2027594

GASKET

$

$

Not available

4

Simplicity 2027595

SHAFT ASSEMBLY, Pulley

$

$

Not available

5

Simplicity 2027597

BEARING

$

$

Not available

6

Simplicity 2027598

SEAL

$

$

Not available

7

Simplicity 2027599

PLATE ASSEMBLY, Upper Bearing

$

$

Not available

7

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2027600

CHAIN

$

$

Not available

9

Simplicity 2027601

SPACER, Intermediate

$

$

Not available

10

Simplicity 2027672

SPROCKET ASSEMBLY

$

$

Not available

11

Simplicity 2025277

BEARING, Roller

$

$

Not available

12

Simplicity 2025782

WASHER

$

$

Not available

13

Simplicity 2025276

RING, Retaining

$

$

Not available

14

Simplicity 2025239

BOLT, (R.H. Side)

$

$

Not available

14

Simplicity 9002042

FITTING, Grease

$

$

Not available

15

Simplicity 2027602

CAP, Grease (Not Shown)

$

$

Not available

16

Simplicity 2025274

SPACER, Intermediate

$

$

Not available

17

Simplicity 2029861

SPROCKET ASSEMBLY

$

$

Not available

18

Simplicity 2025277

BEARING, Roller

$

$

Not available

19

Simplicity 2025782

WASHER

$

$

Not available

20

Simplicity 2025276

RING, Retaining

$

$

Not available

21

Simplicity 2025239

BOLT (R.H. Side)

$

$

Not available

21

Simplicity 9002042

FITTING, Grease

$

$

Not available

22

Simplicity 2029862

CHAIN

$

$

Not available

23

Simplicity 2029863

SHAFT ASSEMBLY, Tine

$

$

Not available

24

Simplicity 2027608

BEARING

$

$

Not available

24

Simplicity 2027638

SCREW, Thread Forming, 3/8NC X 1-1/2

$

$

Not available

24

Simplicity 2026726

LOCKNUT, Jam, Hexagon, 3/8NC

$

$

Not available

25

Simplicity 2027609

SEAL

$

$

Not available

26

Simplicity 2027610

PLATE, Reinforcing

$

$

Not available

27

Simplicity 2027611

BAR, Side, 3/16 x 2 x 13-1/16

$

$

Not available

27

Simplicity 2821176

CAPSCREW, (L.H. Side) 1/2NC x 1-1/4

$

$

Not available

27

Simplicity 2816966

WASHER, Lock, 1/2

$

$

Not available

28

Simplicity 2027612

SPACER, 1 x 7/32 x 3-1/32

$

$

Not available
