414 S (1600259) - AGCO Lawn Tractor, 14hp 36" Tiller Group - Deflector & Tines (1506I54) Parts Diagram

Lawn Tractor, 14hp

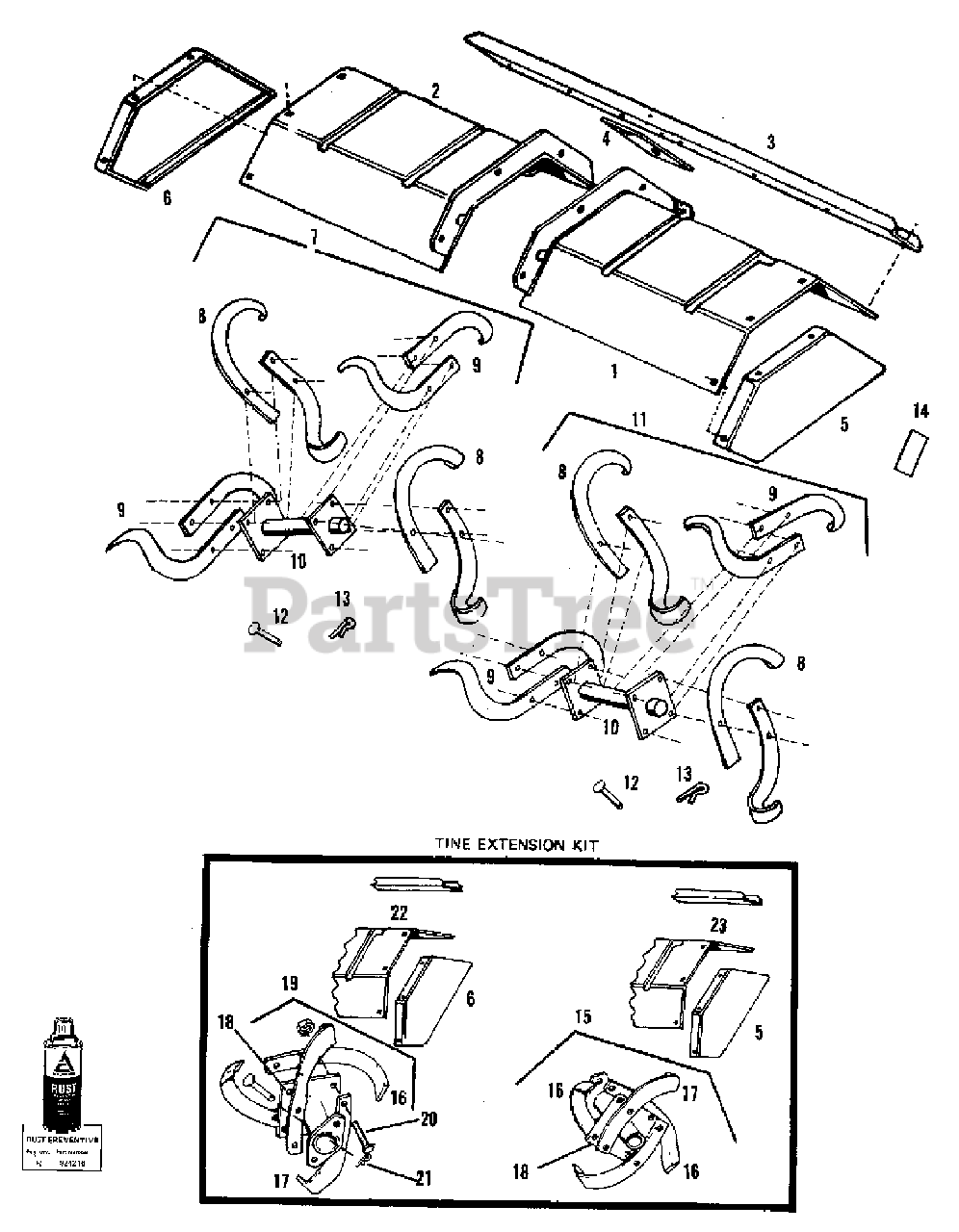

36" Tiller Group - Deflector & Tines (1506I54) Parts Diagram

  • Title

1

Simplicity 2027613

DELECTOR ASSEMBLY, L.H.

$

$

Not available

1

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

1

Simplicity 2822586SM

CAPSCREW, 3/8NC x 5/8

$2.99

$

In Stock, Qty 5

0

1

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

2

Simplicity 2027614

DELFLECTOR ASSEMBLY, R.H.

$

$

Not available

2

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

2

Simplicity 2822586SM

LOCKWASHER, 3/8

$2.99

$

In Stock, Qty 5

0

3

Simplicity 2027615

CHANNEL, Reinforcing

$

$

Not available

3

Simplicity 2821966

CAPSCREW, 3/8 x 7/8

$

$

Not available

3

Simplicity 2822586SM

LOCKWASHER, 3/8

$2.99

$

In Stock, Qty 5

0

3

Simplicity 2816950SM

NUT, 3/8
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 2027616

SHIELD

$

$

Not available

4

Simplicity 2822783

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2026889

END, L.H. Plate Deflector

$

$

Not available

6

Simplicity 2026890

END, R.H.

$

$

Not available

6

Simplicity 923700

BOLT, Carriage, 5/16nc X 1/2

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2027617

KEY

$

$

Not available

7

Simplicity 2027673

BLADE ASSEMBLY, R.H. Inner Tine

$

$

Not available

8

Simplicity 2027619

BLADE, L.H. Tine

$

$

Not available

9

Simplicity 2027620

BLADE, R.H. Tine

$

$

Not available

9

Simplicity 918903

CAPSCREW, 7/16NF x 1-1/2

$

$

Not available

9

Simplicity 918014

NUT, 7/16NF

$

$

Not available

10

Simplicity 2029794

HUB & PLATE ASSEMBLY

$

$

Not available

11

Simplicity 2027674

BLADE ASSEMBLY, L.H. Inner Tine (See TPG)

$

$

Not available

12

Simplicity 2026134

PIN, Line Shaft

$

$

Not available

13

Simplicity 2818452

PIN, 1/8 x 3/4, Cotter

$

$

Not available

14

Simplicity 2025846

DECAL, Safety

$

$

Not available

15

Simplicity 2025838

*BLADE ASSEMBLY, L.H.

$

$

Not available

16

Simplicity 2025737

*TINE, Blade, L.H.

$

$

Not available

17

Simplicity 2025738

*TINE, Blade, R.H.

$

$

Not available

17

Simplicity 922380

*CAPSCREW, 7/16NF x 1-1/4

$

$

Not available

17

Simplicity 2828867

*NUT, 7/16NF, Centerlock

$

$

Not available

18

Simplicity 2025837

*PLATE ASSEMBLY, Tine Extension

$

$

Not available

19

Simplicity 2025839

*BLADE ASSEMBLY, R.H.

$

$

Not available

20

Simplicity 2025429

*PIN

$

$

Not available

21

Simplicity 9002801

*CLIP, Spring

$

$

Not available

22

Simplicity 2027206

*DEFLECTOR, Ext. R.H.

$

$

Not available

23

Simplicity 2027205

*DEFLECTOR, Ext. L.H.

$

$

Not available

23

Simplicity 2820562

*BOLT, 5/16NC x 3/4, Carriage

$

$

Not available

23

Simplicity 1917356SM

*LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1917372SM

*NUT, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
