413 H (1694051) - AGCO 34" Riding Mower, 14hp Engine Group - Electric Clutch - 14HP Kohler Command Models Parts Diagram

34" Riding Mower, 14hp

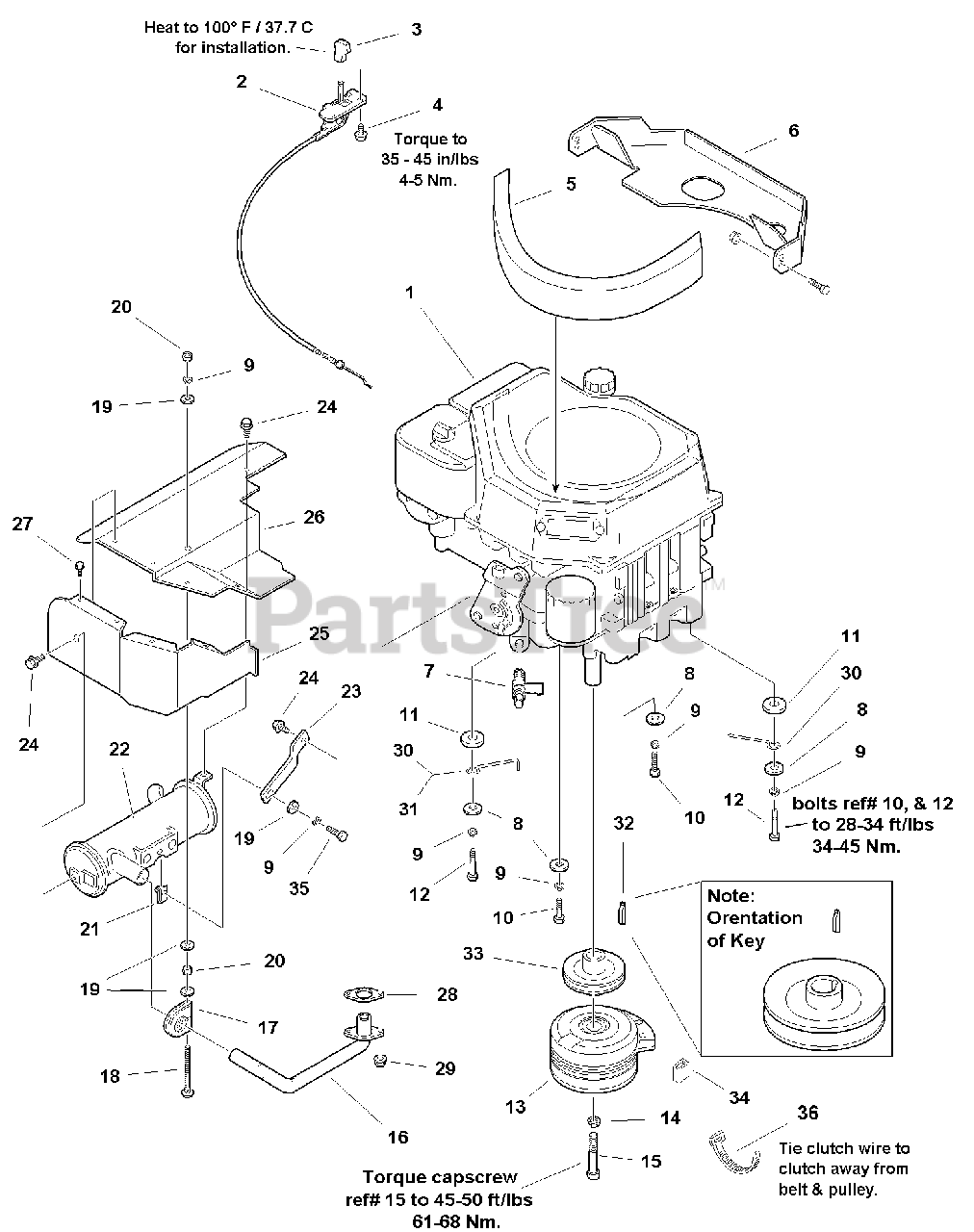

Engine Group - Electric Clutch - 14HP Kohler Command Models Parts Diagram

  • Title

1

ENGINE ASSEMBLY, 14 HP Kohler, Model CV145, Type, PS14107

$

$

Not available

2

Simplicity 1714065SM

THROTTLE CONTROL ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

4

Simplicity 1960536SM

SCREW, Plastite, 1/4-10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

6

Simplicity 1726971SM

AIR DUCT
(Superseded to 1726971ASM)

$60.99

$

Usually ships in 2-12 days

0

7

Simplicity 1708405SM

VALVE, Shut Off

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1960405SM

CAPSCREW, Hex, #8 - 1.25 x 30mm

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1933263SM

WASHER, Plain
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1950021SM

CAPSCREW, Hex Head, M08 - 1.25 x 40mm

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1686882SM

CLUTCH, Electric

$365.99

$

Usually ships in 2-12 days

0

14

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1960370SM

CAPSCREW, Hex Head, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1713502SM

PIPE, Exhaust

$90.99

$

Usually ships in 2-12 days

0

17

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1960748SM

CARRIAGE BOLT, 5/16-18 x 3-1/4

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 1708416SM

MUFFLER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

23

Simplicity 1713557ASM

SUPPORT, Muffler

$22.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1716080SM

AIR DUCT, Bottom
(Superseded to 1716080ASM)

$26.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716024SM

SHIELD, Muffler

$

$

Not available

27

Simplicity 1960720SM

CAPSCREW, Hex Head, Thd. Form, #10-16 x 1/2

$4.99

$

Usually ships in 2-12 days

0

28

GASKET

$

$

Not available

29

NUT, Hex

$

$

Not available

30

Simplicity 1704419SM

BELT STOP (Hydro Models)

$7.49

$

In Stock, only 2 left!

0

30

Simplicity 1704419SM

BELT STOP, Rear (Gear Models)

$7.49

$

In Stock, only 2 left!

0

31

Simplicity 2158499SM

BELT STOP, Front (Gear Models)

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 1706450SM

PULLEY, Engine (Gear Models)

$58.99

$

In Stock, only 1 left!

0

33

Simplicity 1709218SM

PULLEY, Engine (Hydro Models)

$34.99

$

Usually ships in 2-12 days

0

34

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0
