4125 H - Husqvarna 40" Lawn Tractor (1992-01) Transaxle Parts Diagram

40" Lawn Tractor

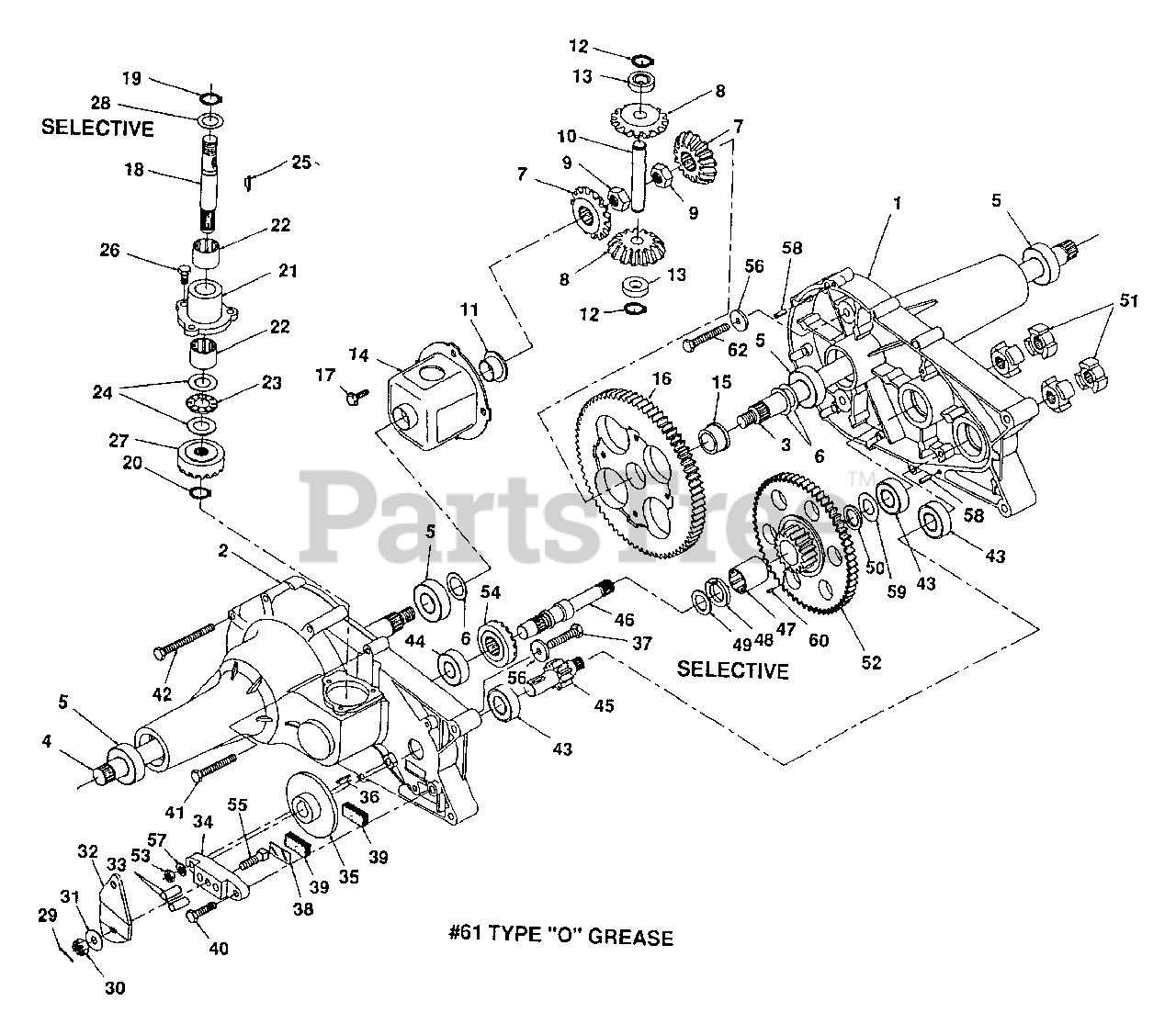

Transaxle Parts Diagram

  • Title

Husqvarna 324090

ASS'Y, HOUSING HALF LH

$

$

Currently unavailable

1

HOUSING HALF L.H.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

5

BEARING, BALL 3/4ID X 40MM OD X 12 MM

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

43

BEARING, BALL

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

Husqvarna 324092

ASS'Y, HOUSING HALF RH

$

$

Currently unavailable

2

HOUSING HALF RH

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

5

BEARING, BALL 3/4ID X 40MM OD X 12 MM

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

43

BEARING, BALL

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

44

BEARING, BALL

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

Husqvarna 324094

ASS'Y, DIFFERENTIAL/AXLE

$

$

Currently unavailable

3

AXLE L.H. 3/4"

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

4

AXLE R.H. 3/4"

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

6

WASHER, FLAT 3/4ID X 1-1/8OD X .025 THK

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

7

GEAR, MITER

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

8

GEAR, MITER

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

9

NUT, HEX JAM W/PATCH 1/2-20

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

10

SHAFT, CROSS

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

11

BEARING, FL 3/4 ID X 7/8 OD

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

12

SNAP RING

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

13

BEARING, THRUST

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

14

HOUSING

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

15

BEARING, FLANGE

$

$

Not available

16

GEAR, DIFFERENTIAL 72 TOOTH

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

17

LOCKING BOLT, 1/4-28 X 9/16" LG

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

Husqvarna 324095

ASS'Y, INPUT PINION HSG

$

$

Currently unavailable

18

SHAFT, INPUT

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

19

RETAINING, RING

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

20

RING, RETAINING

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

21

HOUSING, INPUT BEARING

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

22

BEARING, NEEDLE

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

23

BEARING, THRUST

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

24

THRUST RACE

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

25

KEY, HI-PRO 3/32 X 5/8 DIA.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

26

SCREW, HEX W/PATCH 1/4-20 X 3/4 LONG

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

27

GEAR, INPUT PINION 17 TOOTH

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

28

WASHER, FLAT .62ID X 1.0 OD X .050 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

28

WASHER, FLAT .62ID X 1.0 OD X .040 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

Husqvarna 324096

ASS'Y, REDUCTION GEAR

$

$

Currently unavailable

47

BEARING, NEEDLE

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

48

BRONZE THRUST BRG 5/8ID X 1-1/4OD X 7/64 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

49

WASHER, FLAT.62ID X 1.0 OD X .050 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

49

WASHER, FLAT.62ID X 1.0 OD X .040 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

50

GREASE, SEAL BRONZE

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

52

GEAR, 60 AND 17 TOOTH

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

59

WASHER, FLAT .62ID X 1.0 OD X .030 THK.

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

60

PIN, DOWEL 3/32 X 1/4

Note: This is not a serviceable part. Order assembly part.

$

$

Not available

25

Husqvarna 323688

KEY, HI-PRO 3/32 X 5/8 DIA.

$

$

Currently unavailable

29

Husqvarna 323671

PIN, COTTER

$

$

Currently unavailable

30

Husqvarna 323691

NUT, CASTLE 5/16-24

$

$

Currently unavailable

31

Husqvarna 323684

WASHER, FLAT .343ID X .88OD X .062 THK.

$

$

Currently unavailable

32

Husqvarna 323665

ARM, BRAKE ACTUATOR

$

$

Currently unavailable

33

Husqvarna 323681

PIN, BRAKE ACTUATING

$

$

Currently unavailable

34

Husqvarna 324088

BRAKE, YOKE

$

$

Currently unavailable

35

Husqvarna 323663

DISC, BRAKE

$

$

Currently unavailable

36

Husqvarna 323692

KEY, HI-PRO 3/16 X 5/8" DIA.

$

$

Currently unavailable

37

Husqvarna 324092

BOLT, HEX 1/4-20 X 1.50 LONG

$

$

Currently unavailable

38

Husqvarna 323687

PLATE, PUCK

$

$

Currently unavailable

39

Husqvarna 323685

PUCK, BRAKE

$

$

Currently unavailable

40

Husqvarna 323711

BOLT, HEX W/PATCH 1/4-20 X 1.00 LG

$

$

Currently unavailable

41

Husqvarna 323677

BOLT, HEX SELF-TAP 1/4-20 X 2.00 LG

$

$

Currently unavailable

42

Husqvarna 323678

BOLT, HEX SELF-TAP 1/4-20 X 3.00 LG

$

$

Currently unavailable

45

Husqvarna 323660

SHAFT, PINION W/11 TOOTH GEAR

$

$

Currently unavailable

46

Husqvarna 323656

SHAFT, DRIVE

$

$

Currently unavailable

51

Husqvarna 323661

COUPLING

$

$

Currently unavailable

53

Husqvarna 323650

NUT, HEX 1/4-20

$

$

Currently unavailable

54

Husqvarna 323655

GEAR, DRIVE PINION 17 T.

$

$

Currently unavailable

55

Husqvarna 324088

BOLT, SQUARE HEAD

$

$

Currently unavailable

56

Husqvarna 323703

WASHER, 7/8OD X .265ID X .125 THK.

$

$

Currently unavailable

57

Husqvarna 323649

WASHER, 1/4" SPRING LOCK

$

$

Currently unavailable

58

Husqvarna 323699

PIN, ROLL 3/16" DIA X 1/2" LG

$

$

Currently unavailable

61

Husqvarna 324089

TYPE "O" GREASE (10 OZ. TUBE)

Note: (20 OZ. REQ'D)

$

$

Currently unavailable

62

Husqvarna 324110

BOLT, HEX SELF TAP 1/4-20 X 2-1/2

$

$

Currently unavailable
