4125 H - Husqvarna 40" Lawn Tractor (1991-01) Transaxle Parts Diagram

40" Lawn Tractor

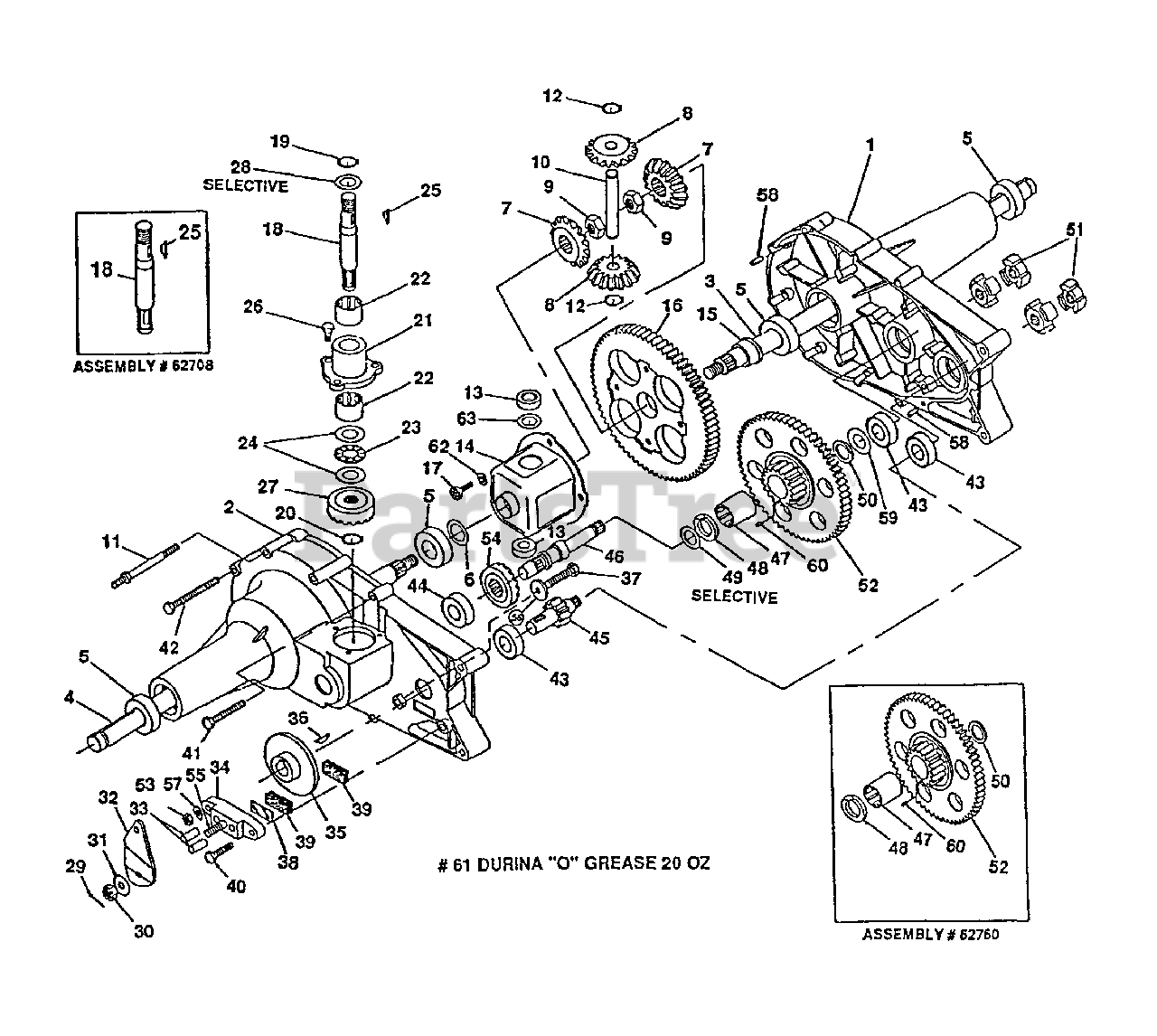

Transaxle Parts Diagram

  • Title

1

Husqvarna 44077

HOUSING HALF LH

$

$

Currently unavailable

2

Husqvarna 44076

HOUSING HALF RH

$

$

Not available

3

Husqvarna 44273

AXLE LH 3/4"

$

$

Currently unavailable

4

Husqvarna 44272

AXLE RH 3/4"

$

$

Currently unavailable

5

Husqvarna 44121

BEARING, BALL

$

$

Currently unavailable

6

Husqvarna 44008

WASHER, FLAT 3/4ID X 1-1/8 00 X .030 THK

$

$

Currently unavailable

7

Husqvarna 44096

GEAR, MITER

$

$

Currently unavailable

8

Husqvarna 44097

GEAR, MITER

$

$

Not available

9

Husqvarna 44133

NUT, HEX JAM W/PATCH 1/2-20

$

$

Currently unavailable

10

Husqvarna 44089

SHAFT. CROSS

$

$

Currently unavailable

11

Husqvarna 44271

SCREW/STUD

$

$

Currently unavailable

12

Husqvarna 44146

SNAP RING

$

$

Currently unavailable

13

Husqvarna 44128

BEARING, THRUST

$

$

Currently unavailable

14

Husqvarna 62590

HOUSING ASSY, DIFFERENTIAL

$

$

Currently unavailable

15

Husqvarna 44129

BEARING, FLANGE

$

$

Currently unavailable

16

Husqvarna 44095

GEAR, DIFFERENTIAL 72 TOOTH

$

$

Currently unavailable

17

Husqvarna 44126

BOLT, TORX HEAD 1/4-28 X 5/8" LG.

$

$

Currently unavailable

18

Husqvarna 44104

SHAFT, INPUT

$

$

Currently unavailable

19

Husqvarna 44145

SNAP, RING

$

$

Currently unavailable

20

Husqvarna 44144

RETAINING RING 7/16" DIA. EXT.

$

$

Currently unavailable

21

Husqvarna 44081

HOUSING, INPUT BEARING

$

$

Currently unavailable

22

Husqvarna 44099

BEARING, NEEDLE

$

$

Currently unavailable

23

Husqvarna 44139

BEARING, THRUST

$

$

Currently unavailable

24

Husqvarna 44109

WASHER, FLAT 5/8 ID X 1-1/8 OD X .030 THK

$

$

Currently unavailable

25

Husqvarna 44136

KEY. HI-PRO 3/32 X 5/8 DIA.

$

$

Currently unavailable

26

Husqvarna 44122

SCREW; HEX W/PATCH 1/4-20 X 3/4 LONG

$

$

Currently unavailable

27

Husqvarna 44078

GEAR, INPUT PINION 17 TOOTH

$

$

Currently unavailable

28

Husqvarna 44371

WASHER, FLAT .62 10 X 1.0 00 X .050 THK

$

$

Currently unavailable

28

Husqvarna 44110

WASHER, FLAT .62 10 X 1.125 OD X .060 THK

$

$

Currently unavailable

28

Husqvarna 44151

WASHER, FLAT .62 10 X 1.0 OD X .040 THK

$

$

Currently unavailable

29

Husqvarna 44101

PIN, COTTER

$

$

Currently unavailable

30

Husqvarna 44142

NUT, CASTLE 5/16-24

$

$

Currently unavailable

31

Husqvarna 44130

WASHER, FLAT .343 ID X .88 OD X .062 THK

$

$

Currently unavailable

32

Husqvarna 44094

ARM, BRAKE ACTUATOR

$

$

Currently unavailable

33

Husqvarna 44127

PIN. BRAKE ACTUATING

$

$

Currently unavailable

34

Husqvarna 44092

BRAKE, YOKE

$

$

Currently unavailable

35

Husqvarna 44090

DISC, BRAKE

$

$

Currently unavailable

36

Husqvarna 44143

KEY. HI-PRO 3/16 X 5/8" DIA.

$

$

Currently unavailable

37

Husqvarna 44277

SCREW HEX 1/4-20 X 1.50 LONG

$

$

Currently unavailable

38

Husqvarna 44134

PLATE. PUCK

$

$

Currently unavailable

39

Husqvarna 44132

PUCK, BRAKE

$

$

Currently unavailable

40

Husqvarna 44433

SCREW, HEX W/PATCH 1/4-20 X 1.00 LG

$

$

Currently unavailable

41

Husqvarna 44123

SCREW, HEX SELF-TAP 1/4-20 X 2.00 LG.

$

$

Currently unavailable

42

Husqvarna 44124

SCREW, HEX SELF-TAP 1/4-20 X 3.00 LG.

$

$

Currently unavailable

43

Husqvarna 44147

BEARING, BALL

$

$

Currently unavailable

44

Husqvarna 44232

BEARING. BALL

$

$

Currently unavailable

45

Husqvarna 44083

SHAFT, PINION W/11 TOOTH GEAR

$

$

Currently unavailable

46

Husqvarna 44080

SHAFT, DRIVE

$

$

Currently unavailable

47

Husqvarna 44342

BEARING, NEEDLE

$

$

Currently unavailable

48

Husqvarna 44343

BRONZE THRUST BRG 5/8 ID X 1-1/4 00 X 7/64 THK

$

$

Currently unavailable

49

Husqvarna 44151

WASHER, FLAT .62 ID X 1.0 00 X .040 THK

$

$

Currently unavailable

49

Husqvarna 44371

WASHER, FLAT .62 ID X 1.0 00 X .050 THK

$

$

Currently unavailable

50

Husqvarna 44394

SEAL, GREASE

$

$

Currently unavailable

51

Husqvarna 44084

COUPLING

$

$

Currently unavailable

52

Husqvarna 44523

GEAR, 60 AND 17 TOOTH

$

$

Currently unavailable

53

Husqvarna 43178

NUT, HEX 114-20

$

$

Not available

54

Husqvarna 44079

GEAR, DRIVE PINION 17 T.

$

$

Currently unavailable

55

Husqvarna 44138

BOLT, SQUARE HEAD

$

$

Currently unavailable

56

Husqvarna 44278

WASHER, 15/16 00 X .265 ID X .125 THK

$

$

Currently unavailable

57

Husqvarna 43177

WASHER, 1/4" SPRING LOCK

$

$

Not available

58

Husqvarna 44269

PIN, ROLL 3/16" DIA X 1/2" LG.

$

$

Currently unavailable

59

Husqvarna 44125

WASHER, FLAT .62 ID X 1.0 OD X .030 THK

$

$

Currently unavailable

60

Husqvarna 44346

PIN. DOWEL 3/32 X 1/4

$

$

Currently unavailable

61

Husqvarna 44098

SHELL DURINA-O GREASE (20 OZ.)

$

$

Currently unavailable

62

Husqvarna 44504

WASHER, HD SPRC LOCK 1/4" (YELLOW DI-CHROM)

$

$

Currently unavailable

63

Husqvarna 44137

WASHER, FLAT .50 ID X 1.0 OD X .020 THK

$

$

Currently unavailable

63

Husqvarna 44421

WASHER, FLAT .50 ID X 1.0 OD X .030 THK

$

$

Currently unavailable

Husqvarna 44499

SERVICE MANUAL

$

$

Currently unavailable
