4125 H - Husqvarna 40" Lawn Tractor (1991-01) Mower Deck Parts Diagram

40" Lawn Tractor

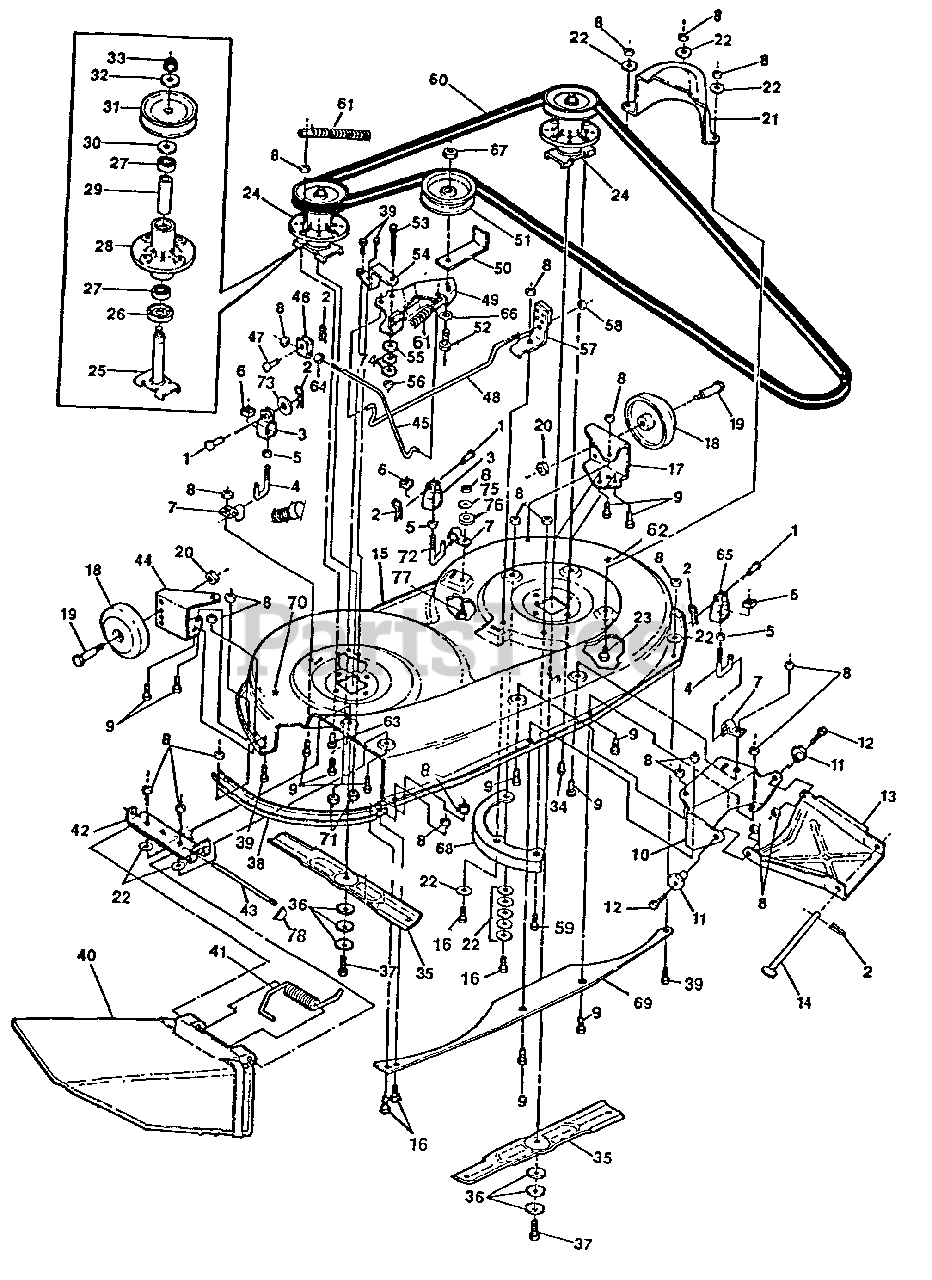

Mower Deck Parts Diagram

  • Title

1

Husqvarna 300317

Pin, Clevis

$

$

Currently unavailable

2

Husqvarna 56180

Hairpin, Cotter

$

$

Currently unavailable

3

Husqvarna 305283

Clevis

$

$

Currently unavailable

4

Husqvarna 309615

Lift Rod

$

$

Currently unavailable

5

Husqvarna 120238

Nut, Hx Jam 1/2-13 Thd.

$

$

Currently unavailable

6

Husqvarna 109527

Nut, Sq. 1/2-13 Thd.

$

$

Currently unavailable

7

Husqvarna 302197

Clip

$

$

Currently unavailable

8

Husqvarna 1498

Nut, Hx, Lock 5/16-18 Thd

$

$

Currently unavailable

9

Husqvarna 180075

Screw, Hx Hd, 5/16-18 x 1 In.

$

$

Currently unavailable

10

Husqvarna 312342

Bracket, Front

$

$

Currently unavailable

11

Husqvarna 58247

Nut, Adjusting

$

$

Currently unavailable

12

Husqvarna 122017

Screw, Hx Hd. 5/16-18 x 1 In.

$

$

Currently unavailable

13

Husqvarna 311942

Channel, Draw Bar

$

$

Currently unavailable

14

Husqvarna 302963

Rod, Drawbar

$

$

Currently unavailable

15

Husqvarna 315788

Mower Deck

$

$

Currently unavailable

16

Husqvarna 122007

Screw, Hx, 5/16-18 x 3/4 In

$

$

Currently unavailable

17

Husqvarna 317041

Wheel Bracket, L H

$

$

Currently unavailable

18

Husqvarna 302611

Wheel

$

$

Currently unavailable

19

Husqvarna 23763

Shoulder Bolt, 3/8-16 Thd.

$

$

Currently unavailable

20

Husqvarna 1499

Nut, Hex, Ctrlk, 3/8-16 Thd.

$

$

Currently unavailable

21

Husqvarna 302833

Belt Cover, Left Pulley

$

$

Currently unavailable

22

Husqvarna 120393

Flatwasher, 11/32 In.

$

$

Currently unavailable

23

Husqvarna 120228

Screw, Hx Hd, 5/16-18 x 5/8 In.

$

$

Currently unavailable

24

Husqvarna 317705

Quill Assembly

Note: (Incl. Nos. 25-33)

$

$

Currently unavailable

25

Husqvarna 56425

Saddle & Shaft Assembly

$

$

Currently unavailable

26

Husqvarna 50616

Dust Shield

$

$

Currently unavailable

27

Husqvarna 1255

Bearing

$

$

Currently unavailable

28

Husqvarna 50702

Quill Housing

$

$

Currently unavailable

29

Husqvarna 50818

Spacer Tube

$

$

Currently unavailable

30

Husqvarna 51449

Spacer

$

$

Currently unavailable

31

Husqvarna 313898

Pulley

$

$

Currently unavailable

32

Husqvarna 56365

Washer

$

$

Currently unavailable

33

Husqvarna 1282

Nut, Wd Fl, Lk 7/16-20 Thd.

$

$

Currently unavailable

34

Husqvarna 50634

Screw, Wshr Hd, 5/16-18 x 7/8"

$

$

Currently unavailable

35

Husqvarna 309070

Blade

$

$

Currently unavailable

36

Husqvarna 2483

Washer, Spring

$

$

Currently unavailable

37

Husqvarna 39573

Screw, Hx Hd, 3/8-24 x 1 In

$

$

Currently unavailable

38

Husqvarna 317039

Toe Guard

$

$

Currently unavailable

39

Husqvarna 180077

Screw, Hx Hd, 5/16-18 x 3/4 In

$

$

Currently unavailable

40

Husqvarna 304422

Chute Deflector

$

$

Currently unavailable

41

Husqvarna 305124

Spring

$

$

Currently unavailable

42

Husqvarna 317017

Bracket, Chute Mount

$

$

Currently unavailable

43

Husqvarna 304424

Rod, Chute

$

$

Currently unavailable

44

Husqvarna 317018

Wheel Bracket, R. H.

$

$

Currently unavailable

45

Husqvarna 303072

Clutch Rod

$

$

Currently unavailable

46

Husqvarna 305284

Clevis, Clutch

$

$

Currently unavailable

47

Husqvarna 49332

Pin, Clevis

$

$

Currently unavailable

48

Husqvarna 302714

Rod, Brake

$

$

Currently unavailable

49

Husqvarna 304414

Idler Assembly

Note: Includes the following parts

$

$

Currently unavailable

49

Husqvarna 305298

Idler Arm

$

$

Currently unavailable

49

Husqvarna 306973

Brake Pad

$

$

Currently unavailable

49

Husqvarna 41601

Rivet

$

$

Currently unavailable

50

Husqvarna 300844

Belt Retainer

$

$

Currently unavailable

51

Husqvarna 310326

Idler Pulley

$

$

Currently unavailable

52

Husqvarna 57325

Carriage Bolt, 3/8-16 x 2 In

$

$

Currently unavailable

53

Husqvarna 304420

Shoulder Bolt, 3/8-16 x 3/4 In

$

$

Currently unavailable

54

Husqvarna 312273

Idler Brace

$

$

Currently unavailable

55

Husqvarna 996307

Washer, Flat

$

$

Currently unavailable

56

Husqvarna 45171

Nut, Hx, Wd Fl, 3/8-16 Thd

$

$

Currently unavailable

57

Husqvarna 304118

Brake Spring Assembly

$

$

Currently unavailable

58

Husqvarna 1502

Nut, Hx, Ctrlk, 1/4-20 Thd.

$

$

Currently unavailable

59

Husqvarna 122027

Screw, Hx, 5/16-18 x 1-1/4 In

$

$

Not available

60

Husqvarna 48044

Belt, 82 In Long

$17.99

$

Usually ships in 0 days

0

61

Husqvarna 35410

Spring

$

$

Currently unavailable

62

Husqvarna 68249

Decal, No Step

$

$

Currently unavailable

63

Husqvarna 300345

Screw, Tap, 5/16-18 x 1-3/8 In

$

$

Currently unavailable

64

Husqvarna 120376

Nut, Hx, 5/16-18 Thd.

$

$

Currently unavailable

65

Husqvarna 304443

Clevis

$

$

Currently unavailable

66

Husqvarna 120382

Washer, Split, Lock 3/8 In

$

$

Currently unavailable

67

Husqvarna 120377

Nut, Hx, 3/8-16 Thd

$

$

Currently unavailable

68

Husqvarna 306477

Baffle, Deck

$

$

Currently unavailable

69

Husqvarna 306478

Baffle, Deck Front

$

$

Currently unavailable

70

Husqvarna 68547

Decal, Danger

$

$

Currently unavailable

71

Husqvarna 44108

Nut, 5/16-18 Thd

$

$

Currently unavailable

72

Husqvarna 312302

Lift Rod

$

$

Currently unavailable

73

Husqvarna 274517

Washer, Flat

$

$

Currently unavailable

74

Husqvarna 996416

Washer, Flat

$

$

Currently unavailable

75

Husqvarna 35214

Washer, Flat

$

$

Currently unavailable

76

Husqvarna 50520

Spacer

$

$

Currently unavailable

77

Husqvarna 180079

Screw, 5/16-18 x 1 In.

$

$

Currently unavailable

78

Husqvarna 3535

Push Nut

$

$

Currently unavailable
