4125 H - Husqvarna 40" Lawn Tractor (1991-01) Hydro-Static Pump Parts Diagram

40" Lawn Tractor

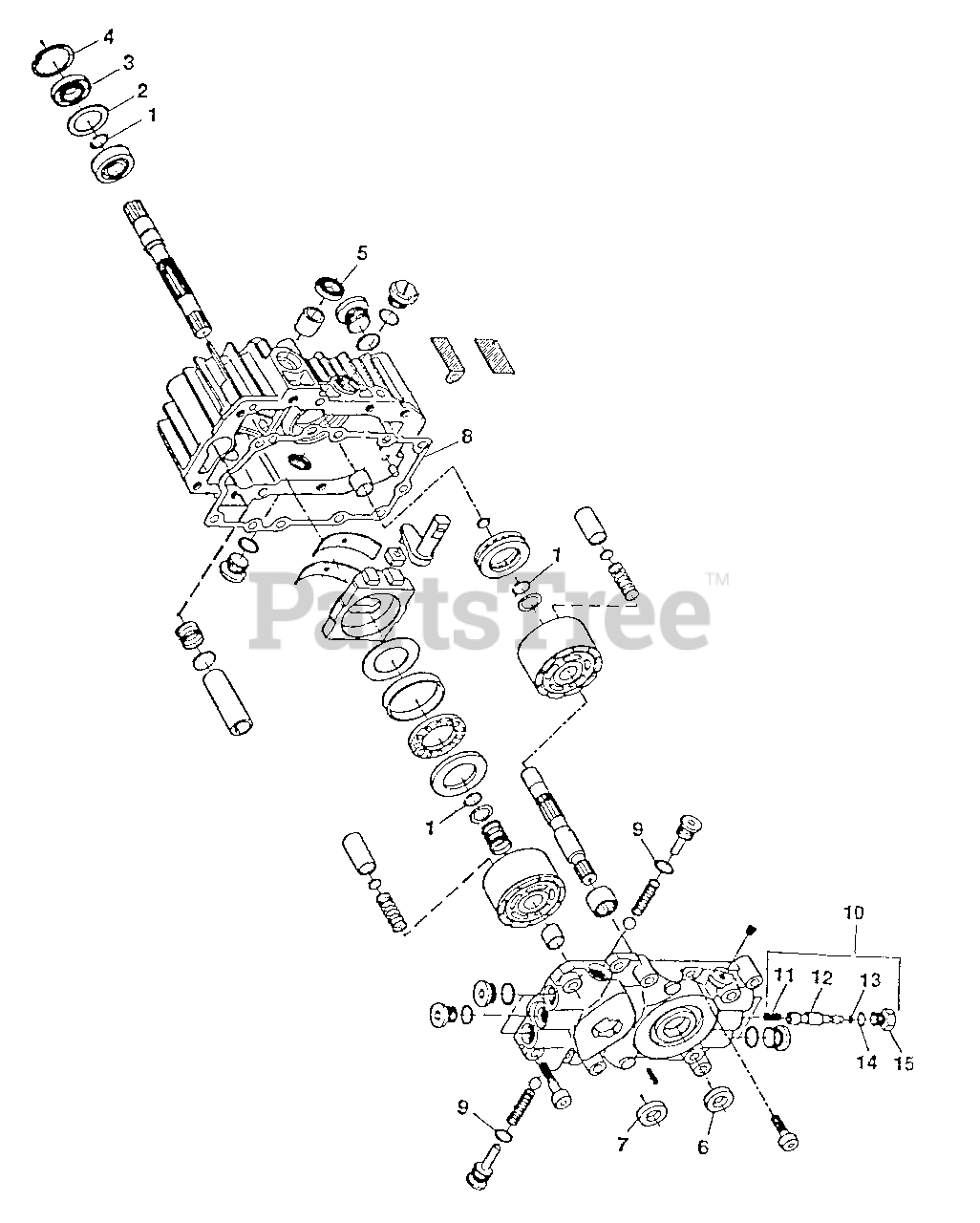

Hydro-Static Pump Parts Diagram

  • Title

Husqvarna 310227

Hydro-Static Pump (Complete)

Note: Not Shown

$

$

Currently unavailable

Husqvarna 313306

Overhaul Seal Kit

Note: (Contains Key No's. 1 thru 9 , 13 and 14); Not Shown

$

$

Currently unavailable

1

Ring-Retaining

$

$

Not available

2

Spacer

$

$

Not available

3

Seal-Lip

$

$

Not available

4

Ring-Retaining

$

$

Not available

5

Seal-Lip

$

$

Not available

6

Seal-Lip

$

$

Not available

7

Seal-Lip

$

$

Not available

8

Gasket-Center Section

$

$

Not available

9

O-Ring

$

$

Not available

10

Husqvarna 313305

By-Pass Valve Kit-Complete

Note: (Contains Key No's. 11-15)

$

$

Currently unavailable

11

Spring-Helical Comp

$

$

Not available

12

By-Pass Spool

$

$

Not available

13

O-Ring

$

$

Not available

14

O-Ring

$

$

Not available

15

Plug-By-Pass

$

$

Not available
