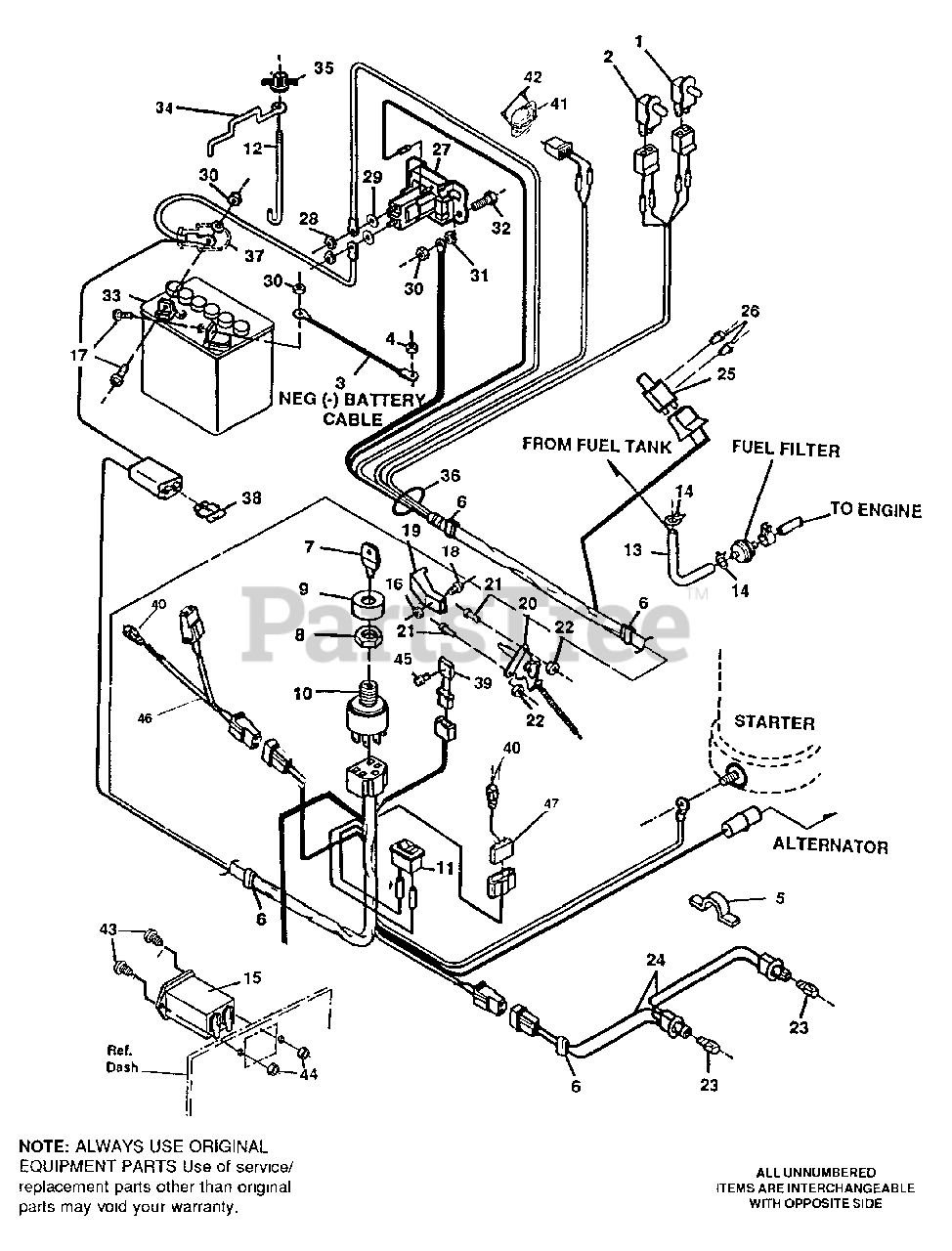

4125 H - Husqvarna 40" Lawn Tractor (1991-01) Electrical Parts Diagram

40" Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 308187

Seat Switch

$

$

Currently unavailable

2

Husqvarna 12553

Deck Safety Switch

$

$

Currently unavailable

3

Husqvarna 55511

Cable, Battery, Negative

$

$

Currently unavailable

4

Husqvarna 271184

Nut, Hx, Keps, 5/16-18 Thd.

$

$

Currently unavailable

5

Husqvarna 41482

Press Clip

$

$

Currently unavailable

6

Husqvarna 57444

Tie Cable

$

$

Currently unavailable

7

Husqvarna 300626

Key, Ignition Switch

$

$

Currently unavailable

8

Husqvarna 300193

Nut, Switch

$

$

Currently unavailable

9

Husqvarna 300194

Boot, Switch

$

$

Currently unavailable

10

Husqvarna 305720

Switch, Ignition

$

$

Currently unavailable

11

Husqvarna 300334

Switch, Light

$

$

Currently unavailable

12

Husqvarna 57551

Rod, Battery Hold-Down

$

$

Currently unavailable

13

Husqvarna 47452

Gas Line, 13-1/2" (cut to length)

$

$

Currently unavailable

14

Husqvarna 47345

Clamp, Gas Line

$

$

Currently unavailable

15

Husqvarna 304739

Minature Hour Meter

$

$

Currently unavailable

16

Husqvarna 120622

Nut, Hex, #8-32 Thd.

$

$

Currently unavailable

17

Husqvarna 120854

Screw, 1 /4-20 x .63

$

$

Currently unavailable

18

Husqvarna 159585

Screw, Ph Pn, #8-32 x 3/8 In.

$

$

Currently unavailable

19

Husqvarna 304439

Knob, Throttle Control

$

$

Currently unavailable

20

Husqvarna 315716

Throttle Control

$

$

Currently unavailable

21

Husqvarna 159943

Screw, #10-24 X 5/8 In.

$

$

Currently unavailable

22

Husqvarna 308459

Nut, Hx, Nylon Lock, #10-24 Thd.

$

$

Currently unavailable

23

Husqvarna 52572

Bulb Headlamp

$

$

Currently unavailable

24

Husqvarna 303064

Assembly, Light Wire

$

$

Currently unavailable

25

Husqvarna 57476

Switch

$

$

Currently unavailable

26

Husqvarna 57220

Screw, Pn Hd, Tap #12 x 112 In.

$

$

Currently unavailable

27

Husqvarna 53716

Solenoid

$

$

Currently unavailable

28

Husqvarna 120368

Nut, Hx 5/16-24 Thd.

$

$

Currently unavailable

29

Husqvarna 138485

Washer, Lock 5/16 In.

$

$

Currently unavailable

30

Husqvarna 271172

Nut, Hx, Keps, 1/4-20 Thd.

$

$

Currently unavailable

31

Husqvarna 1502

Nut, Hx, Ctrlk, 1/4-20 Thd.

$

$

Currently unavailable

32

Husqvarna 187745

Screw, 1/4-20 X 3/4 In.

$

$

Currently unavailable

33

Husqvarna 302257

Battery

$

$

Currently unavailable

34

Husqvarna 302912

Bracket, Battery Hold-Down

$

$

Currently unavailable

35

Husqvarna 310067

Wingnut

$

$

Currently unavailable

36

Husqvarna 315691

Wiring Harness

$

$

Currently unavailable

37

Husqvarna 308201

Boot, Rubber (Battery Cable)

$

$

Currently unavailable

38

Husqvarna 302031

Fuse, 15A-32V

$

$

Currently unavailable

39

Husqvarna 307056

Low Voltage Sensor

$

$

Currently unavailable

40

Husqvarna 57769

Bulb Indicator

$

$

Currently unavailable

41

Husqvarna 57547

Seat Switch

$

$

Currently unavailable

42

Husqvarna 160505

Screw, 1/4-20 x .38

$

$

Currently unavailable

43

Husqvarna 308347

Screw, #6-32 x 1 /2 1 n.

$

$

Currently unavailable

44

Husqvarna 271482

Nut, #6-32 Thd.

$

$

Currently unavailable

45

Husqvarna 300302

Screw, Plastite

$

$

Currently unavailable

46

Husqvarna 305778

Low Fuel Wire

$

$

Currently unavailable

47

Husqvarna 305702

Lamp holder 4 Pin

$

$

Currently unavailable
