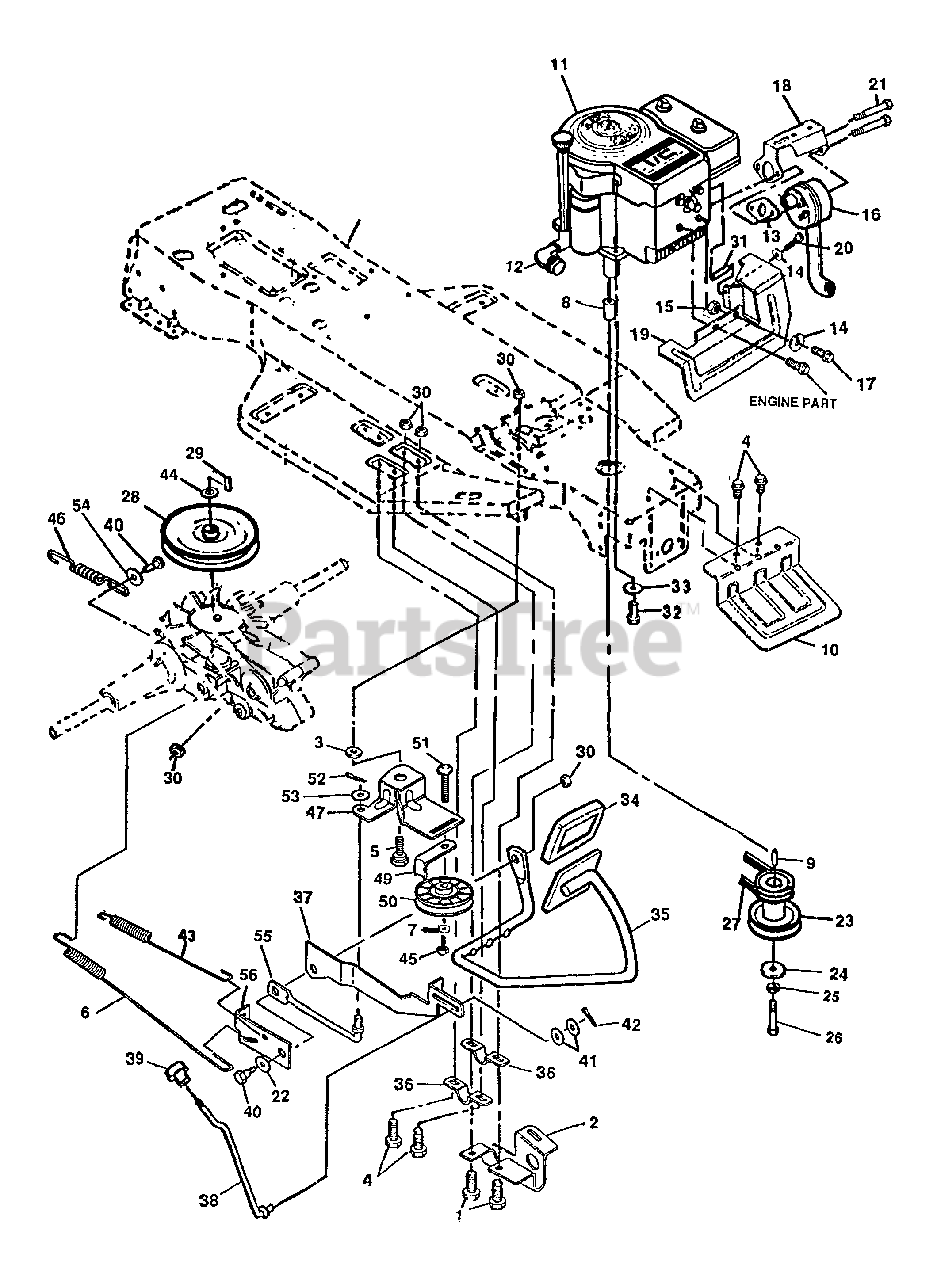

4125 H - Husqvarna 40" Lawn Tractor (1991-01) Drive/Engine Parts Diagram

40" Lawn Tractor

Drive/Engine Parts Diagram

  • Title

1

Husqvarna 122007

Screw, 5/16-18 x 3/4 In.

$

$

Currently unavailable

2

Husqvarna 308340

Front Hanger Bracket

$

$

Currently unavailable

3

Husqvarna 45602

Flatwasher

$

$

Currently unavailable

4

Husqvarna 35497

Screw, Hx Hd, Wshr Tap, 5/16-18 x 1/2 In.

$

$

Currently unavailable

5

Husqvarna 310269

Shoulder Bolt, 5/16-18

$

$

Currently unavailable

6

Husqvarna 309935

Spring, Brake, Hydro

$

$

Currently unavailable

7

Husqvarna 120382

Lockwasher

$

$

Currently unavailable

8

Husqvarna 304246

Spacer, Engine Pulley

$

$

Currently unavailable

9

Husqvarna 57791

Key, Square, 1/4

$

$

Currently unavailable

10

Husqvarna 311530

Deflector, Exhaust

$

$

Currently unavailable

11

Engine 12.5 Horsepower B&S

$

$

Not available

12

Husqvarna 111316

Elbow, 900, 3/8 In.

$

$

Currently unavailable

13

Husqvarna 46708

Gasket, Muffler

$

$

Currently unavailable

14

Husqvarna 120380

Washer, Split Lock

$

$

Currently unavailable

15

Husqvarna 120376

Nut, Hex 5/16-18 Thd.

$

$

Currently unavailable

16

Husqvarna 310284

Muffler, Round 5" Diameter

$

$

Currently unavailable

17

Husqvarna 300314

Screw, Wa Tap, 1/4-20 x 7/8 In.

$

$

Currently unavailable

18

Husqvarna 305409

Heat Shield, Carburetor

$

$

Currently unavailable

19

Husqvarna 310340

Heat Shield, Engine

$

$

Currently unavailable

20

Husqvarna 189293

Screw, Hex Hd, 1/4-20 x 3-1/2 In.

$

$

Currently unavailable

21

Husqvarna 305407

Bolt, Shoulder, 5/16-18 x 4-1/3 In.

$

$

Currently unavailable

22

Husqvarna 30289

Wave Washer

$

$

Currently unavailable

23

Husqvarna 313546

Pulley, Engine

$

$

Currently unavailable

24

Husqvarna 56431

Washer, Pilot

$

$

Currently unavailable

25

Husqvarna 120383

Washer, Split, Lock 7/8 In.

$

$

Currently unavailable

26

Husqvarna 428644

Screw, Hx Hd, 7/16-20 X 5 In.

$

$

Currently unavailable

27

Husqvarna 310275

V-Belt

$

$

Currently unavailable

28

Husqvarna 303109

Pulley

$

$

Currently unavailable

29

Husqvarna 3021

Key, Woodruff, #606

$

$

Currently unavailable

30

Husqvarna 1498

Nut, Hex, Ctrlk, 5/16-18 Thd.

$

$

Currently unavailable

31

Husqvarna 310292

Spacer, Heat Shields

$

$

Currently unavailable

32

Husqvarna 50947

Screw, Hex Hd Tap, 3/8-16 x 1-1/4 In.

$

$

Currently unavailable

33

Husqvarna 138489

Washer, 3/8 In.

$

$

Currently unavailable

34

Husqvarna 304490

Pad, Clutch/Brake, Molded

$

$

Currently unavailable

35

Husqvarna 310258

Assembly, Clutch/Brake Arm

$

$

Currently unavailable

36

Husqvarna 313271

Bracket, Clutch/Brake Arm

$

$

Currently unavailable

37

Husqvarna 310260

Lever, Park Brake

$

$

Currently unavailable

38

Husqvarna 304217

Rod, Parking Brake

$

$

Currently unavailable

39

Husqvarna 304367

Knob, Parking Brake

$

$

Currently unavailable

40

Husqvarna 310087

Shoulder Bolt, 5/16-18 Thd.

$

$

Currently unavailable

41

Husqvarna 120385

Washer, 9/16 In.

$

$

Currently unavailable

42

Husqvarna 121223

Cotter Pin

$

$

Currently unavailable

43

Husqvarna 313660

Spring, Clutch

$

$

Currently unavailable

44

Husqvarna 22053

Retaining Ring

$

$

Currently unavailable

45

Husqvarna 120377

Nut, Flange, 3/8-16 Thd.

$

$

Currently unavailable

46

Husqvarna 309935

Spring, Brake

$

$

Currently unavailable

47

Husqvarna 314786

Arm, Idler

$

$

Currently unavailable

48

Husqvarna 310269

Shoulder Bolt, 3/8-16 Thd.

$

$

Currently unavailable

49

Husqvarna 39659

Belt Retainer

$

$

Currently unavailable

50

Husqvarna 303031

Pulley

$

$

Currently unavailable

51

Husqvarna 45892

Carriage Bolt, 3/8-16 x 1-1/2 In.

$

$

Currently unavailable

52

Husqvarna 36368

Hair Pin

$

$

Currently unavailable

53

Husqvarna 120394

Flatwasher, 13/32 In.

$

$

Currently unavailable

54

Husqvarna 308188

Flatwasher

$

$

Currently unavailable

55

Husqvarna 314738

Clutch Rod

$

$

Currently unavailable

56

Husqvarna 310259

Brake Bracket, Neutral

$

$

Currently unavailable
