41213 - Toro Wheeled Edger (SN: 009000001 - 009999999) (1969) SUBURBAN EDGER-TRIMMER IMPLEMENT Parts Diagram

Wheeled Edger

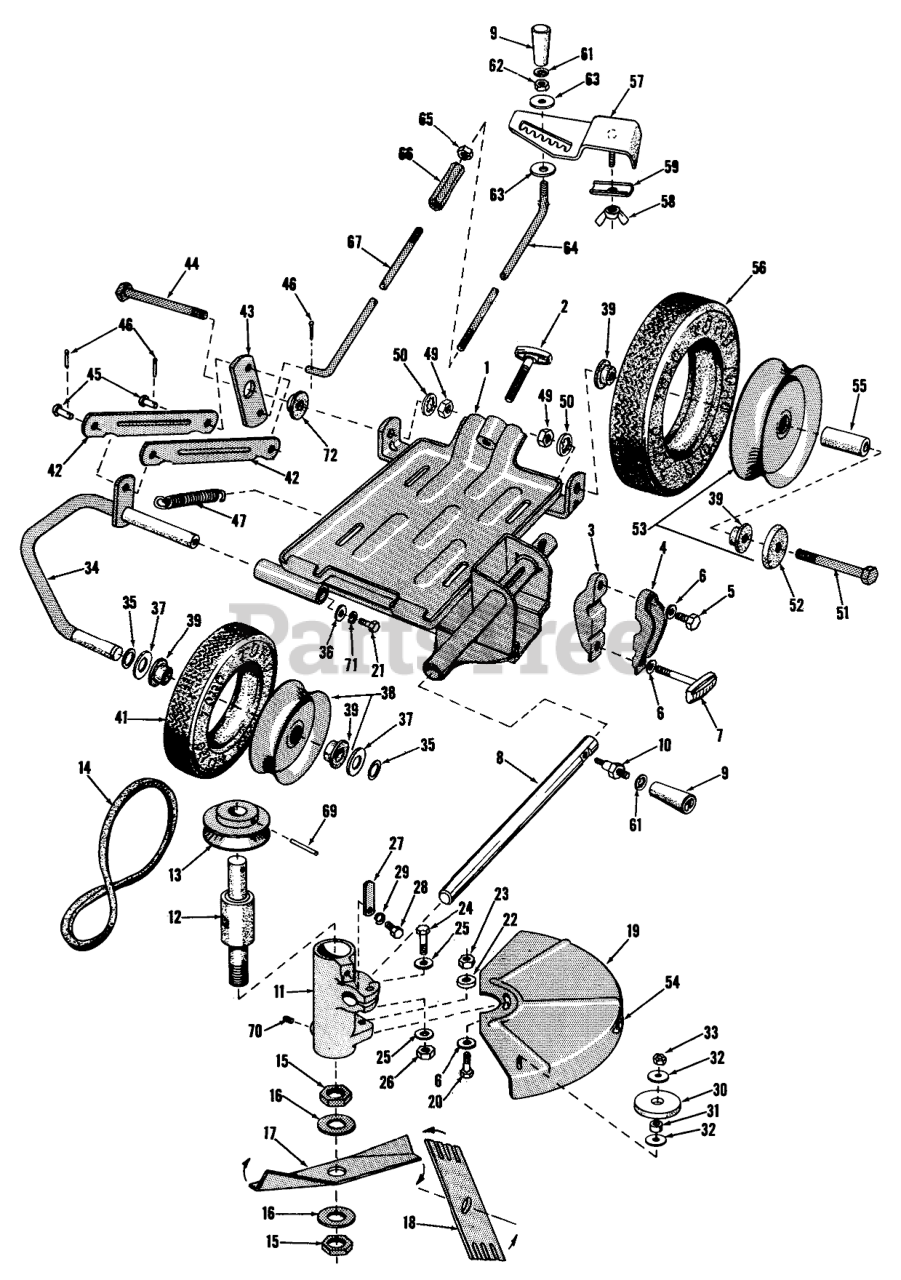

SUBURBAN EDGER-TRIMMER IMPLEMENT Parts Diagram

  • Title
1

Toro 4-2000

Main Frame

$

$

Currently unavailable

2

Toro 3-7454

Clamp Assy.

$

$

Currently unavailable

3

Toro 4-2190

Beam Clamp Assy.

$

$

Currently unavailable

4

Toro 4-2240

Beam Clamp

$

$

Currently unavailable

5

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 4-2170

Stud & Handle Assy.

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Toro 4-2330

Control Knob

$

$

Currently unavailable

10

Toro 4-2360

Screw, Stop

$

$

Currently unavailable

11

Toro 4-1990

Spindle Housing

$

$

Currently unavailable

12

Toro 4-2080

Shaft & Bearing Assy.

$

$

Currently unavailable

13

Toro 4-2090

Pulley

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

16

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 4-2160

Blade, Trimming

$

$

Not available

18

Toro 4-2150

EDGER BLADE B

$

$

Not available

19

Toro 4-2110

Guard

$

$

Currently unavailable

20

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3210-1

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

22

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

23

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

24

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

26

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

27

Toro 4-2100

Belt Guide

$

$

Currently unavailable

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 2-0770

Trimming Roller

$

$

Currently unavailable

31

Toro 2-0780

SPACER

$

$

Not available

32

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

34

Toro 4-2220

Axle Assy.

$

$

Currently unavailable

35

Toro 32120-28

Snap Ring

$

$

Currently unavailable

36

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 2-1640

Washer

$

$

Currently unavailable

38

Toro 2-1030

Wheel w/Bushings, Ref. 39

$

$

Currently unavailable

39

Toro 4-4550

Bushing
(Superseded to 3-1506)

$2.99

$

Usually ships in 3-6 days

0

41

Toro 4-2610

Tires, 6"

$

$

Currently unavailable

42

Toro 4-2250

Link, Connecting

$

$

Currently unavailable

43

Toro 1-5479

Arm, Rear Axle w/Bushing Ref. No. 72

$

$

Currently unavailable

44

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

45

$

$

Currently unavailable

46

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

47

Toro 4-2400

Spring

$

$

Currently unavailable

49

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

50

Toro 3254-3

WASHER-LOCK/INT
(Superseded to 3254-20)

$1.99

$

Usually ships in 3-6 days

0

51

Toro 3212-9

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

52

Toro 2-6710

Hub Cap

$

$

Currently unavailable

53

Toro 4-2670

Wheel w/Bushings, Ref. 39

$

$

Currently unavailable

54

Toro 4-4240

Decal

$

$

Currently unavailable

55

Toro 2-1120

Spindle, Left

$

$

Currently unavailable

Toro 4-2270

Spindle, Right

Note: Not illustrated

$

$

Currently unavailable

56

Toro 4-2600

8 TIRE

$

$

Not available

57

Toro 4-2300

Control Panel

$

$

Currently unavailable

58

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

59

Toro 2-0330

Strap

$

$

Currently unavailable

61

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

62

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

63

Toro 4-2320

WASHER

$

$

Not available

64

Toro 4-2290

Control Rod, Upper

$

$

Currently unavailable

65

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

66

Toro 4-2350

Coupling

$

$

Currently unavailable

67

Toro 4-2370

Control Rod, Lower

$

$

Currently unavailable

69

Toro 32121-35

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

70

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

71

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

72

Toro 3-4984

Bushing

$

$

Currently unavailable

Toro 1-5489

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable
