412 (213-412-100) - Cub Cadet Rear-Tine Tiller (1983) Belts & Pulleys, Shroud Belt Cover And Chain Case Ass'y Parts Diagram

Rear-Tine Tiller

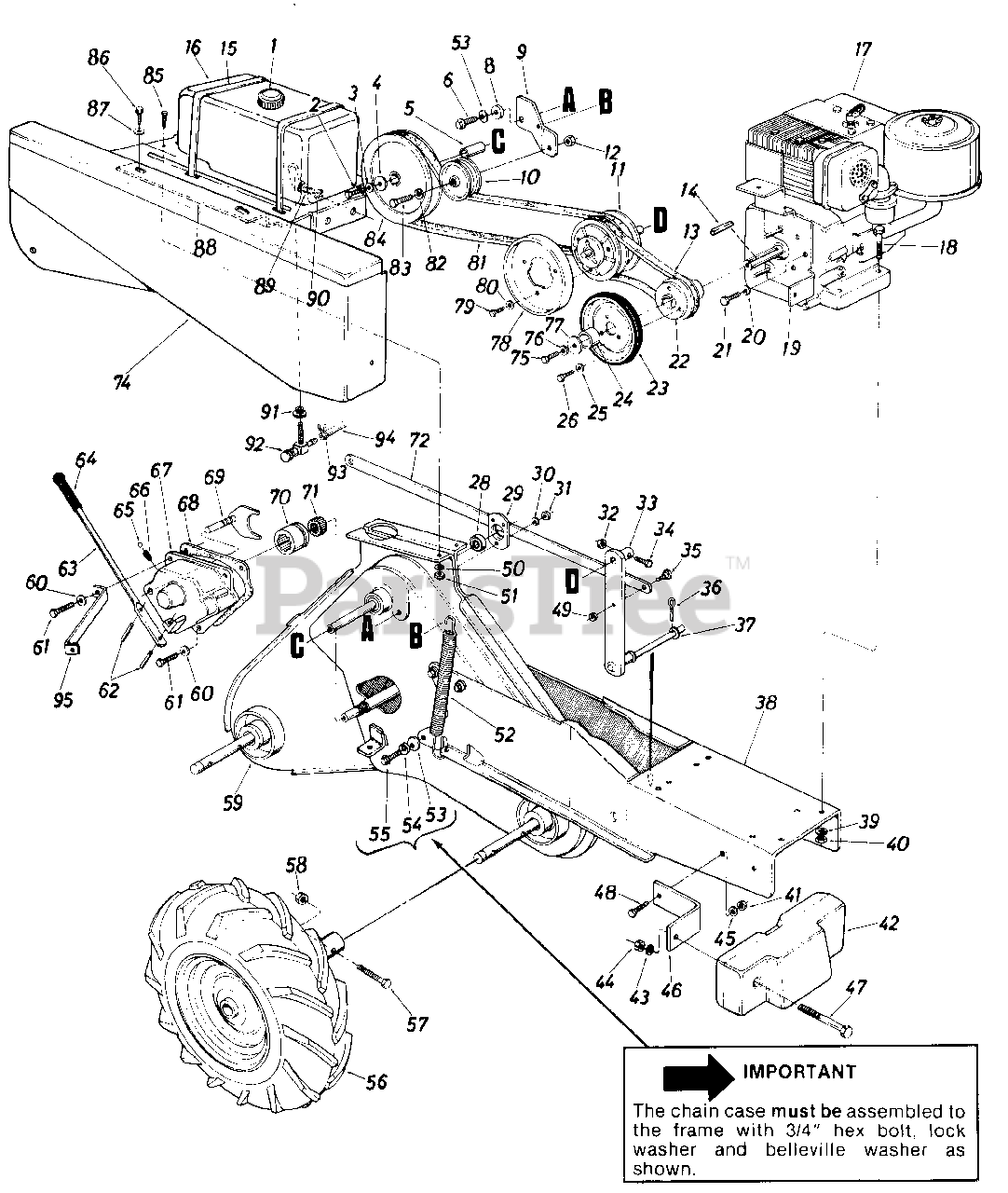

Belts & Pulleys, Shroud Belt Cover And Chain Case Ass'y Parts Diagram

  • Title

1

Cub Cadet 723-0365

Gas Cap

$

$

Not available

2

Cub Cadet 710-0627

Hex L-Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0159

Fl-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 750-0378

Spacer .637" I.D. x .78" O.D. x 1.44" Lg.

$

$

Not available

6

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

8

Cub Cadet 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet 14740

Idler Bracket

$

$

Currently unavailable

10

Cub Cadet 756-0225

Fl-Idler 2.75" Dia.

$

$

Not available

11

Cub Cadet 717-0343

Variable Speed Ass'y.

$

$

Currently unavailable

12

Cub Cadet 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

13

Cub Cadet 754-0220

"V"-Belt 5/8" x 27.0" Lg.
(Superseded to 954-0220)

$

$

Not available

14

Cub Cadet 714-0118

Sq. Key 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

15

Cub Cadet 726-0153

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

16

Cub Cadet 751-0225

Gas Tank

$

$

Not available

17

Engine

$

$

Not available

18

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

19

Cub Cadet 14826

Belt Cover Support Ass'y.

$

$

Currently unavailable

20

Cub Cadet 736-0114

Internal L-Wash. 1/2" I.D.

$

$

Not available

21

Cub Cadet 710-0121

Hex Bolt 1/2-20 x .75" Lg.

$

$

Not available

22

Cub Cadet 756-0296

Engine Pulley Ass'y.

$

$

Not available

23

Cub Cadet 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

24

Cub Cadet 750-0381

Spacer

$

$

Currently unavailable

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

28

Cub Cadet 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

29

Cub Cadet 05034

Bearing Housing 1-3/8" O.D.
(Superseded to 05034A)

$

$

Not available

30

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

33

Cub Cadet 04837

Variable Speed Brkt. Ass'y.

$

$

Currently unavailable

34

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

35

Cub Cadet 738-0380

Shld. Bolt 1/2" Dia. x .25" Lg.

$7.99

$

In Stock, only 1 left!

0

36

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0237

Fl-Wash. .686" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 14741

Frame Ass'y.

Note: Color Code - 452

$

$

Currently unavailable

39

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 4 left!

0

42

Cub Cadet 723-0340

Weight

$

$

Not available

43

Cub Cadet 736-0326

Fl-Wash. .50" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 6

0

44

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 04860

Weight Mtg. Brkt.

$

$

Currently unavailable

47

Cub Cadet 710-0496

Hex Bolt 1/2-13 x 4.50" Lg.
(Superseded to 710-1807)

$11.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

49

Cub Cadet 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

50

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

Cub Cadet 712-0138

Hex Cent. L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 732-0384

Spring Idler Bracket
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

53

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

56

Cub Cadet 734-0806

Wheel Ass'y. Comp. - R.H.

$

$

Currently unavailable

Cub Cadet 734-0807

Wheel Ass'y. Comp. - L.H.

Note: (Not Shown)

$

$

Currently unavailable

57

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

58

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

59

Cub Cadet 15385

Chain Case Ass'y. Comp.

Note: Code N

$

$

Currently unavailable

60

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0601

Hex Tap Tite 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 715-0139

Headed Spiral Pin 3/16 x 13/16" Lg.
(Superseded to 915-0247)

$

$

Not available

63

Cub Cadet 747-0265

Engagement Lever

$

$

Currently unavailable

64

Cub Cadet 720-0143

Grip

$

$

Not available

65

Cub Cadet 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, only 1 left!

0

66

Cub Cadet 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 719-0238

Shift Housing - R.H.

$

$

Not available

Cub Cadet 719-0237

Shift Housing - L.H.

Note: (Not Shown)

$

$

Not available

68

Cub Cadet 721-0162

Gasket - Shift Housing

$

$

Not available

69

Cub Cadet 04858

Shift Yoke Ass'y. - R.H.

$

$

Not available

Cub Cadet 04859

Shift Yoke Ass'y. - L.H.

Note: (Not Shown)

$

$

Not available

70

Cub Cadet 717-0383

Clutch Dog

$

$

Not available

71

Cub Cadet 717-0382

Clutch Dog Driver

$

$

Currently unavailable

72

Cub Cadet 04841

Control Brkt.

$

$

Currently unavailable

74

Cub Cadet 15287

Shroud Belt Cover

Note: Code N

$

$

Currently unavailable

75

Cub Cadet 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

76

Cub Cadet 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

77

Cub Cadet 736-0319

Fl-Wash. .44 I.D. x 1.38" O.D.
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 04836

Friction Disc

$

$

Currently unavailable

79

Cub Cadet 710-0230

Hex Bolt 1/4-28 x .50" Lg.

$

$

Not available

80

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

Cub Cadet 754-0268

"V"-Belt 5/8" x 51" Lg.

$

$

Not available

82

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

83

Cub Cadet 710-0344

Hex Bolt 3/8" x 1.50" Lg.

$5.99

$

In Stock, only 1 left!

0

84

Cub Cadet 756-0297

Input Pulley - Chain Case

$

$

Not available

85

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

86

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 4 left!

0

88

Cub Cadet 15290

Tank Mounting Brkt.

Note: Code N

$

$

Not available

89

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

90

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

91

Cub Cadet 735-0149

Bushing - Gas Line
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

92

Cub Cadet 751-0171

Shut-Off Valve
(Superseded to 951-0171)

$20.99

$

In Stock, only 1 left!

0

93

Cub Cadet 723-0157

Clamp Gas Line

$

$

Not available

94

Cub Cadet 751-0173

Gas Line 14 1/2" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

95

Cub Cadet 15291

Brace

Note: Code N

$

$

Currently unavailable
