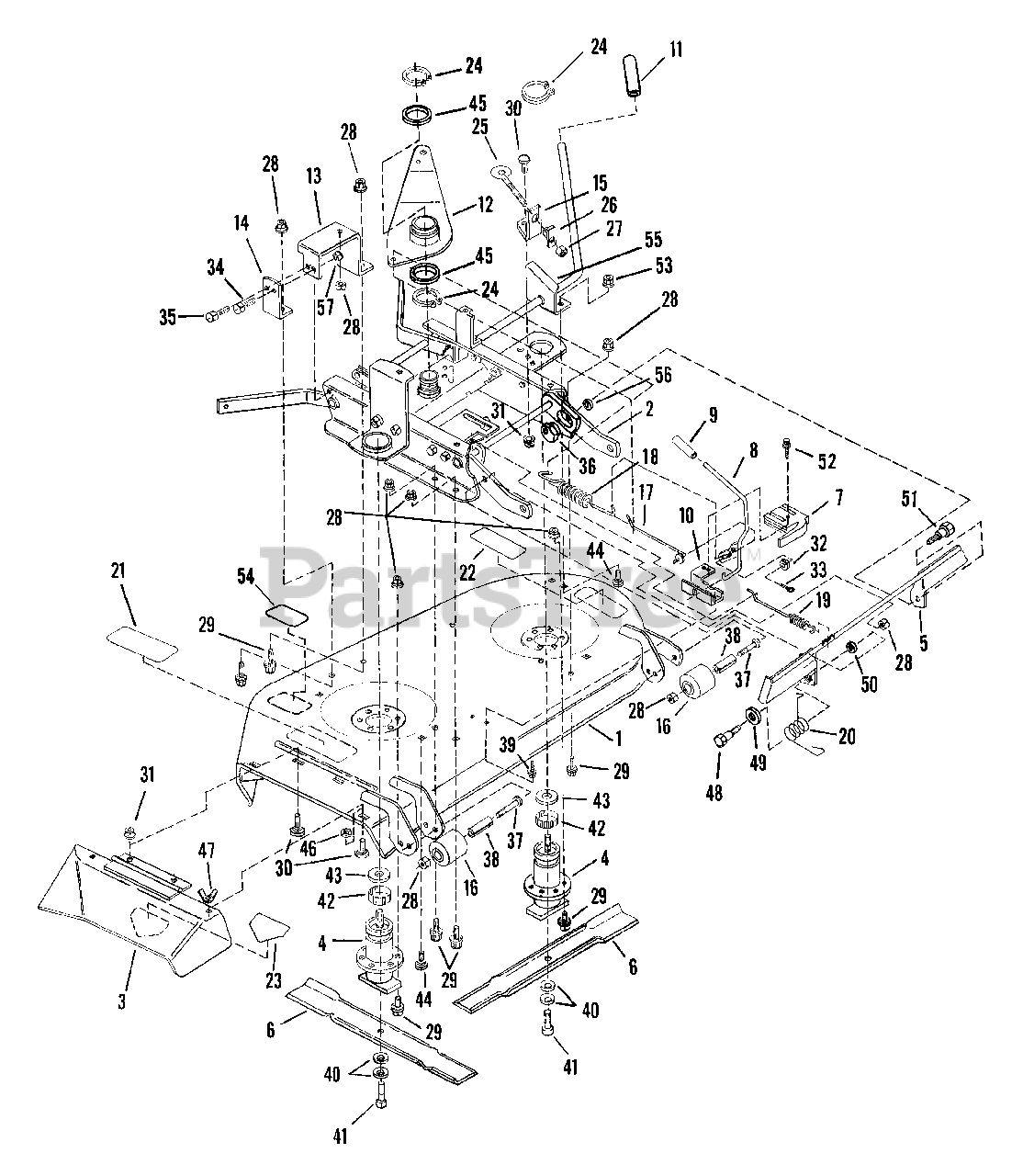

4112X6SR (81468) - Snapper 41" Rear-Engine Riding Mower, 12hp Cutting Deck Parts Diagram

41" Rear-Engine Riding Mower, 12hp

Cutting Deck Parts Diagram

  • Title

1

Snapper 7051916

ASSEMBLY, Deck

Note: Was 49960

$

$

Not available

2

Snapper 59704

ASSEMBLY, Rail

Note: (See Page 4.10 for breakdown)

$

$

Currently unavailable

3

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes item 23)

$159.99

$

Usually ships in 2-12 days

0

4

Snapper 7059628

ASSEMBLY, Spindle
(Superseded to 7059628BMYP)

Note: (See page 4.13 for breakdown)

$341.99

$

Usually ships in 2-12 days

0

5

Snapper 7047886

ASSEMBLY, Pedal

$

$

Not available

6

Snapper 7019795

BLADE, 21"
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

7

Snapper 7018524

SWITCH
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

8

Snapper 7040472

ENGAGE LEVER
(Superseded to 7040472YP)

$34.99

$

Usually ships in 2-12 days

0

9

Snapper 7022295

GRIP, Handle
(Superseded to 7022295YP)

Note: Was 10681

$6.99

$

In Stock, Qty 6

0

10

Snapper 7038021

BRACKET
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 7010684

GRIP, Lever

Note: (For Height Adjustment Lever)

$6.99

$

In Stock, Qty 8

0

12

Snapper 7034758

IDLER ARM
(Superseded to 7034758YP)

Note: Was 37713

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 7036089

SUPPORT, Idler
(Superseded to 7036089YP)

$34.99

$

Usually ships in 2-12 days

0

14

Snapper 7038114

BRACKET

$

$

Not available

15

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

16

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

Note: Was 14661 (Now use 19190 + 15272)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7012055

ROD, Idler
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

18

Snapper 7014168

SPRING, Belt
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

19

Snapper 7014389

SPRING, Latch
(Superseded to 7014389YP)

$11.99

$

In Stock, only 1 left!

0

20

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

21

Snapper 7014852

DECAL, Caution (Rotating Blades)
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

22

Snapper 7014853

DECAL, Caution (Rotating Blades)
(Superseded to 7014853YP)

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 7013010

DECAL, Danger (Keep Hands & Feet Away)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

24

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

25

Snapper 7014302

EYE-BOLT
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

26

Snapper 7014303

T-NUT
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

27

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7090289

NUT, Hex Lock 3/8-24
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

29

Snapper 7090292

SCREW,3/8-24x3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

30

Snapper 7090799

BOLT, 5/16-18x5/8" Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7091601

NUT, Hex Flange 5/16-18 Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091597

PIN, Cotter 3/32x3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7090134

SCREW, 3/8-16x3/4" Hex Head Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

35

Snapper 7090138

SCREW, 3/8-16x1" Hex Head Cap
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7091532

SCREW, 3/8-24x3 3/4" Hex Head Cap
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

38

Snapper 7015272

SPACER
(Superseded to 7015272YP)

Note: Was 14660 (Now use 15272 + 19190)

$7.49

$

Usually ships in 2-12 days

0

39

Snapper 7091819

SCREW, 1/4-20x5/8 Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

40

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

41

Snapper 7090824

SCREW, 3/8-24x1" Hex Head Cap
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

42

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 5

0

43

Snapper 7014526

SPACER

$

$

Not available

44

Snapper 7091547

BOLT, 3/8-16x3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7014795

WASHER, 2" I.D.

$

$

Not available

46

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7090375

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7015446

BOLT, 3/8-24x9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

49

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

50

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7015495

BOLT, 3/8-24x3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

52

Snapper 7090299

SCREW, #10-32x1" Self-Tapping
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

53

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

54

Snapper 14387

PLATE, Model Number

$

$

Currently unavailable

55

Snapper 7038129

BRACKET, Height Indicator

$

$

Currently unavailable

56

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

57

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0
