4111X5S (87382) - Snapper 41" Rear-Engine Riding Mower, 11hp Load Carrier Accessory Parts Diagram

41" Rear-Engine Riding Mower, 11hp

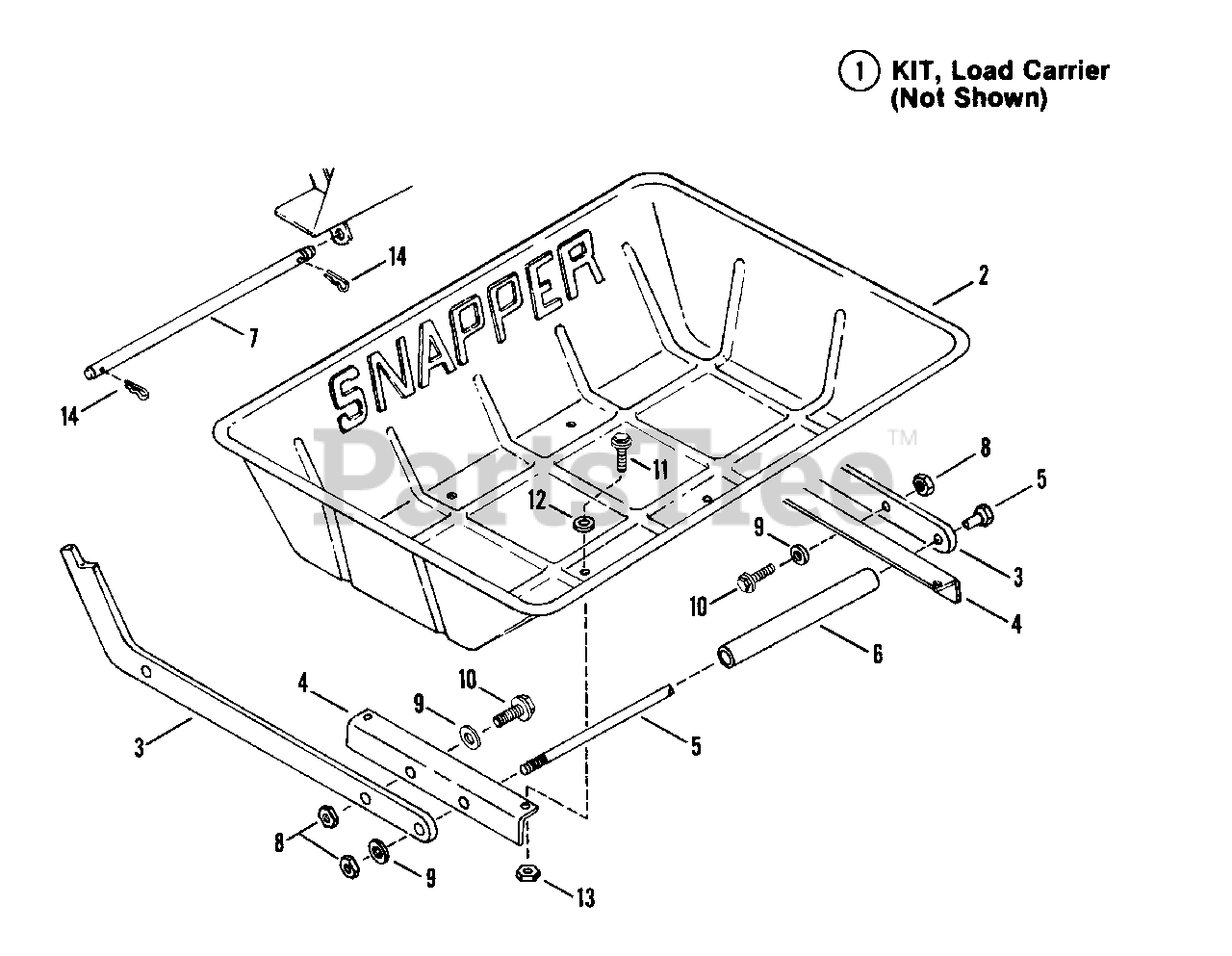

Load Carrier Accessory Parts Diagram

  • Title

1

Snapper 7060197

KIT, Load Carrier

Note: (Includes items 2 thru 14). Not Shown

$

$

Currently unavailable

2

Snapper 7011822

BOX, Tote
(Superseded to 7011822YP)

$119.99

$

Usually ships in 2-12 days

0

3

Snapper 7037342

RAIL, Side
(Superseded to 7037342YP)

$39.99

$

Usually ships in 2-12 days

0

4

Snapper 7031737

BRACE

$

$

Not available

5

Snapper 7011832

BOLT, 3/8-16x10", Tote Box

$

$

Currently unavailable

6

Snapper 7031738

SPACER, Box

$

$

Currently unavailable

7

Snapper 7021153

PIN
(Superseded to 7021153YP)

$21.99

$

Usually ships in 2-12 days

0

8

Snapper 7090499

LOCKNUT, 3/8-16 Hex
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7090138

CAPSCREW, 3/8-16x1", Hex Head
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7090541

CAPSCREW, 1/4-28x3/4" Grade 5, Hex Head
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7090303

LOCKNUT, 1/4-28, Hex
(Superseded to 703972)

$3.49

$

In Stock, Qty 6

0

14

Snapper 7011714

PIN, Hair
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0
