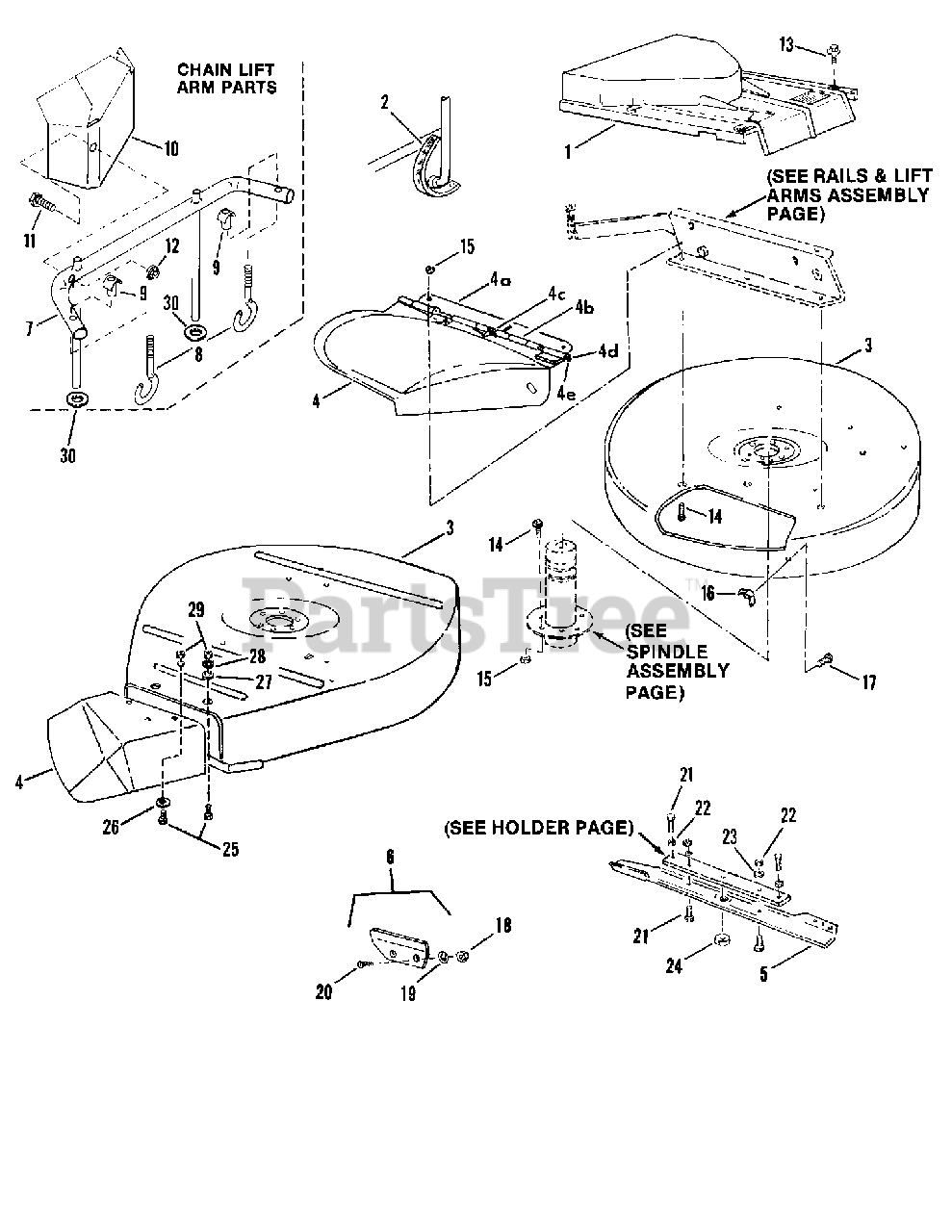

4111X5S (87382) - Snapper 41" Rear-Engine Riding Mower, 11hp Cutting Decks, Deflectors Parts Diagram

41" Rear-Engine Riding Mower, 11hp

Cutting Decks, Deflectors Parts Diagram

  • Title

1

Snapper 7057458

COVER, Spindle
(Superseded to 7057458YP)

Note: Was 57294

$143.99

$

Usually ships in 2-12 days

0

2

Snapper 7031975

INDICATOR PLATE
(Superseded to 7031975YP)

$39.99

$

Usually ships in 2-12 days

0

3

Snapper 7061970

28" DECK (Includes decals)
(Superseded to 7061970YP)

Note: Was 39821 now use 7061970 + 7052555

$

$

Not available

3

Snapper 7061971

30" DECK (Includes decals & deflector)
(Superseded to 7061971YP)

Note: Was 47323 or 60996 now use 7061971 with included 7052553 deflector

$902.99

$

Usually ships in 2-12 days

0

3

Snapper 7061972

33" DECK (Includes decals)
(Superseded to 7061972YP)

Note: Was 35068 now use 7061972 + 7052555

$

$

Not available

4

Snapper 7053934

28" & 33" DEFLECTOR ASS'Y
(Superseded to 7053934YP)

Note: Was 59532 (Includes 4A, - 4E)

$243.99

$

Usually ships in 2-12 days

0

4

Snapper 7037334

30" DEFLECTOR

$

$

Not available

4A

Snapper 7039586

HINGE
(Superseded to 7039586YP)

$60.99

$

Usually ships in 2-12 days

0

4B

Snapper 7052555

28" & 33" DEFLECTOR, Discharge
(Superseded to 7600147YP)

Note: Was 39615

$122.99

$

In Stock, only 1 left!

0

4C

Snapper 7012303

SPRING, Hinge
(Superseded to 7012303YP)

$45.99

$

Usually ships in 2-12 days

0

4D

Snapper 7032323

PIN, Hinge
(Superseded to 7032323YP)

Note: Was 31914

$41.99

$

Usually ships in 2-12 days

0

4E

Snapper 7091294

WASHERS, Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7019515

28" BLADE
(Superseded to 7019515BZYP)

$30.99

$

In Stock, only 4 left!

0

5

Snapper 7018069

30" BLADE
(Superseded to 7018069BZYP)

$32.99

$

In Stock, only 4 left!

0

5

Snapper 7019523

33" BLADE
(Superseded to 7019523BZYP)

$36.99

$

In Stock, Qty 20+

0

6

Snapper 7060480

KIT, AIR LIFT (Hi-Vac)(Not shown)
(Superseded to 7060480SM)

Note: (For 28" & 33" Models)

$

$

Not available

6

Snapper 7060735

AIR LIFT KIT, Standard (2 hole)
(Superseded to 7060735YP)

Note: (For 30" Models)

$62.99

$

In Stock, only 1 left!

0

7

Snapper 7047725

ARM, Chain Lift

$

$

Not available

8

Snapper 7012350

HOOK, Chain
(Superseded to 7012350YP)

$11.99

$

In Stock, only 1 left!

0

9

Snapper 7031928

NUT, Chain Adjusting
(Superseded to 7031928YP)

$3.49

$

In Stock, Qty 7

0

10

Snapper 7035048

SHIELD, Exhaust Heat
(Superseded to 7035048YP)

Note: (For Briggs 11HP)

$52.99

$

In Stock, only 1 left!

0

10

Snapper 7038219

SHIELD, Exhaust Heat

Note: (For Tecumseh 12HP)

$

$

Currently unavailable

11

Snapper 7090528

CAPSCREW, 1/4-28x1-1/2 Hex Head

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7090743

LOCKNUT, 1/4-28 Hex Flange

$

$

Not available

13

Snapper 7090741

SCREW, 1/4-20x5/8 Hex Washer Self-tapping
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

14

Snapper 7090292

SCREW, 3/8-24x3/4 Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

15

Snapper 7090289

LOCKNUT 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

16

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7091508

BOLT, 5/16-18x3/4 Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

18

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090391

LOCKWASHER, 5/16 Int. Tooth
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7090228

SCREW, 5/16-24 Hex
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7090392

SCREW, 1/2-20x1 Hex Head Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7090559

JAM-NUT, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7090509

LOCKWASHER, 1/2 Int. Tooth
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

24

Snapper 7090356

LOCKNUT, 5/8-18 Hex
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

25

Snapper 7090541

SCREW, 1/4-28x3/4 Hex Head Cap
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7011763

WASHER, Fender
(Superseded to 7011763SM)

$4.49

$

In Stock, only 4 left!

0

27

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

28

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7090183

WASHER, 5/8 SAE
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

Snapper 7060825

28" ABS Deck Assy. (Series 0-6) - Complete Unit (Not shown)
(Superseded to 7060825YP)

Note: Was 87799

$916.99

$

Usually ships in 2-12 days

0

Snapper 7060824

30" ABS Deck Assy. (Series X, & 0-6) - Complete Unit (Not shown)

Note: Was 87899

$

$

Currently unavailable

Snapper 7060823

33" ABS Deck Assy. (Series 3-6) - Complete Unit (Not shown)

Note: Was 87999

$

$

Currently unavailable
