4111 SST (80043) - Snapper String Trimmer Crank Case, Cable And Throttle Assembly #4111SST Parts Diagram

String Trimmer

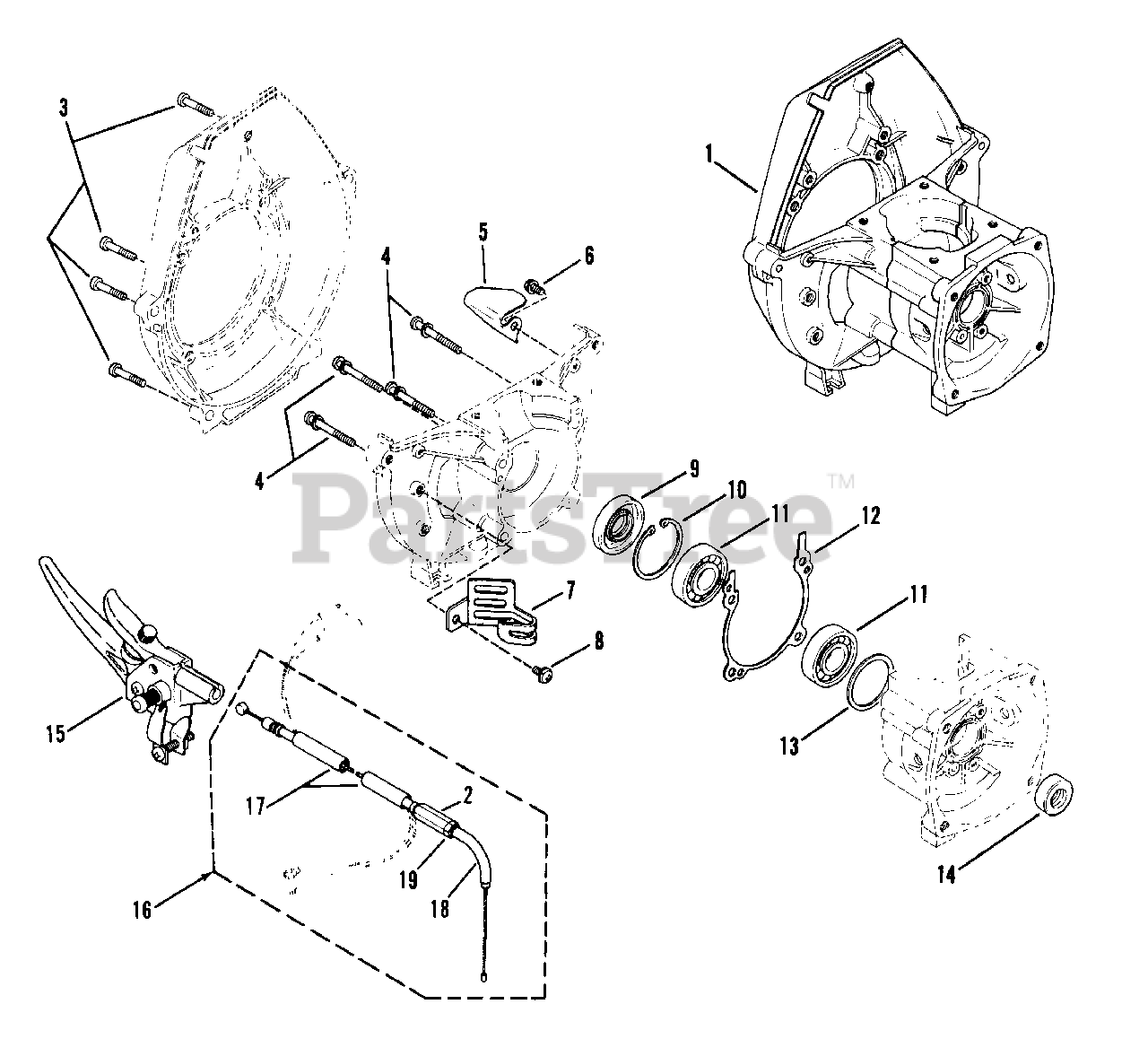

Crank Case, Cable And Throttle Assembly #4111SST Parts Diagram

  • Title
1

Snapper 7044147

CRANK CASE ASSM'Y.

$

$

Currently unavailable

2

Snapper 7044416

NUT, Adjusting

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

5

$

$

Currently unavailable

6

$

$

Currently unavailable

7

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Snapper 7044007

SEAL, Oil

$

$

Currently unavailable

10

Snapper 7044008

SNAP-RING

$

$

Currently unavailable

11

Snapper 7044009

BEARING
(Superseded to 7044009YP)

$8.49

$

Usually ships in 2-12 days

0

12

Snapper 7044010

GASKET, Crankcase

$

$

Currently unavailable

13

Snapper 7044011

SHIM (Set of 3)

$

$

Currently unavailable

14

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 7044079

LEVER, Throttle

$

$

Not available

16

Snapper 7044080

CABLE, Throttle Assm'y.

Note: (Includes items 17 thru 20)

$

$

Not available

17

Snapper 7044249

CABLE & JACKET

$

$

Not available

18

$

$

Currently unavailable

19

Snapper 7044417

NUT, Lock

$

$

Currently unavailable
