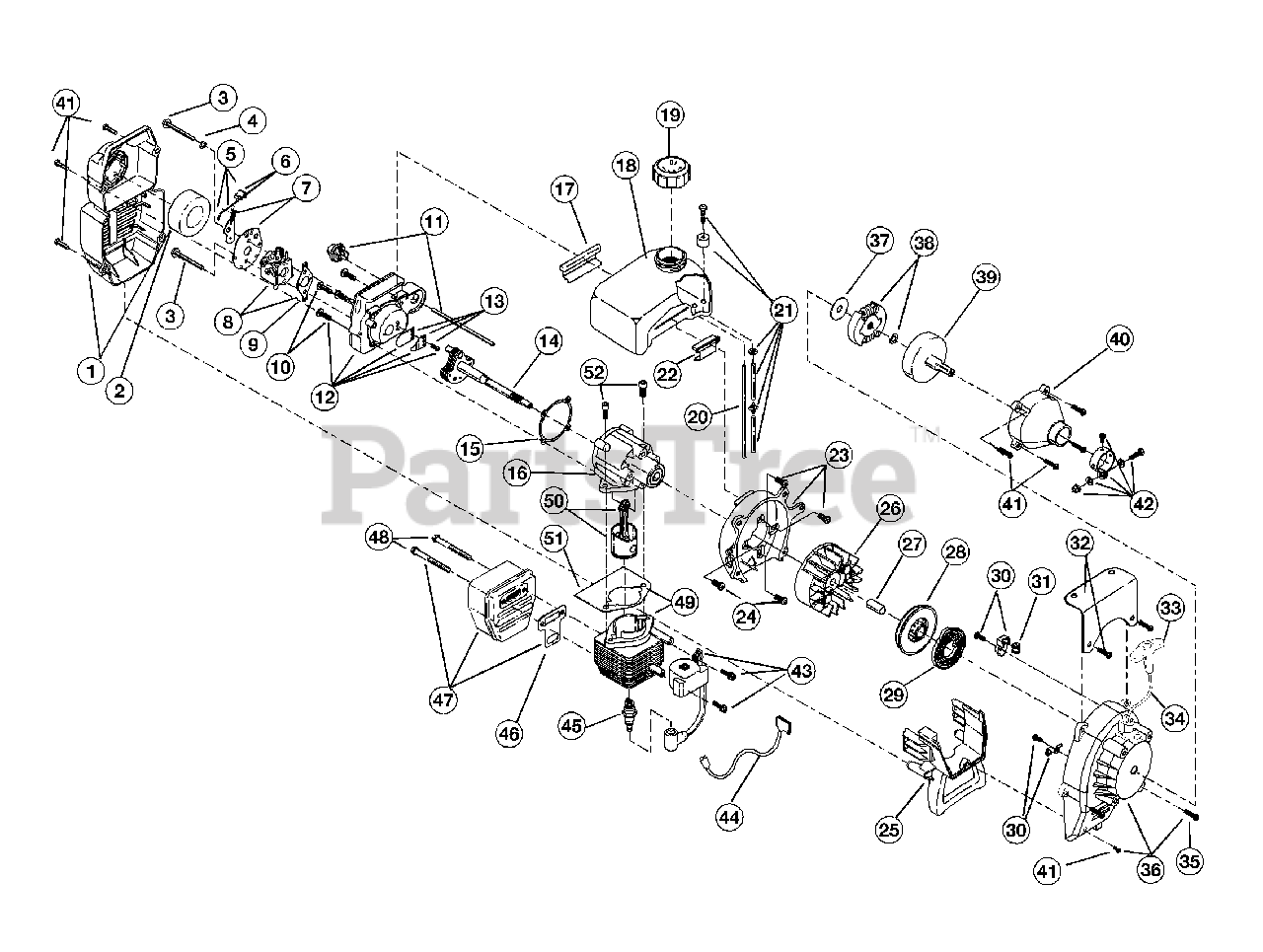

410r (21BK410G034) - Ryobi Tiller Engine Parts Parts Diagram

Tiller

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 41)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Screw

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182061

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$

$

Not available

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

7

MTD 791-182060

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 791-182875

Carburetor Assembly W/Limiter Caps

Note: (includes 9 & 21)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

10

MTD 791-181860

Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

12

MTD 791-182063

Carb Mount Assembly
(Superseded to 753-1196)

Note: (includes 10 & 13)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 791-182790

Power Shaft Assembly

$

$

Not available

15

MTD 791-612115

Carburetor Mount Gasket
(Superseded to 753-1208)

$16.99

$

In Stock, only 1 left!

0

16

MTD 791-182791

Crank Case Service Assembly

Note: (includes 10, 14 & 24)

$

$

Not available

17

MTD 791-612134

Rear Mounting Pad

$

$

Not available

18

MTD 791-180046

Fuel Tank Assembly

Note: (includes 19-21)

$

$

Not available

19

MTD 791-181559

Fuel Cap Assembly

$

$

Currently unavailable

20

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 19

0

21

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

22

MTD 791-145308

Front Mounting Pad

$

$

Not available

23

MTD 791-683065

Shroud Assembly

$

$

Not available

24

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

25

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

26

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

27

MTD 791-181065

Spacer

$

$

Not available

28

MTD 791-181597

Recoil Pulley Assembly
(Superseded to 753-04232)

$

$

Not available

29

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

30

MTD 791-180980

Pulley Retainer Assembly

$7.99

$

Usually ships in 3-6 days

0

31

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

33

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

34

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

35

MTD 791-181345

Housing Screw

$4.49

$

In Stock, Qty 20+

0

36

MTD 791-181909

Starter Housing Assembly

Note: (includes items 28-31, 33-35)

$

$

Not available

37

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

38

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

39

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

40

MTD 791-180098

Clutch Cover Assembly

Note: (includes item 41)

$35.99

$

Usually ships in 3-6 days

0

41

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

42

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

43

MTD 791-182879

Module Assembly

$

$

Currently unavailable

44

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

45

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 2 left!

0

46

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

47

MTD 791-182174

Muffler Assembly

Note: (includes item 46 & 48)

$88.99

$

Usually ships in 3-6 days

0

48

MTD 791-182464

Muffler Mounting Bolt Assembly
(Superseded to 791-147575)

$

$

Not available

49

MTD 791-181622

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes items 51 & 52)

$83.99

$

In Stock, only 1 left!

0

50

MTD 791-684449

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

51

MTD 791-610674

Cylinder Gasket

$3.99

$

Usually ships in 3-6 days

0

52

MTD 791-181870

Cylinder Bolt

$

$

Not available

MTD 791-180011

Engine Gasket Kit

Note: not shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: not shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-180090

O.E.M. Carburetor Repair Kit (Zama)

Note: not shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket-Diaphragm Repair Kit (Walbro)

Note: not shown

$39.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket-Diaphragm Repair Kit (Zama)

Note: not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-180530

Piston Ring

Note: not shown

$

$

Not available

MTD 791-181623

Short Block Assembly
(Superseded to 791-00039)

Note: (items 13, 15, 45, 49-52); not shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 791-181873

Carburetor Limiter Cap Set (Walbro)

Note: not shown

$

$

Not available

MTD 791-181562

Carburetor Limiter Cap Set (Zama)

Note: not shown

$

$

Not available

MTD 791-610309

Crankcase Seal

Note: not shown

$16.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: not shown

$11.99

$

Usually ships in 3-6 days

0
