410r (21A-121R034) - Ryobi Tiller Engine Parts Diagram

Tiller

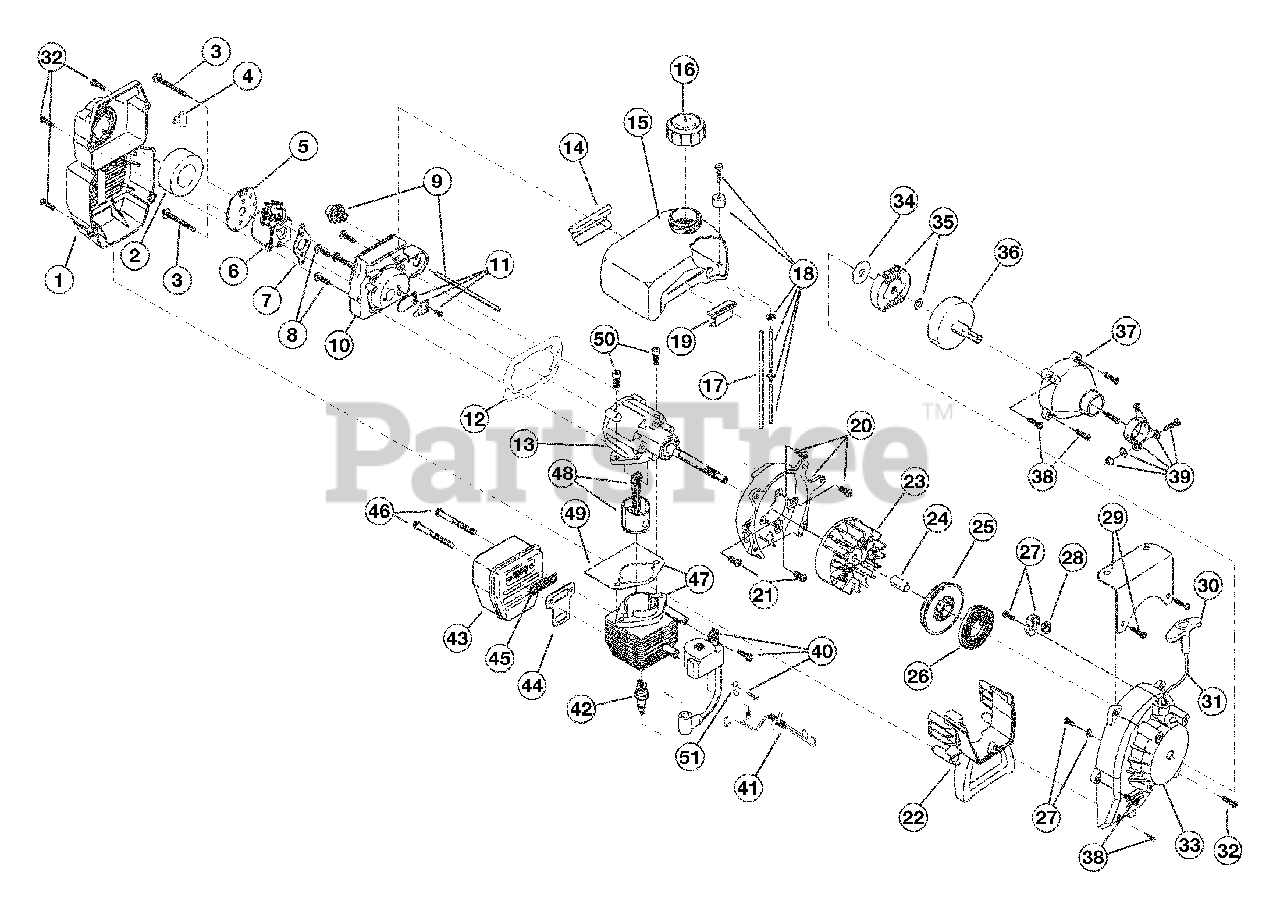

Engine Parts Diagram

  • Title

1

MTD 753-1192

Air Cleaner/Muffler Cover Assembly

Note: (Includes 2 & 38)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Lever

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04331

Carburetor Assembly
(Superseded to 753-04338)

$96.99

$

In Stock, only 1 left!

0

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 18

0

10

MTD 753-1196

Carb Mount Assembly

Note: (Includes 8 & 11)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 791-182791

Crank Case Service Assembly

Note: (Includes 10 & 21)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04306

Fuel Tank Assembly

Note: (Includes 16-18)

$

$

Not available

16

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

17

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 791-683065

Shroud Assembly

Note: (Includes 23)

$

$

Not available

21

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

22

MTD 791-182064

Shroud Extension & Stand
(Superseded to 753-04611)

Note: (Includes 38)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-181065

Spacer

$

$

Not available

25

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

28

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-180317

Fuel Tank Guard Assembly

Note: (Includes 32)

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-181912

Housing Screw

$6.99

$

Usually ships in 3-6 days

0

33

MTD 791-181909

Starter Housing Assembly

Note: (Includes 25-32 & 38)

$

$

Not available

34

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

35

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

36

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

37

MTD 791-180098

Clutch Cover Assembly

Note: (Includes 38)

$35.99

$

Usually ships in 3-6 days

0

38

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

39

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

40

MTD 753-04337

Module Assembly

Note: (Includes 51)

$

$

Not available

41

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

42

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

43

MTD 791-182174

Muffler Assembly

Note: (Includes 44 & 46)

$88.99

$

Usually ships in 3-6 days

0

44

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

45

MTD 791-182747

Spark Arrestor

$

$

Not available

46

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

47

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (Includes 49 & 50)

$83.99

$

In Stock, only 1 left!

0

48

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

49

MTD 753-1197

Cylinder Gasket

$

$

Not available

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

51

MTD 791-611063

Ground Tab

$

$

Not available

MTD 753-04134

Engine Gasket Kit

Note: Not shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit

Note: Not shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket-Diaphragm Repair Kit

Note: Not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04359

Short Block Assembly

Note: (Includes 10, 13, 21, 42, 48-50); Not shown

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Not shown

$11.99

$

Usually ships in 3-6 days

0
