4108 (1690262) - Simplicity 36" Lawn Tractor, 8hp Hood, Grille & Dash Group (4108MS & 4108ES) Parts Diagram

36" Lawn Tractor, 8hp

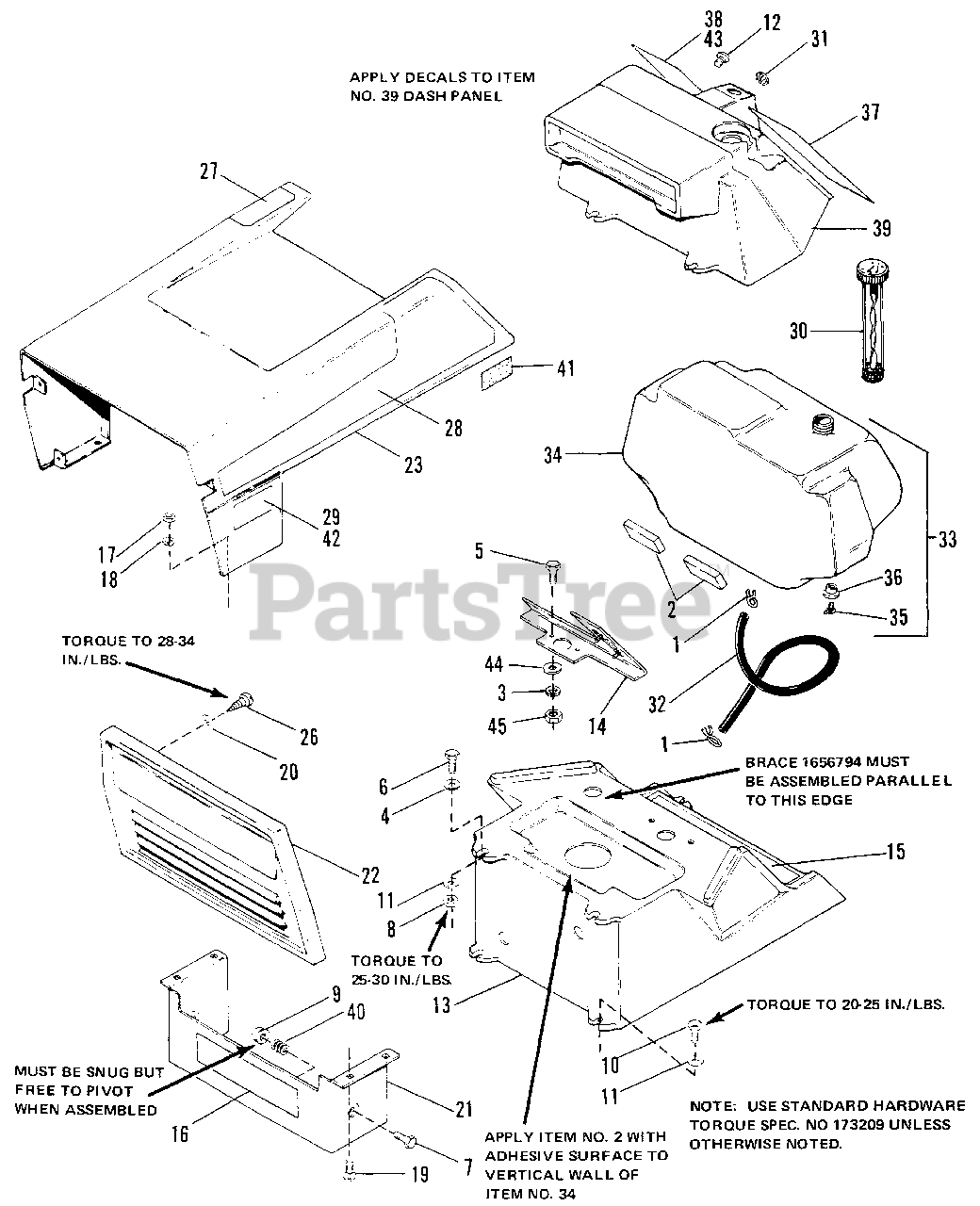

Hood, Grille & Dash Group (4108MS & 4108ES) Parts Diagram

  • Title

1

Simplicity 2154372

CLAMP, Hose

$

$

Not available

2

Simplicity 2173335

PAD, Fuel Tank

$

$

Not available

3

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

5

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1 Gr. 5

$

$

Not available

6

Simplicity 2821961

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4 Gr. 5

$

$

Not available

7

Simplicity 2821977

* CAPSCREW, Hex Hd., 5/16-18 x 1-1/4 (10871)

$

$

Not available

8

Simplicity 2823358

NUT, Hex, Lock, 1/4-20

$

$

Not available

9

Simplicity 2829001

* NUT, Hex, Lock Flange, 5/16-18 (10871)

$

$

Not available

10

Simplicity 2829783

SCREW, Hex, Washer Hd., 1/4-20 x 1

$

$

Not available

11

Simplicity 2831704

WASHER, Lock, Dish Type, 1/4

$

$

Not available

12

Simplicity 2830561

SCREW, Phillips, 1/4-20 x 3/4

$

$

Not available

13

Simplicity 1707393SM

DASHBOARD, Bottom

$

$

Not available

14

Simplicity 1665301

BRACE ASSY, Dash

$

$

Not available

15

Simplicity 1656870

DECAL, Shift

$

$

Not available

16

Simplicity 2153166

DECAL, Simplicity

$

$

Not available

17

Simplicity 2816622SM

* NUT, Hex, 1/4-20 (10871)
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2816964SM

* LOCKWASHER, Spring, 1/4 (10871)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

19

Simplicity 2823333

* BOLT, Round Hd., 1/4-20 x 5/8 (10871)

$

$

Not available

20

Simplicity 923906

* WASHER, Plain, No. 8 (10871)

$

$

Not available

21

Simplicity 1654559

* BUMPER (10871)

$

$

Not available

22

Simplicity 1654802

* GRILLE (10871)

$

$

Not available

23

Simplicity 1654807

* HOOD ASSY (10871)

$

$

Not available

26

Simplicity 1654998

* SCREW, Phillips, 10-32 x 3/8 (10871)

$

$

Not available

27

Simplicity 1657102

DECAL, Hood, R.H.

$

$

Not available

28

Simplicity 1657103

DECAL, Hood, L.H.

$

$

Not available

29

Simplicity 1657141

DECAL, "4108 Electric Start" (Electric Start)

$

$

Not available

30

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

31

Simplicity 2828852

CAP-PLUG, 1/2 Hole

$

$

Not available

32

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

33

Simplicity 1687038SM

FUEL TANK ASSY (Includes Ref. Nos. 34, 35, 36)

$

$

Not available

34

Simplicity 1687038SM

TANK, Fuel

$

$

Not available

35

Simplicity 1664460SM

ELBOW

$9.99

$

In Stock, Qty 20+

0

36

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

37

Simplicity 1656864

DECAL, Dash, L.H.

$

$

Not available

38

Simplicity 1656868

DECAL, Dash, R.H. (4108 Electric Start Only)

$

$

Not available

39

Simplicity 1656891

DASHBOARD,Top

$

$

Not available

40

Simplicity 1729278SM

* SPRING (10871)

$2.49

$

Usually ships in 2-12 days

0

41

Simplicity 164120

* PAD, Felt (10871)

$

$

Not available

42

Simplicity 1657142

DECAL, "4108 Manual Start" (Manual Start)

$

$

Not available

43

Simplicity 1656872

DECAL, Dash, R.H. (4108 Manual Start Only)

$

$

Not available

44

Simplicity 2824356

WASHER, Plain

$

$

Not available

45

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0
