4108 (1690262) - Simplicity 36" Lawn Tractor, 8hp Hood, Grille & Dash Group (4108ES, 4111) Parts Diagram

36" Lawn Tractor, 8hp

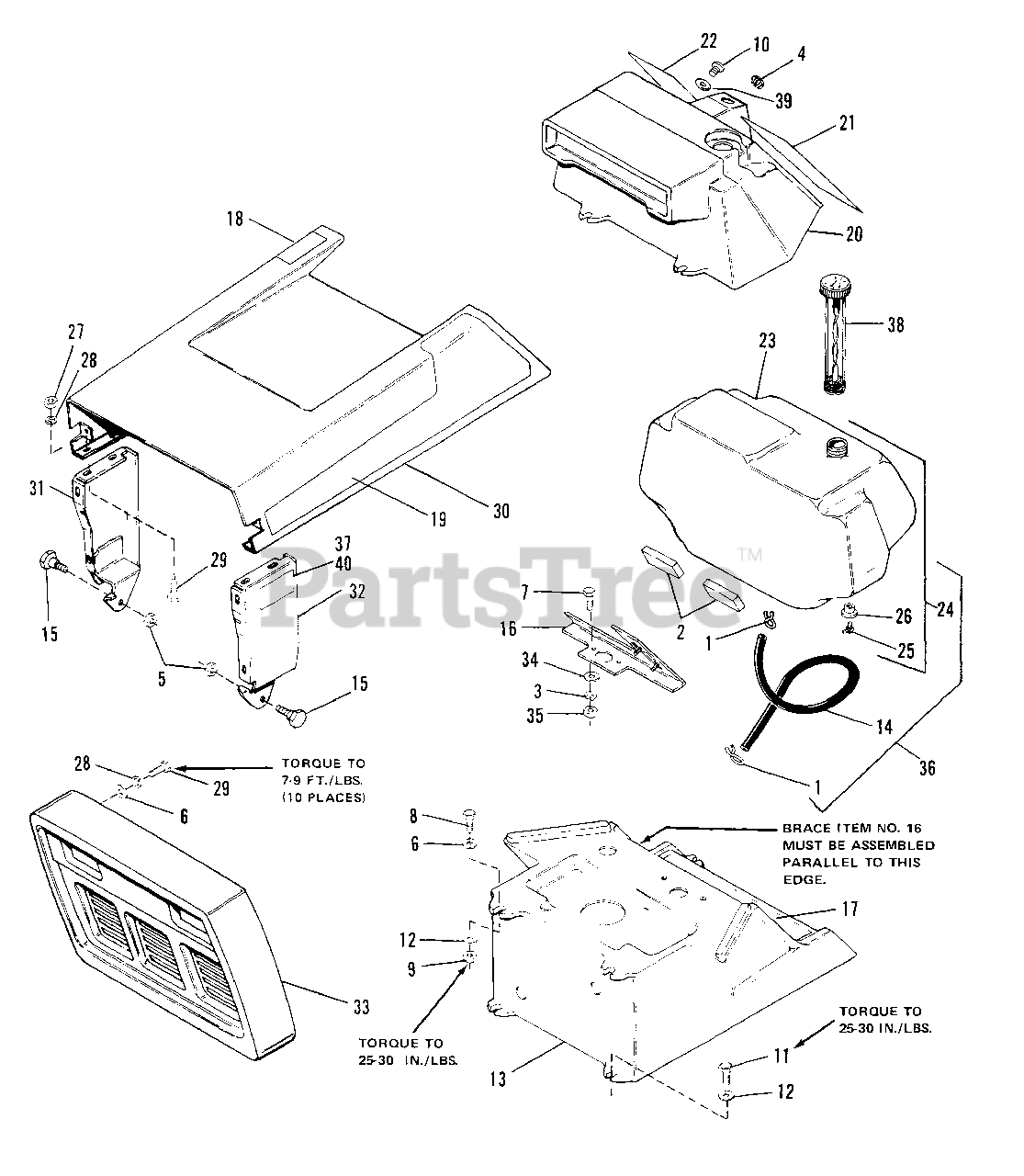

Hood, Grille & Dash Group (4108ES, 4111) Parts Diagram

  • Title

1

Simplicity 2154372

CLAMP, Hose

$

$

Not available

2

Simplicity 2173335

PAD, Fuel Tank

$

$

Not available

3

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Simplicity 2828852

CAP, Plug

$

$

Not available

5

Simplicity 2827557

* LOCKNUT, Flange, Whiz, 5/16-18 (10872)

$

$

Not available

6

Simplicity 2817377

* WASHER, Plain, 1/4 (10872)

$

$

Not available

7

Simplicity 2825592SM

CAPSCREW, Hex Hd., 3/8-16 x 1

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 2821961

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

10

Simplicity 2830561

SCREW #1 4AB x 3/4

$

$

Not available

11

Simplicity 2829783

SCREW, Taptite Hex, 1/4-20 x 1

$

$

Not available

12

Simplicity 2831704

WASHER, Dish, 1/4

$

$

Not available

13

Simplicity 1707393SM

DASHBOARD, Bottom

$

$

Not available

14

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

15

Simplicity 1656792SM

* BOLT, Shoulder, 5/16-18 (10872)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1665301

BRACE ASSY, Dash

$

$

Not available

17

Simplicity 1656870

DECAL, Shift Pattern

$

$

Not available

18

Simplicity 1657102

DECAL, Hood, R.H.

$

$

Not available

19

Simplicity 1657103

DECAL, Hood, L.H.

$

$

Not available

20

Simplicity 1656891

DASH, Top

$

$

Not available

21

Simplicity 1656864

DECAL, Dash, L.H.

$

$

Not available

22

Simplicity 1656868

DECAL, Dash, R.H.

$

$

Not available

23

Simplicity 1687038SM

TANK, Fuel

$

$

Not available

24

Simplicity 1687038SM

FUEL TANK SUB ASSY

$

$

Not available

25

Simplicity 1664460SM

ELBOW

$9.99

$

In Stock, Qty 20+

0

26

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

27

Simplicity 2816622SM

* NUT, Hex, 1/4-20 (10872)
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 2816964SM

* LOCKWASHER, Spring, 1/4 (10872)
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

29

Simplicity 2821958

* CAPSCREW, Hex Hd., 1/4-20 x 1/2 (10872)

$

$

Not available

30

Simplicity 1657799

* HOOD (10872)

$

$

Not available

31

Simplicity 1656786

* PANEL ASSY, R.H. (10872)

$

$

Not available

32

Simplicity 1656787

* PANEL ASSY, L.H. (10872)

$

$

Not available

33

Simplicity 1657785

* GRILLE (10872)

$

$

Not available

34

Simplicity 2824356

WASHER, Plain

$

$

Not available

35

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

36

Simplicity 1687038SM

TANK ASSY, Fuel

$

$

Not available

37

Simplicity 1663274

DECAL, 4111

$

$

Not available

38

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

39

Simplicity 2816955

WASHER

$

$

Not available

40

Simplicity 1657141

DECAL, 4108 Electric Start

$

$

Not available
