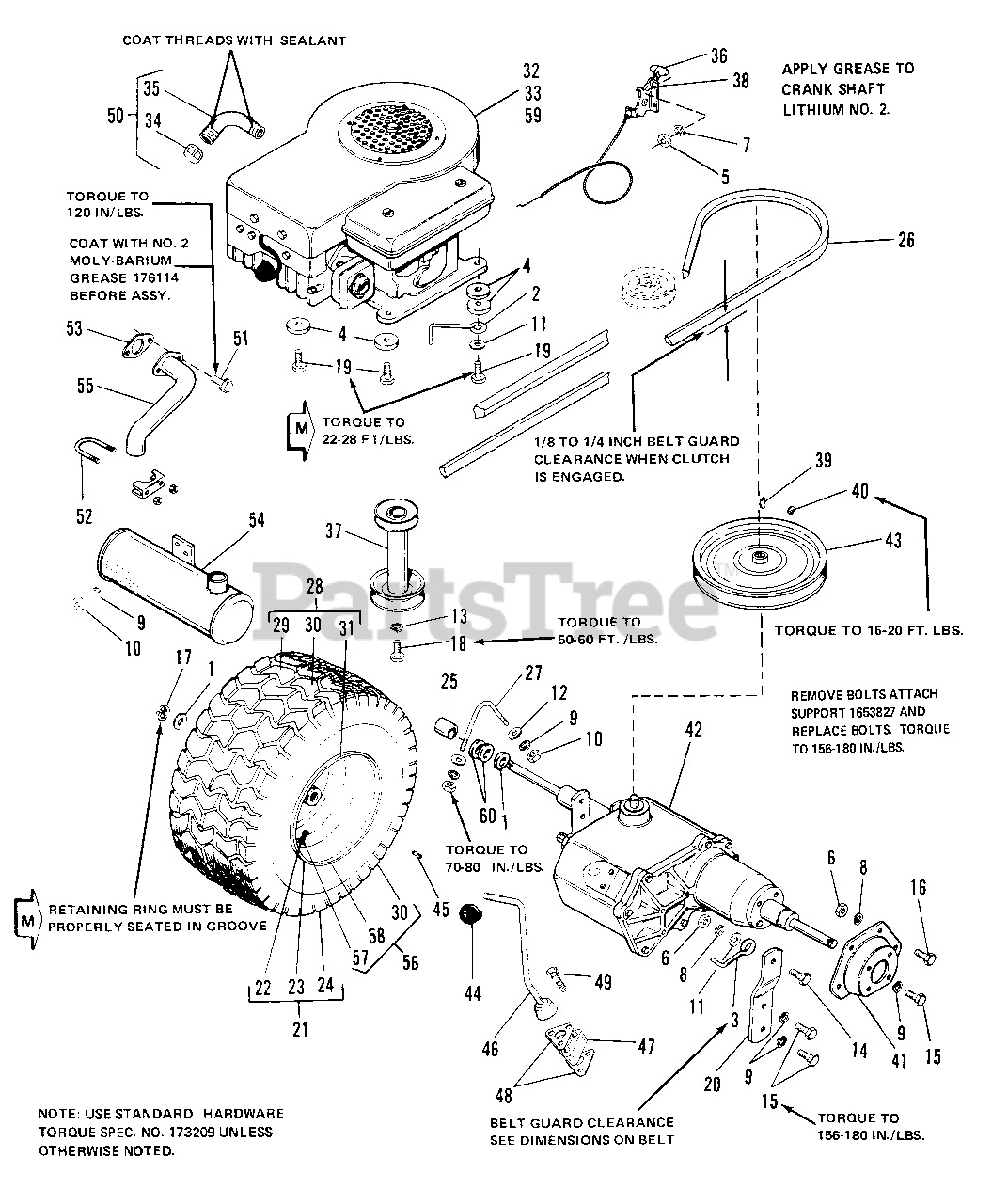

4108 (1690262) - Simplicity 36" Lawn Tractor, 8hp Engine & Drive Group (4108MS, 4108ES, 4111) Parts Diagram

36" Lawn Tractor, 8hp

Engine & Drive Group (4108MS, 4108ES, 4111) Parts Diagram

  • Title

1

Simplicity 2154071

WASHER

$

$

Not available

2

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

3

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172908

WASHER

$

$

Not available

5

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

9

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: Ref. No. 9 Qty. 8 used on 4108, Qty. 10 used on 4111 Ref. No. 10, Qty. 2 used on 4108, Qty. 4 used on 4111

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: Ref. No. 9 Qty. 8 used on 4108, Qty. 10 used on 4111 Ref. No. 10, Qty. 2 used on 4108, Qty. 4 used on 4111

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

13

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

14

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4 Gr. 5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1 Gr. 5

$

$

Not available

16

Simplicity 2821965

CAPSCREW,HexHd., 3/8-16 x 3/4 Gr. 5

$

$

Not available

17

Simplicity 2827794SM

KLIPRING, .75 Dia Shaft

$3.49

$

In Stock, Qty 17

0

18

Simplicity 2828038

CAPSCREW, Hex Hd., 7/16-20 x 1-1/4, Gr. 8

$

$

Not available

19

Simplicity 2830603

SCREW, Taptite, Washer Hd., 3/8-16 x 1-3/4

$

$

Not available

20

Simplicity 1653979

SUPPORT, Strap

$

$

Not available

21

Simplicity 1654705

WHEEL & TIRE ASSY, 18 x 6-1/2-8 (4108 Manual Start Only)

$

$

Not available

22

Simplicity 2171270

VALVE STEM & CAP (Used on 4108 ES & MS)

$

$

Not available

23

Simplicity 1654704

WHEEL ASSY (4108 Manual Start Only)

$

$

Not available

24

Simplicity 1654706

* TIRE, 18 x 6-1/2-8 (4108 Manual Start Only)

$

$

Not available

25

Simplicity 1663180SM

SPACER

$60.99

$

In Stock, only 1 left!

0

26

Simplicity 1703836SM

V-BELT, Arbor Drive, 50"

$45.99

$

In Stock, Qty 20+

0

27

Simplicity 1655084

BOLT, Axle

$

$

Not available

28

Simplicity 1655913

WHEEL & TIRE ASSY, 18 x 8-1/2-8 (4108 Electric Start Only)

$

$

Not available

29

Simplicity 1713170SM

* TIRE, 18 x 8-1/2-8 (4108 Electric Start Only)(Goodyear)

$

$

Not available

30

Simplicity 1655911

WHEEL (4018 Electric Start & 4111 Only)

$

$

Not available

31

Simplicity 1713170SM

* TIRE, 18 x 8-1/2-8 (4108 Electric Start Only)(Carlisle)

$

$

Not available

32

ENGINE ASSY, 8 HP, Briggs & Stratton (Electric Start Synchro-Balanced)

$

$

Not available

33

ENGINE, 8 HP, Briggs & Stratton, Model 252707, Type 0130-01 (Manual Start Synchro-Balanced)

$

$

Not available

34

Simplicity 2801752

PIPE, Cap, 3/8

$

$

Not available

35

Simplicity 1658032SM

OIL DRAIN PIPE

$21.99

$

Usually ships in 2-12 days

0

36

Simplicity 1656099SM

KNOB
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

37

Simplicity 1657118SM

PULLEY ASSY, Engine

$164.99

$

Usually ships in 2-12 days

0

38

Simplicity 1687058SM

CONTROL ASSY

$54.99

$

Usually ships in 2-12 days

0

39

Simplicity 2818312SM

KEY, Woodruff, No. 61, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

40

Simplicity 2828721

SCREW, Set, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

41

Simplicity 1653827

SUPPORT, L.H.

$

$

Not available

42

TRANSMISSION, Peerless

$

$

Not available

43

Simplicity 1656749SM

PULLEY

$159.99

$

Usually ships in 2-12 days

0

44

Simplicity 1729255SM

BALL, Knob

$12.99

$

Usually ships in 2-12 days

0

45

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

46

LEVER, Shift

$

$

Not available

47

BLOCK, Riser

$

$

Not available

48

GASKET

$

$

Not available

49

SCREW, Washer Hd., 1/4-20 x 1-3/4

$

$

Not available

50

Simplicity 1658032SM

OIL DRAIN PIPE & CAP SUB-ASSY

$21.99

$

Usually ships in 2-12 days

0

51

Simplicity 2830591

SCREW, Whiz-Lock, 5/16-18 x 3/4 (4111 Only)

$

$

Not available

52

Simplicity 2831893SM

CLAMPASSY, Exhaust (4111 Only)

$

$

Not available

53

Simplicity 1650670SM

GASKET, Muffler (4111 Only)

$8.49

$

Usually ships in 2-12 days

0

54

Simplicity 1655848SM

MUFFLER (4111 Only)

$164.99

$

In Stock, only 1 left!

0

55

Simplicity 1655860SM

PIPE, Exhaust (4111 Only)

$112.99

$

In Stock, only 1 left!

0

56

Simplicity 1657905

WHEEL & TlRE ASSY, 18 x 9-1/2-8 (4111 Only)

$

$

Not available

57

Simplicity 2156305

VALVE (4111 Only)

$

$

Not available

58

Simplicity 2156312

* TIRE 18 x 9-1/2-8 (4111 Only)

$

$

Not available

59

ENGINE, 11 HP, Briggs & Stratton, Model 191702, Type 5626-01, Syncro Bal.

$

$

Not available

60

Simplicity 2824368

WASHER Special

$

$

Not available
