4108 (1690261) - Simplicity 36" Lawn Tractor, 8hp Electrical Group (4108ES & 4111) Parts Diagram

36" Lawn Tractor, 8hp

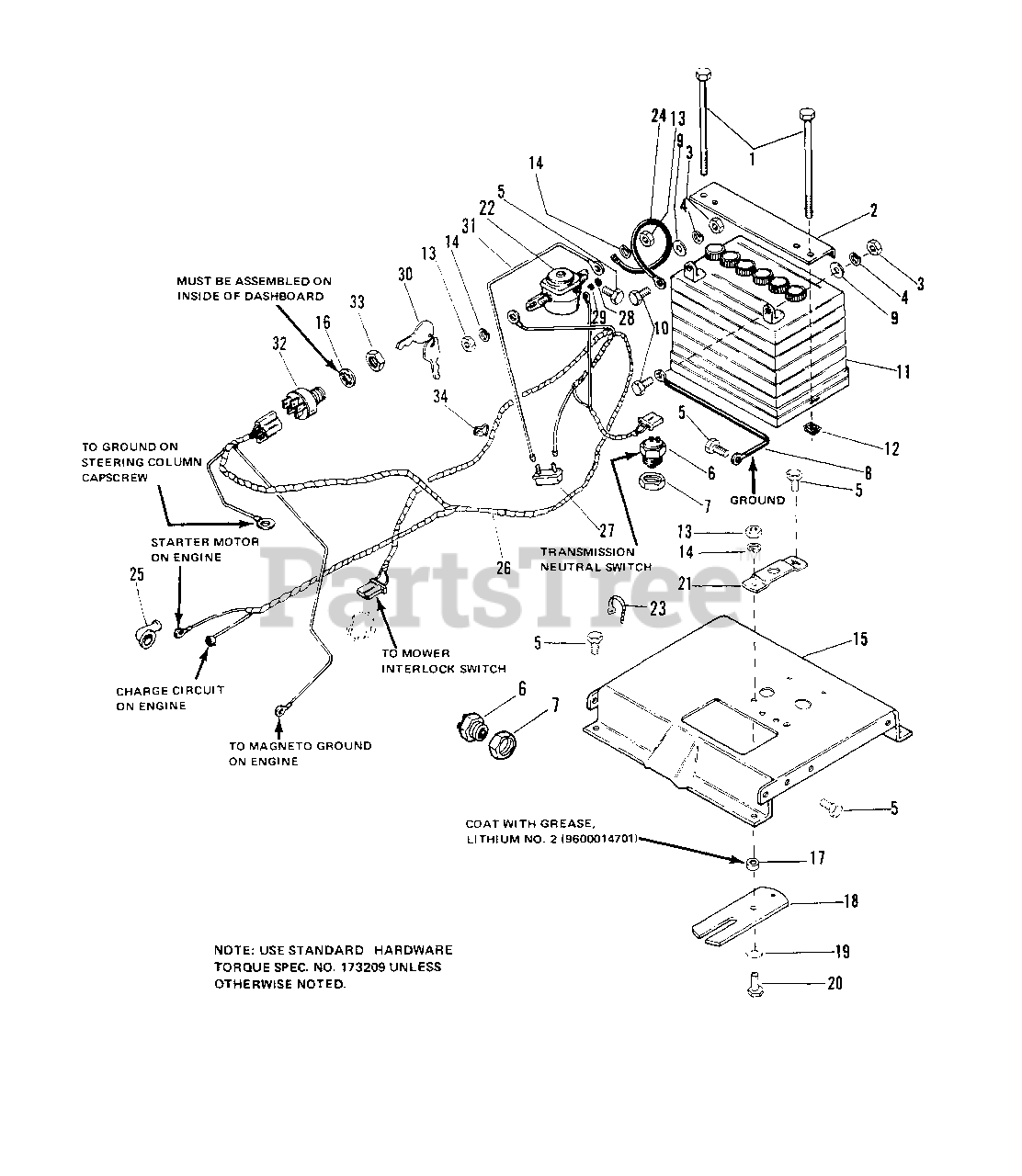

Electrical Group (4108ES & 4111) Parts Diagram

  • Title

1

Simplicity 2828634

CAPSCREW, Hex Hd., 1/4-20 x 7

$

$

Not available

2

Simplicity 1718596

HOLD-DOWN, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

3

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2816964SM

LOCKWASHER, Spring, 5/16
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Simplicity 2827428

SCREW, Hex, Washer Hd, 1/4-20 x 3/8

$

$

Not available

6

Simplicity 1654634SM

SWITCH, Interlock

$46.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930647

NUT, Lock, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 2122213

CABLE

$

$

Not available

9

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

10

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20
(Superseded to 703925)

Note: No longer needed if battery has threaded post.

$4.49

$

In Stock, Qty 7

0

11

BATTERY

$

$

Not available

12

Simplicity 2826022

NUT, Retainer, 1/4-20

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1655087

SUPPORT, Frame

$

$

Not available

16

Simplicity 2818906

LOCKWASHER, Internal Tooth, 5/8

$

$

Not available

17

Simplicity 1655085

SPACER

$

$

Not available

18

Simplicity 1655086

LEVER, Switch

$

$

Not available

19

Simplicity 2157643

WASHER

$

$

Not available

20

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

21

Simplicity 1655600

BRACKET, Switch

$

$

Not available

22

Simplicity 2122216SM

SOLENOID

$

$

Not available

23

Simplicity 2832747SM

CABLE, Tie

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1707056SM

CABLE

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

26

Simplicity 1657351

WIRING HARNESS (1690261 Only)

$

$

Not available

26

Simplicity 1657351

WIRING HARNESS (1690343 Only)(05071)

$

$

Not available

26

Simplicity 1655747

WIRING HARNESS (1690343 Only)

$

$

Not available

27

Simplicity 2172163

BREAKER, Circuit

$

$

Not available

28

Simplicity 2817415

NUT, Hex, Machine, No. 10-32

$

$

Not available

29

Simplicity 2822711

LOCKWASHER, External Tooth, No. 10

$

$

Not available

30

Simplicity 1717163SM

KEYS & RING ASSY

$8.99

$

In Stock, Qty 20+

0

31

Simplicity 1665237SM

WIRE ASSY

$11.99

$

In Stock, Qty 7

0

32

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 10

0

33

Simplicity 2122234SM

NUT, Hex, 5/8-32 (Ignition)
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

34

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0
