36" Lawn Tractor, 8hp

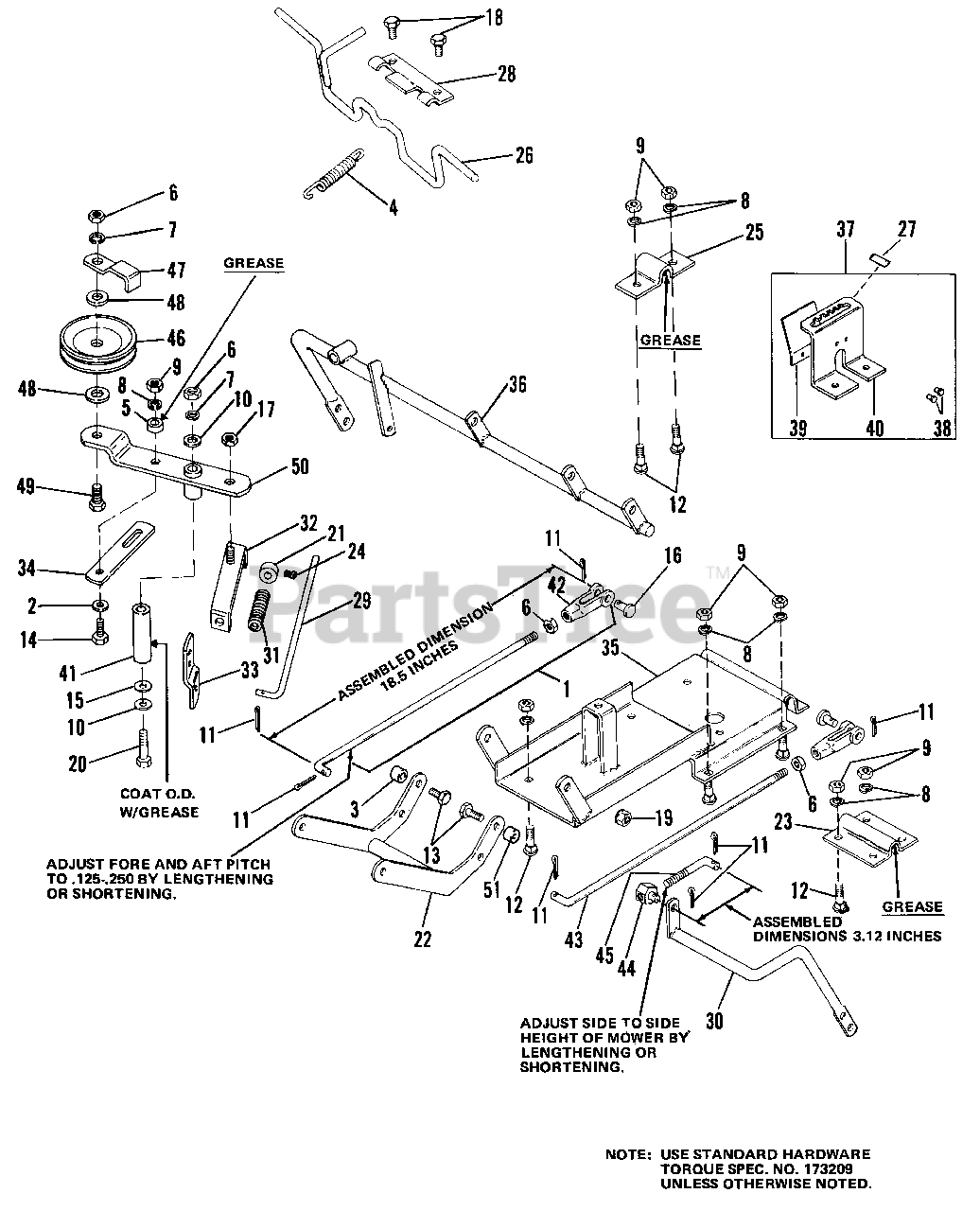

36" Clutch & Wheel Support Group Parts Diagram

  • Title

1

Simplicity 1658040

ROD ASSY, Height Adjusting (Includes Ref. No. 6. 42, & 43)

$

$

Not available

2

Simplicity 2153072

WASHER

$

$

Not available

3

Simplicity 2153073

SPACER

$

$

Not available

4

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

5

Simplicity 2165034SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

6

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 6

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 981447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

12

Simplicity 2820562

BOLT, Carriage, Sht Nk., 5/16 x 3/4

$

$

Not available

13

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

14

Simplicity 2821333

CAPSCREW, Hex Hd, 5/16-18 x 1

$

$

Not available

15

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 2823087

PIN, Yoke, 3/8

$

$

Not available

17

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

18

Simplicity 2827428

SCREW, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

19

Simplicity 2830645

NUT, Flange, 3/8-16

$

$

Not available

20

Simplicity 1928957SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2 Gr. 8

$6.49

$

In Stock, only 2 left!

0

21

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

22

Simplicity 1674011

ROCKER ARM ASSY
(Superseded to 1674011ASM)

$66.99

$

Usually ships in 2-12 days

0

23

Simplicity 1653768ASM

CLAMP, Wheel Support

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 2828804

SETSCREW, Sq. Hd., Cup Pt., 1/4-20 x 3/8

$

$

Not available

25

Simplicity 1654655

STRAP

$

$

Not available

26

Simplicity 1655425SM

ROD ASSY, Brake

$33.99

$

Usually ships in 2-12 days

0

27

Simplicity 1656855

DECAL, Mower Height

$

$

Not available

28

Simplicity 1655507

SUPPORT, Brake

$

$

Not available

29

Simplicity 2171320SM

CLUTCH ROD

$

$

Not available

30

Simplicity 1668098SM

SUPPORT ASSY, L.H. Roller
(Superseded to 1668098ASM)

$170.99

$

Usually ships in 2-12 days

0

31

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

32

Simplicity 2108662SM

ROD GUIDE

$

$

Not available

33

Simplicity 1656991ASM

ARM, Pivot

$25.99

$

Usually ships in 2-12 days

0

34

Simplicity 1701563SM

LEVER, Brake

$

$

Not available

35

Simplicity 1685253SM

SUPPORT ASSY, Mower

$148.99

$

Usually ships in 2-12 days

0

36

Simplicity 1668099

SUPPORT ASSY, R.H. Roller
(Superseded to 1668099ASM)

$311.99

$

Usually ships in 2-12 days

0

37

Simplicity 1663223SM

QUADRANT ASSY

$34.99

$

Usually ships in 2-12 days

0

38

Simplicity 2828706

RIVET

$

$

Not available

39

Simplicity 1602200

SPRING, Mower Control

$

$

Not available

40

Simplicity 1663223SM

QUADRANT

$34.99

$

Usually ships in 2-12 days

0

41

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

42

Simplicity 2108157SM

CLEVIS

$24.99

$

Usually ships in 2-12 days

0

43

Simplicity 1702502SM

ROD, Height Adjustment

$

$

Not available

44

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 1 left!

0

45

Simplicity 1655811SM

ROD, Bolt

$20.99

$

In Stock, only 2 left!

0

46

Simplicity 2106716

PULLEY, Idler

$

$

Not available

47

Simplicity 2106717

BELT GUIDE

$

$

Not available

48

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

49

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

50

Simplicity 1677750SM

LEVER, Clutch

$

$

Not available

51

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0
