4108 (1690259) - Simplicity 36" Lawn Tractor, 8hp Electrical Group (4108MS) Parts Diagram

36" Lawn Tractor, 8hp

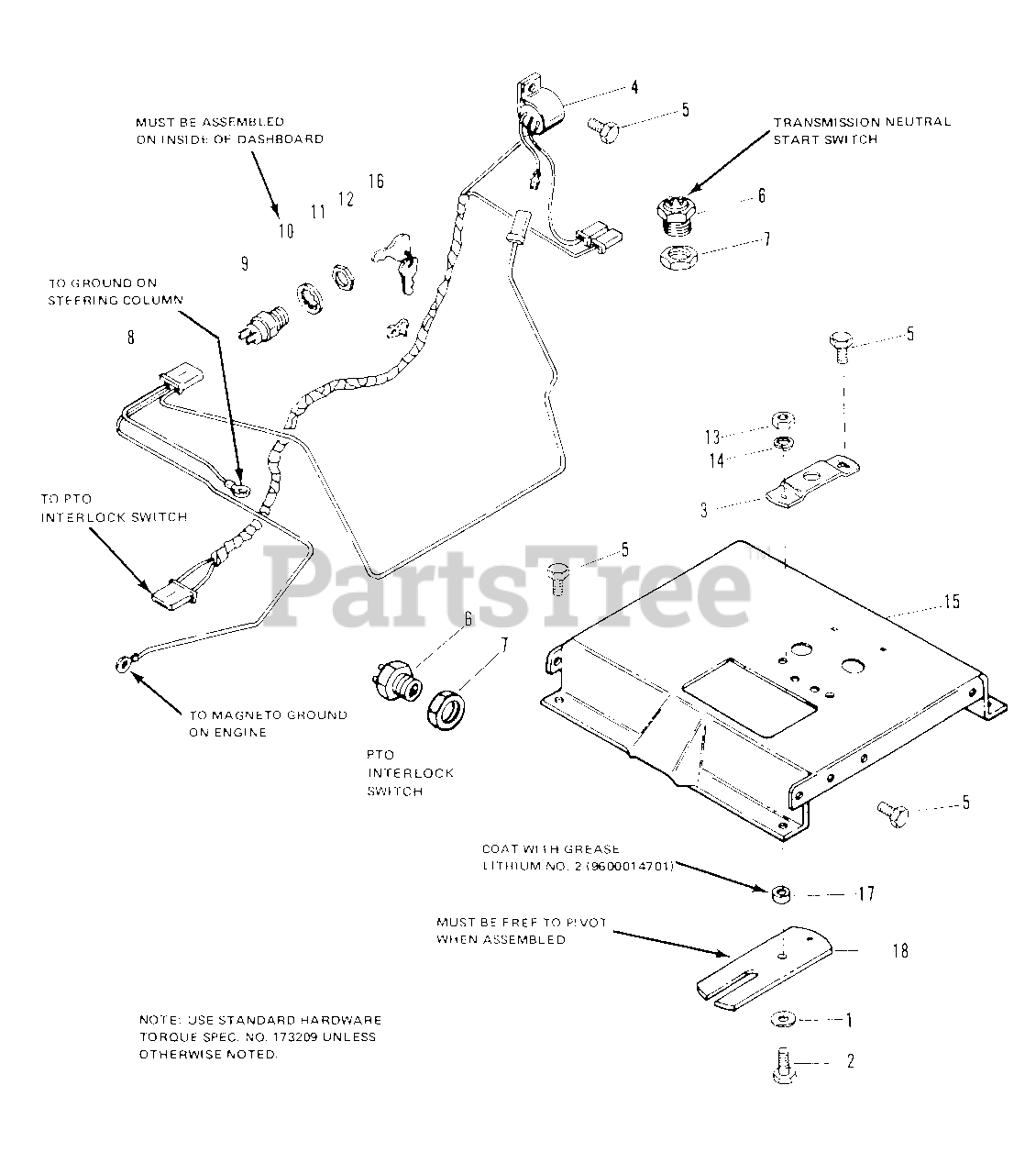

Electrical Group (4108MS) Parts Diagram

  • Title

1

Simplicity 2157643

WASHER

$

$

Not available

2

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

3

Simplicity 1655600

BRACKET, Switch

$

$

Not available

4

Simplicity 1655059

IGNITION, Interlock

$

$

Not available

5

Simplicity 2827428

SCREW, Taptite, Washer Hd., 1/4-20 x 3/8

$

$

Not available

6

Simplicity 1654634SM

SWITCH, Interlock

$46.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930647

NUT, Lock, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1655106

WIRING HARNESS

$

$

Not available

9

Simplicity 1664804SM

SWITCH, Manual Start
(Superseded to 7017817YP)

Note: Ref. No. 9 Includes Ref. No. 16

$31.99

$

In Stock, only 1 left!

0

10

Simplicity 2818906

LOCKWASHER, Internal Tooth, 5/8

$

$

Not available

11

Simplicity 2122234SM

NUT, Hex, 5/8-32 (Ignition)
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1655087

SUPPORT, Frame

$

$

Not available

16

Simplicity 1717163SM

KEYS & RING ASSY

$8.99

$

In Stock, Qty 20+

0

17

Simplicity 1655085

SPACER

$

$

Not available

18

Simplicity 1655086

LEVER, Switch

$

$

Not available
