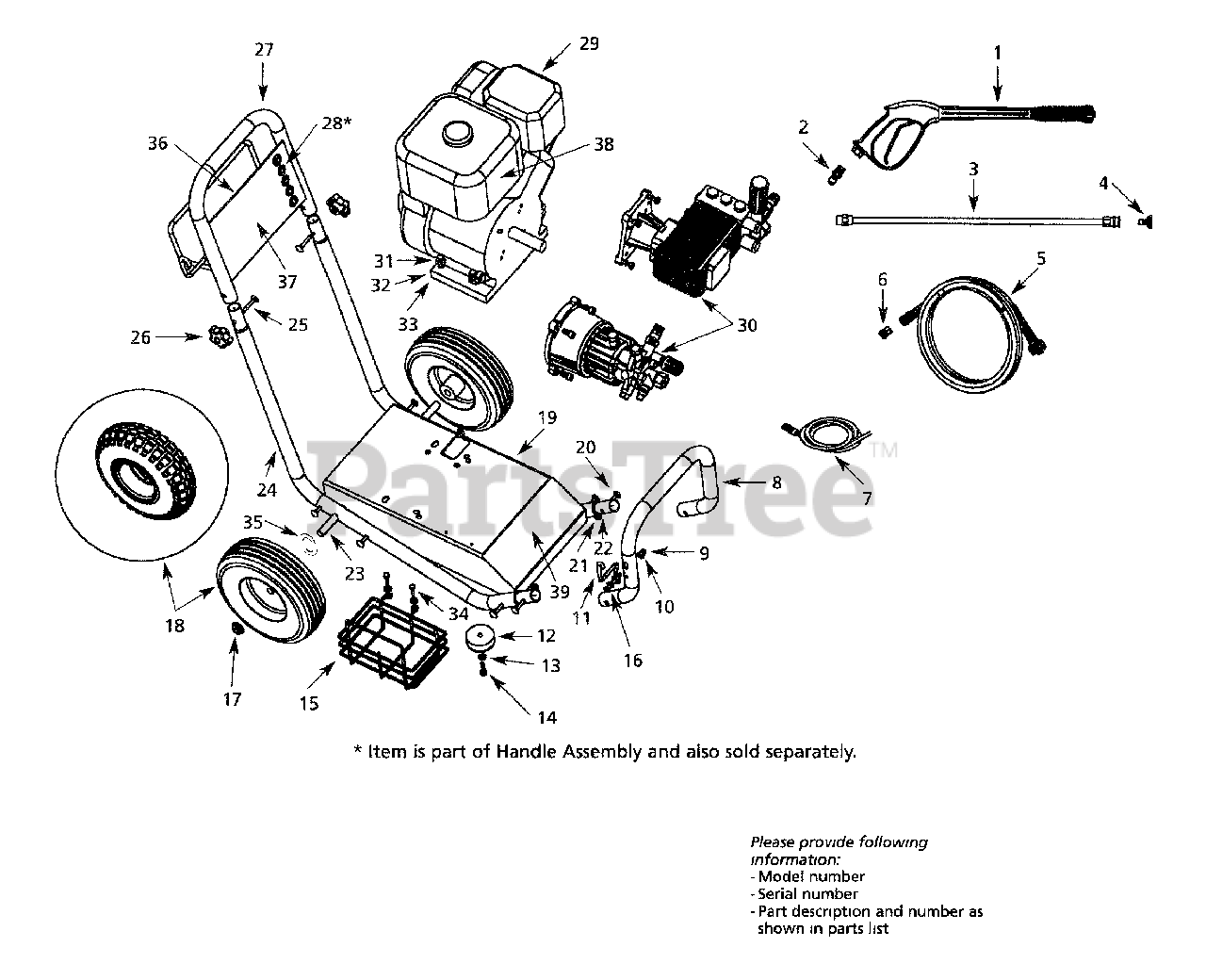

41058 - Troy-Bilt Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

MTD 1917927

Gun

$

$

Not available

2

MTD 1917809

Gun quick connect fitting

$

$

Not available

3

MTD 1917785

Lance

$

$

Not available

4

MTD 1917928

Spray tip - 0 degree

$

$

Not available

MTD 1917929

Spray tip - 15 degree

$

$

Not available

MTD 1917930

Spray tip - 25 degree

$

$

Not available

MTD 1917931

Spray tip - 40 degree

$

$

Not available

MTD 1917790

Detergent spray tip

$

$

Not available

5

MTD 1917867

Hose

$

$

Not available

6

MTD 1917810

Hose quick connect fitting

$

$

Not available

7

MTD 1917823

Chemical filter and hose

$

$

Not available

8

MTD 1917933

Pump Guard

$

$

Not available

9

MTD 1917818

1/4-20 elastic stop nut

$

$

Not available

10

MTD 1917816

1/4" flat washer

$

$

Not available

11

MTD 1917877

Lance support

$

$

Not available

12

MTD 1917795

Rubber Bumper

$

$

Not available

13

Troy-Bilt 1918186

1/4" "Wide" flat washer
(Superseded to 936-0140)

$

$

Not available

14

MTD 1917819

1/4-20 x 1-1/4 self-tapping screw

$

$

Not available

15

Troy-Bilt 1917879

Chemical Basket

$

$

Currently unavailable

16

Troy-Bilt 1918187

1/4-20 x 2" bolt

$

$

Currently unavailable

17

Troy-Bilt 1917798

Palnut
(Superseded to 726-0214)

$10.99

$

Usually ships in 3-6 days

0

18

MTD 1918184

Wheel, Knobby tread

$

$

Not available

MTD 1917797

Wheel, saw tooth tread

$

$

Not available

19

Troy-Bilt 1917936

Baseplate assembly

$

$

Currently unavailable

20

MTD 1917811

5/16-18 x 1-3/4" carriage bolt

$

$

Not available

21

Troy-Bilt 1917873

5/16 elastic stop nut

$

$

Currently unavailable

22

Troy-Bilt 1917872

Washer, 5/16 flat washer

$

$

Currently unavailable

23

Troy-Bilt 1917934

Axle

$

$

Currently unavailable

24

MTD 1917875

Leg

$

$

Not available

25

Troy-Bilt 1918185

5/16-18 x 2-1/4" carriage bolt
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1917812

Star knobs

$

$

Currently unavailable

27

Troy-Bilt 1917932

Handle assembly

$

$

Currently unavailable

28

MTD 1917791

Rubber grommet

$

$

Not available

29

Troy-Bilt 1917937

Engine

$

$

Currently unavailable

30

MTD 1917938

Pump assembly

$

$

Not available

31

Troy-Bilt 1917887

3/8-16 x 1-3/4 hex head bolt

$

$

Currently unavailable

32

Troy-Bilt 1917886

3/8" Flat washer

$

$

Currently unavailable

33

MTD 1917885

3/8-16 elastic stop nut

$

$

Not available

34

MTD 1918089

1/4-20 X 1" bolt

$

$

Not available

35

Troy-Bilt 1917935

Axle bushing (thick washer)

$

$

Currently unavailable

36

Troy-Bilt DK625901AV

Caution/warning decal

$

$

Currently unavailable

37

Troy-Bilt DK625912AV

Placard/performance decal

$

$

Currently unavailable

38

~N/A

Tory-Bilt logo decal

$

$

Not available

39

Troy-Bilt DK625916AV

Troy-Bilt logo decal

$

$

Currently unavailable

Troy-Bilt 1917882

1/4 x 1/4 x 1-3/4 shaft key

Note: Not shown

$

$

Currently unavailable

Troy-Bilt 1918287

Owners manual

Note: Not shown

$

$

Currently unavailable

Troy-Bilt 1918294

Checklist

Note: Not shown

$

$

Currently unavailable
