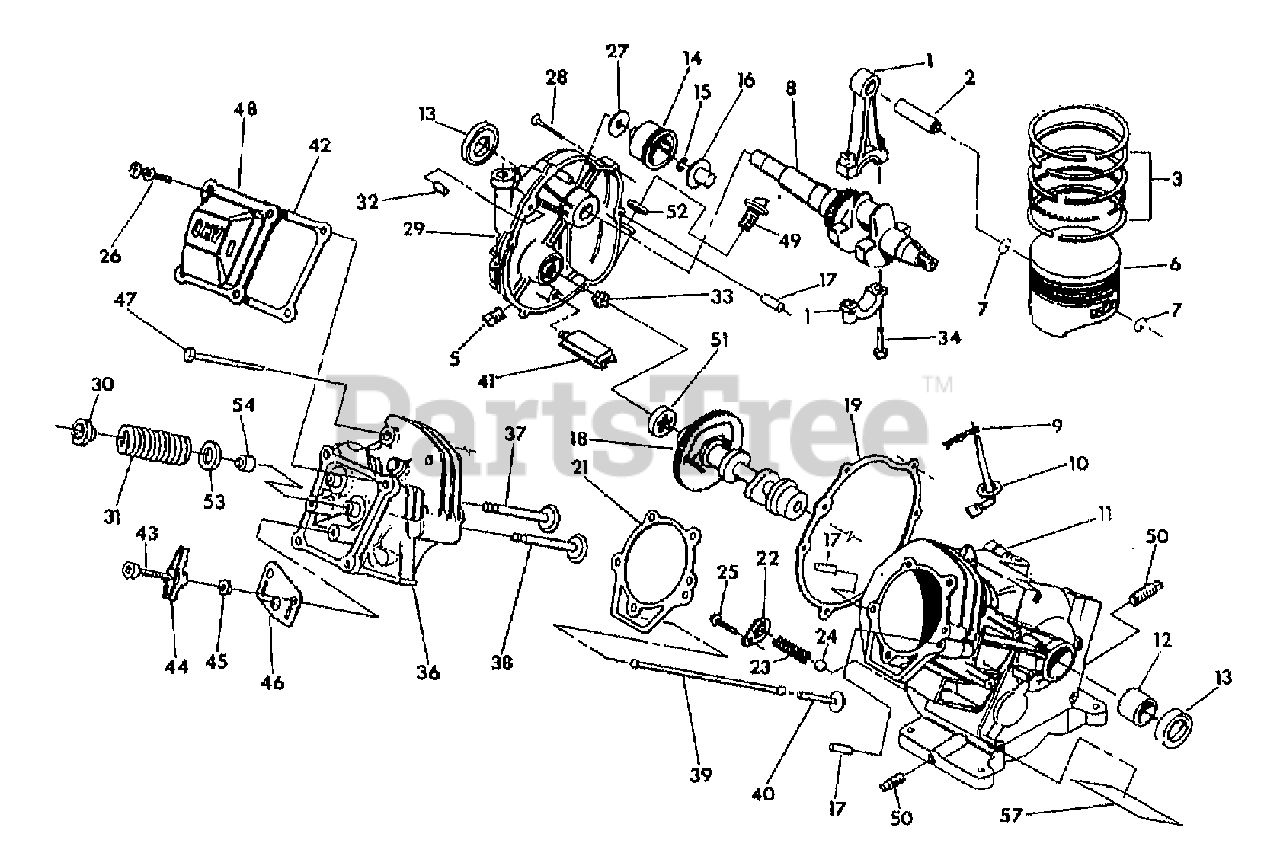

41050-02 - Troy-Bilt Pressure Washer (SN: 4105002100101 - 4105002999999) ENGINE (1) Parts Diagram

Pressure Washer

ENGINE (1) Parts Diagram

  • Title

1

MTD 1903267

ROD-CONNECTING W/CAP

$

$

Not available

2

MTD 1902580

PIN-PISTON

$

$

Not available

3

Troy-Bilt 1902632

RING-(SET)PISTON (PRS WSHR)

$

$

Currently unavailable

?4

MTD 1902581

PLUG-1/4" MAGNETIC PIPE

$

$

Not available

5

MTD 1902582

PLUG-1/8" NPTF PIPE

$

$

Not available

6

Troy-Bilt 1903447

PISTON

$

$

Currently unavailable

7

MTD 1902584

RETAINER-PISTON PIN

$

$

Not available

8

Troy-Bilt 1903448

ASSM-CRANKSHAFT

$

$

Currently unavailable

9

MTD 1902586

PIN-"R" GOVERNOR ARM

$

$

Not available

10

Troy-Bilt 1902587

ARM-GOVERNOR

$

$

Currently unavailable

11

Troy-Bilt 1903449

SUB ASSM-CRANKCASE

$

$

Currently unavailable

12

Troy-Bilt 1902589

BEARING-SLEEVE

$

$

Currently unavailable

13

MTD 1902590

SEAL-CRANKSHAFT

$

$

Not available

14

Troy-Bilt 1902591

ASSM-GEAR GOVERNOR

$

$

Currently unavailable

15

Troy-Bilt 1902592

RETAINER-GOVERNOR ("C" RING)

$

$

Currently unavailable

16

MTD 1902593

SPOOL-GOVERNOR

$

$

Not available

17

MTD 1902597

DOWEL-12"DIA. SLEEVE

$

$

Not available

18

MTD 1902595

ASSM-CAMSHAFT

$

$

Not available

19

Troy-Bilt 1903272

GASKET-CRANKCASE

$

$

Currently unavailable

21

Troy-Bilt 1903273

GASKET-CYLINDER HEAD

$

$

Currently unavailable

22

MTD 1902599

RETAINER-SPRING OIL PRESS.

$

$

Not available

23

MTD 1902600

SPRING-OIL PRESSURE

$

$

Not available

24

MTD 1902601

BALL-PRESSURE RELIEF

$

$

Not available

25

MTD 1902602

SCR M5-0.8X8MM (THD FORMING)

$

$

Not available

26

MTD 1902603

SCR M6-1.0X12MM

$

$

Not available

27

MTD 1902604

WASHER-THRUST

$

$

Not available

28

MTD 1903274

SCR-HFLK

$

$

Not available

29

MTD 1903275

SUBASSM-GEAR COVER

$

$

Not available

30

Troy-Bilt 1903276

RETAINER-VALVE SPRING

$

$

Currently unavailable

31

Troy-Bilt 1903277

SPRING-VALVE

$

$

Currently unavailable

32

MTD 1903278

PIN-DOWEL M12X20

$

$

Not available

33

MTD 1902610

GEROTOR-INNER

$

$

Not available

34

MTD 1902611

BOLT-CONNECTING ROD

$

$

Not available

?35

MTD 1902612

WASHER-GOVERNOR ARM

$

$

Not available

36

MTD 1903279

CYL HEAD W/VALVE SEATS & GUIDE

$

$

Not available

37

Troy-Bilt 1903280

VALVE-EXHAUST

$

$

Currently unavailable

38

Troy-Bilt 1903281

VALVE-INTAKE

$

$

Currently unavailable

39

MTD 1903282

ROD-PUSH GEN #88396A

$

$

Not available

40

Troy-Bilt 1902617

TAPPET

$

$

Currently unavailable

41

Troy-Bilt 1902618

ASSM-OIL PICKUP

$

$

Currently unavailable

42

Troy-Bilt 1903283

GASKET-ROCKER COVER

$

$

Currently unavailable

43

MTD 1902620

STUD-PIVOT BALL

$

$

Not available

44

Troy-Bilt 1902621

ARM-ROCKER

$

$

Currently unavailable

45

MTD 1902622

NUT-HEX/JAM (ROCKER ARM)

$

$

Not available

46

MTD 1903284

PLATE-PUSH ROD GUIDE

$

$

Not available

47

MTD 1902624

SCR-M8X50MM HEAD

$

$

Not available

48

Troy-Bilt 1903285

ASSM-ROCKER CVR BREATHER

$

$

Currently unavailable

49

Troy-Bilt 1902626

PLUG-OIL FILL

$

$

Currently unavailable

50

MTD 1902627

PLUG-1/4" NPT PIPE

$

$

Not available

51

MTD 1902628

GEROTOR-OUTER 6/5

$

$

Not available

52

Troy-Bilt 1902629

RING-O 17.8MM IDX2.4MM

$

$

Currently unavailable

53

Troy-Bilt 1902630

WASHER-VALVE SPRING

$

$

Currently unavailable

54

MTD 1903286

SEAL-VALVE STEM

$

$

Not available

57

Troy-Bilt 1903492

DECAL-SER/NO. PRESS/WASHR

$

$

Currently unavailable
