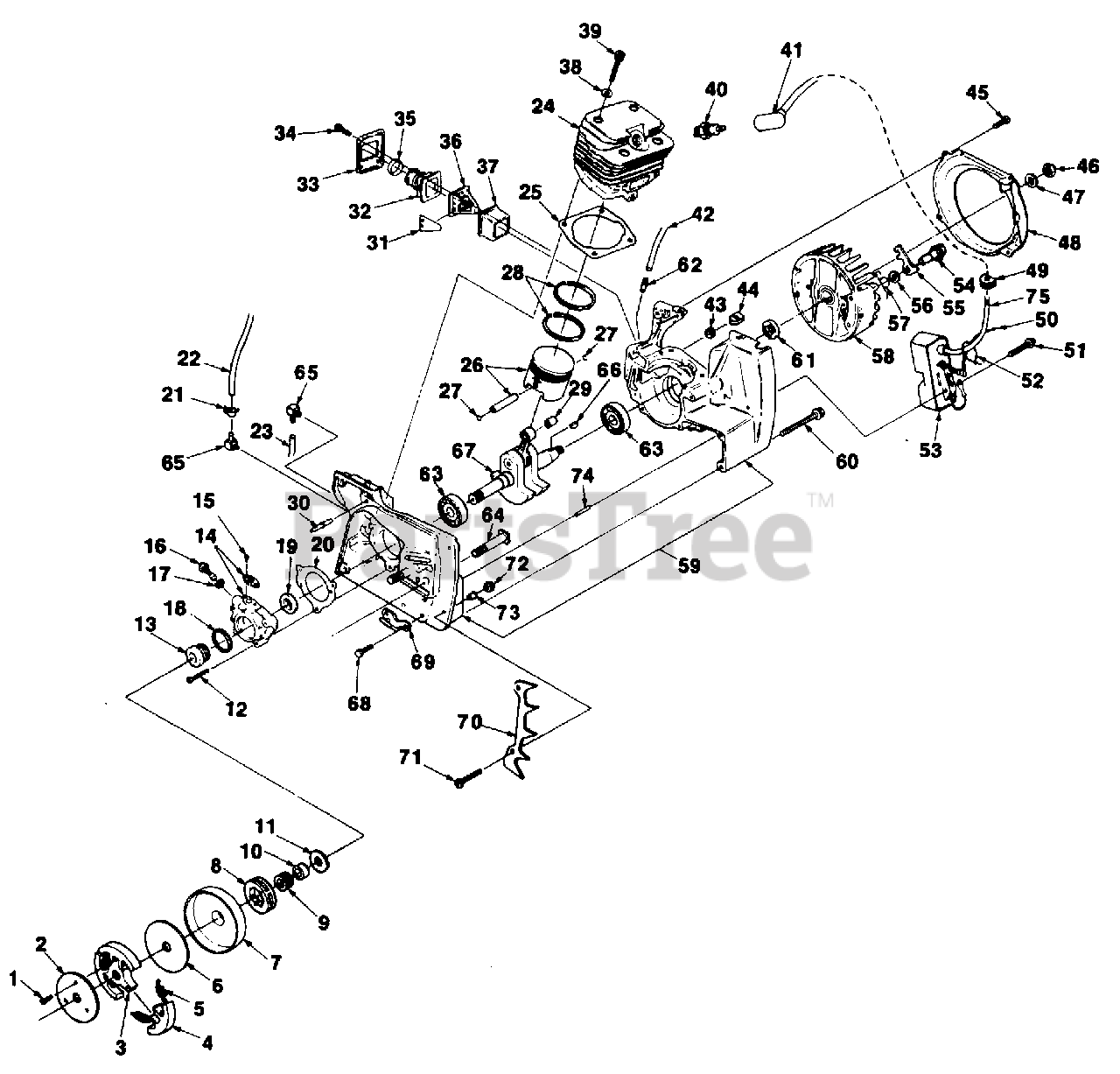

410 (UT-10486-B) - Homelite Chainsaw Engine & Peripherals Parts Diagram

Chainsaw

Engine & Peripherals Parts Diagram

  • Title

1

Homelite 82253

SCREW- Pan hd. (8-32 x 3/8")

$

$

Not available

2

Homelite 93628

COVER- Clutch

$

$

Not available

3

Homelite 93639

SPIDER- Clutch
(Superseded to UP06983)

$

$

Not available

4

Homelite A93632B

SHOE- Clutch
(Superseded to UP06461)

$

$

Not available

5

Homelite 93814A

SPRING- Clutch
(Superseded to UP07438)

$

$

Not available

6

Homelite 93650

WASHER- Thrust

$

$

Not available

7

Homelite A94302

DRUM & HUB

$

$

Currently unavailable

8

Homelite 95058A

SPROCKET 3/8" pitch 7 tooth

$

$

Currently unavailable

Homelite A95465

SPROCKET & DRUM (spur type 3/8" 7T)

$

$

Not available

9

Homelite 64124

BEARING- Needle
(Superseded to UP06815)

$

$

Not available

10

Homelite 64129A

RACE- Inner

$

$

Currently unavailable

11

Homelite 63462

WASHER- Thrust

$

$

Not available

12

Homelite 80660

SCREW- Fil. hd. (10-24 x 7/8")

$

$

Not available

13

Homelite 93336

WORM- Oil pump

$

$

Not available

14

Homelite A93319

PUMP- Automatic oil

$

$

Currently unavailable

15

Homelite 80919

SCREW- (4-40 x 1/4")

$

$

Not available

16

Homelite 64102A

SCREW- Cam

$

$

Not available

17

Homelite 59736

GASKET

$

$

Not available

18

Homelite 59926

SEAL- Felt
(Superseded to UP06982)

$6.49

$

In Stock, Qty 10

0

19

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

20

Homelite 93329

GASKET

$

$

Not available

21

Homelite 93426

CLAMP

$

$

Not available

22

Homelite 9477220

TUBING 5" (manual delivery)
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

23

Homelite 7031023

TUBING- 6 3/4" (auto oil pick-up)
(Superseded to UP04694)

$

$

Not available

24

Homelite A00901

CYLINDER

$

$

Currently unavailable

25

Homelite 93338

GASKET

$

$

Not available

26

Homelite A977942

PISTON

$

$

Not available

27

Homelite 64813

RING- Retaining

$4.99

$

Usually ships in 3-7 days

0

28

Homelite 93216

PISTON- Ring

$

$

Not available

29

Homelite 97566

NEEDLE- Bearing (after lot #E286)

$

$

Not available

30

Homelite 96865

PIN- Dowel

$

$

Not available

31

Homelite 93325

REED

$

$

Not available

32

Homelite 93327

CONNECTOR- Carburetor
(Superseded to UP05709)

$

$

Not available

33

Homelite 93328

RETAINER- Reed valve

$

$

Not available

34

Homelite 80582

SCREW- Washer hd. (8-32 x 5/8")

$

$

Not available

35

Homelite 93323

STIFFNER- Connector

Note: (for units prior to Lot #C300)

$

$

Currently unavailable

36

Homelite 93324

SEAT- Reed valve

$

$

Not available

37

Homelite 93326A

RETAINER- Reed

$

$

Not available

38

Homelite 12021

WASHER- Conical

$

$

Not available

39

Homelite 93399

SCREW- Soc hd. (10-24 x 1 1/8")

$

$

Not available

40

Homelite 96169S

SPARK PLUG (DJ7Y)
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

41

Homelite A33055

TERMINAL- Spark plug

$

$

Not available

42

Homelite 9315719

TUBING- 4 3/4"

$

$

Not available

43

Homelite 81208

NUT- Centerlock (10-24)

$

$

Not available

44

Homelite 12689A

RETAINER- Nut

$

$

Not available

45

Homelite 82251

SCREW- Pan hd. (6-32 x 3/8")
(Superseded to 80571)

$

$

Not available

46

Homelite 81255

NUT- Lock (3/8-24)

$

$

Not available

47

Homelite 95479A

WASHER- Flat

$

$

Not available

48

Homelite 93312

SCROLL- Air guide

$

$

Not available

49

Homelite 58318

GROMMET

$

$

Not available

50

Homelite A01931

SWITCH & LEAD

Note: See Handles, Air Filter & Carburator index #7 for breakdown)

$

$

Currently unavailable

51

Homelite 88052

SCREW- Hex Sems (10-24 x 7/8")

$4.99

$

Usually ships in 3-7 days

0

52

Homelite 50729

CLAMP- Wire

$

$

Not available

53

Homelite A93414

MODULE
(Superseded to A04890A)

$

$

Currently unavailable

54

Homelite 64054C

BOLT- Shoulder

$

$

Not available

55

Homelite 58756A

PAWL- Starter

$

$

Currently unavailable

56

Homelite 84115

WASHER- Flat
(Superseded to 588512)

$3.49

$

Usually ships in 3-7 days

0

57

Homelite 011011

SPRING- Starter pawl

$

$

Not available

58

Homelite 93313

ROTOR

$

$

Not available

59

Homelite A93441

CRANKCASE

$

$

Not available

60

Homelite 88056

SCREW- (10-24 x 1 3/4")

$

$

Not available

61

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

62

Homelite 69833

FITTING

$

$

Not available

63

Homelite 94621

BEARING- Ball
(Superseded to UP06853)

$

$

Not available

64

Homelite 93310

BOLT- Guide bar

$

$

Not available

65

Homelite 70204

FITTING

$

$

Not available

66

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

67

Homelite A97567A

CRANKSHAFT

$

$

Currently unavailable

Homelite 93369

BEARING- Needle

Note: (prior to lot #E286) (See index #29)

$

$

Not available

Homelite 94621

BEARING- Ball
(Superseded to UP06853)

Note: (see index #63)

$

$

Not available

Homelite 97566

BEARING- Needle (long)

Note: (see index #29) (after lot #E286)

$

$

Not available

68

Homelite 88042

SCREW- Hex Sems (8-32 x 1/2")

$

$

Not available

69

Homelite 70705

STOP- Chain

$

$

Not available

70

Homelite A93445B

KIT- Spiked bumper

$

$

Currently unavailable

71

Homelite 97636

SCREW- (10-24 x 1/2")

$

$

Not available

72

Homelite 81261

NUT

$

$

Not available

73

Homelite 97633

WASHER- Sealing

$

$

Not available

74

Homelite 31062

PIN- Dowel
(Superseded to UP07031)

$

$

Not available

75

Homelite 69326

LEAD- High tension

$

$

Not available

Homelite DA70790B

SAFE-T-TIP

Note: (not shown)

$

$

Currently unavailable

Homelite 82335

SCREW
(Superseded to UP06708)

$4.49

$

Usually ships in 3-7 days

0
