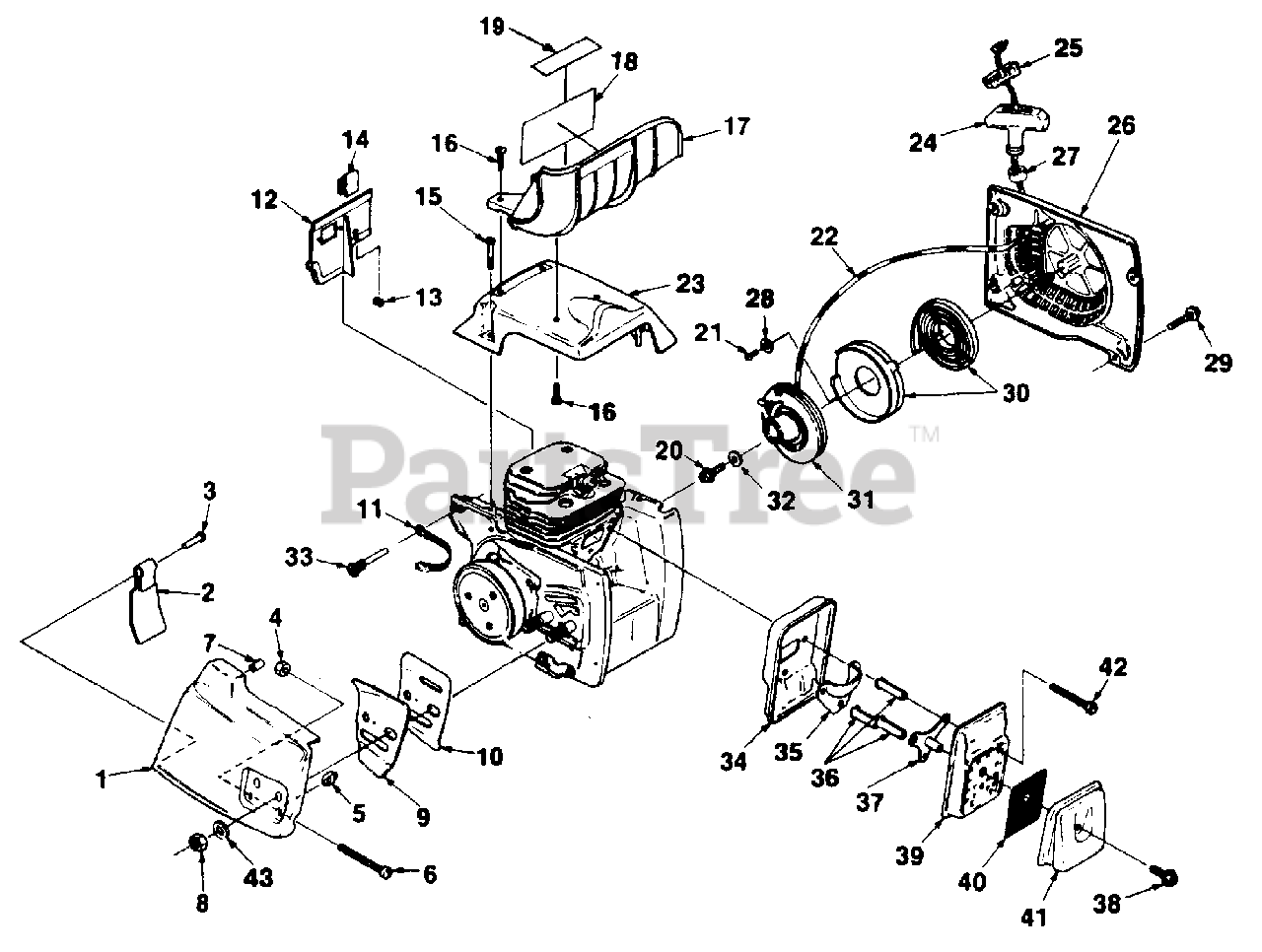

410 SL (UT-10587-B) - Homelite Chainsaw Starter, Muffler & Handguard Parts Diagram

Chainsaw

Starter, Muffler & Handguard Parts Diagram

  • Title

1

Homelite A96500

COVER- Drivecase

$

$

Not available

2

Homelite 93439

SHIELD- Sawdust

$

$

Not available

3

Homelite 85154

RIVET- Pan hd.
(Superseded to UP06457)

$

$

Not available

4

Homelite 81204

NUT- Hex (1/4-20)

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 93039

PIN- Guide bar adj.

$37.99

$

In Stock, only 1 left!

0

6

Homelite 63367

SCREW- Guide bar adj.

$

$

Not available

7

Homelite 95839

BUSHING

$

$

Not available

8

Homelite 810892

NUT-(3/8-16)

$13.99

$

Usually ships in 3-7 days

0

9

Homelite 70400

PLATE- Guide bar (outer) 410 only
(Superseded to UP06865)

$

$

Not available

10

Homelite 70399

PLATE- Guide bar (inner)
(Superseded to UP06812)

$

$

Not available

11

Homelite A93459A

STRAP- Ground

$

$

Not available

12

Homelite A96866

DEFLECTOR- Air

$

$

Currently unavailable

13

Homelite 93357

GROMMET

$

$

Not available

14

Homelite 96200

SPRING- Clip

$

$

Not available

15

Homelite 93397A

SCREW- Cylinder cover (8-32 x 7/8")

$

$

Currently unavailable

16

Homelite 82312

SCREW- Threaded rolling plastite (#10 x 5/8")

$

$

Not available

17

Homelite A95092

GUARD- Hand

$

$

Currently unavailable

18

Homelite 96990A

DECAL- Safety warning

$

$

Currently unavailable

19

Homelite 98646

LABEL- Ansi

$4.49

$

Usually ships in 3-7 days

0

20

Homelite 93417

SCREW- (#10 x 5/8")
(Superseded to 82409)

$

$

Not available

21

Homelite 82528

SCREW- Plastite (6 x 3/8")

$2.49

$

Usually ships in 3-7 days

0

22

Homelite A00518

ROPE- Starter (#5) 45"
(Superseded to 93418)

$

$

Currently unavailable

23

Homelite 931631

COVER- Cylinder (410 only)

$

$

Currently unavailable

24

Homelite A69962B

GRIP- Starter rope

$19.99

$

Usually ships in 3-7 days

0

25

Homelite 70018A

INSERT- Rope retaining

$

$

Not available

26

Homelite A97988A

HOUSING- Starter
(Superseded to A02568)

$

$

Currently unavailable

27

Homelite 67177

BUSHING

$

$

Not available

28

Homelite 84025

WASHER- Flat

$

$

Not available

29

Homelite 82298

SCREW- Hex Sems (10-24 x 5/8")
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

30

Homelite A98067

SPRING & RETAINER
(Superseded to A98067A)

$42.99

$

Usually ships in 3-7 days

0

31

Homelite A97990

STARTER PULLEY & CUP
(Superseded to UP07034)

$

$

Not available

32

Homelite 58763

WASHER- Retaining

$

$

Not available

33

Homelite 93367

PIN- Isolator

$

$

Not available

34

Homelite 93347

BODY- Muffler

$

$

Not available

35

Homelite 93349

PLATE- Stiffner

$

$

Not available

36

Homelite 9398303

SPACER- Muffler

$

$

Not available

37

Homelite A95062

SPACER & PLATE

$

$

Currently unavailable

38

Homelite 88048

SCREW- Hex Sems (10-32 x 3/8")
(Superseded to 5687301)

$

$

Not available

39

Homelite 933481A

COVER- Muffler

$

$

Currently unavailable

40

Homelite 93344

SCREEN- Spark

$

$

Not available

41

Homelite A93355A

CAP- Muffler exhaust

$

$

Not available

42

Homelite 94129

SCREW- Hex hd. (12-24 x 17/8")

$3.99

$

Usually ships in 3-7 days

0

43

Homelite 95479A

WASHER- Flat

$

$

Not available
