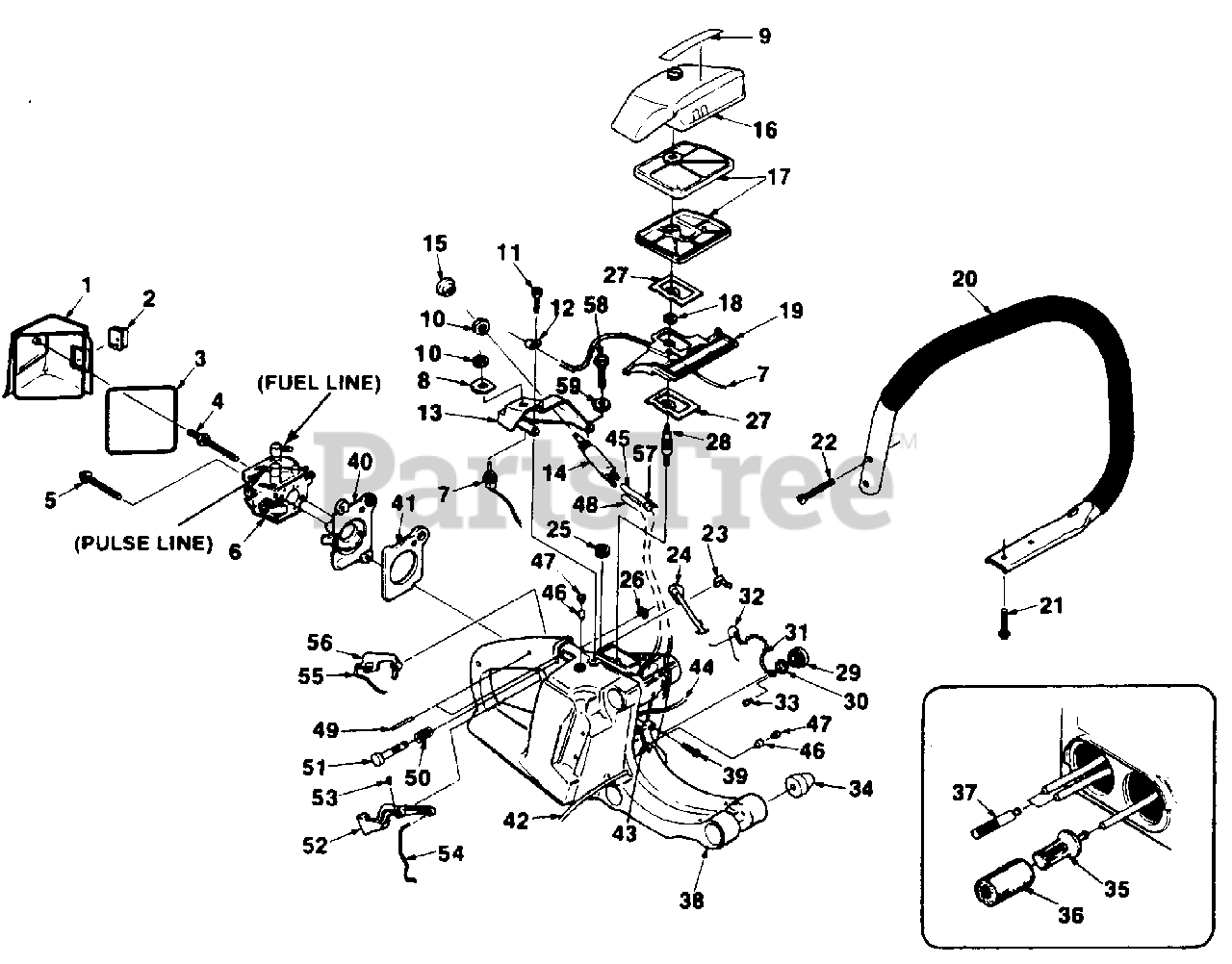

410 SL (UT-10587-B) - Homelite Chainsaw Handles, Air Filter & Carburetor Parts Diagram

Chainsaw

Handles, Air Filter & Carburetor Parts Diagram

  • Title

1

Homelite A934312

COVER- Carburetor

$

$

Currently unavailable

2

Homelite 93470

GROMMET (Hi-Lo)

$

$

Not available

3

Homelite 01160

GASKET- Carburetor
(Superseded to UP05642)

$

$

Not available

4

Homelite 93468

STUD- Shoulder

$

$

Not available

5

Homelite 93460

SCREW- Hex Sems (10-24 x 17/8")

$

$

Not available

6

Homelite A97102

CARBURETOR (Walbro)
(Superseded to A01085)

$

$

Currently unavailable

7

Homelite A01931

SWITCH & LEAD

$

$

Currently unavailable

8

Homelite 12793A

PLATE- Indicating
(Superseded to UP07113)

$

$

Not available

9

Homelite 00276

LABEL- Warning

$

$

Not available

10

Homelite 72084A1

NUT- Toggle switch
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 88049

SCREW- Hex Sems hd. (10-24 x 1/2")

$

$

Not available

12

Homelite 96717

CLAMP- Wire

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 932151

PANEL- Rear

$

$

Currently unavailable

14

Homelite A96976

PUMP- Manual oil

$

$

Currently unavailable

15

Homelite 65084

BUTTON

$

$

Not available

16

Homelite A97094

COVER- Air filter

$

$

Currently unavailable

17

Homelite A93401

FILTER- Air

$

$

Not available

18

Homelite 93389

RING- Retaining

$

$

Not available

19

Homelite 93364

SUPPORT- Filter cover

$

$

Not available

20

Homelite A93409C

HANDLE BAR

$

$

Currently unavailable

21

Homelite 88052

SCREW- Hex Sems (10-24 x 7/8")

$4.99

$

Usually ships in 3-7 days

0

22

Homelite 82389

SCREW- (10-24 x 1 1/4")

$

$

Not available

23

Homelite 93381

RETAINER- Choke

$

$

Not available

24

Homelite 93372

ROD- Choke

$

$

Not available

25

Homelite 69889

BOOT- Throttle rod

$

$

Not available

26

Homelite 93377

RING- Retaining

$

$

Not available

27

Homelite 97635

GASKET FILTER & SUPPORT

$

$

Not available

28

Homelite 93382A

STUD- Threaded

$

$

Not available

29

Homelite A97799

CAP- Fuel (red)
(Superseded to UP05970)

$

$

Not available

Homelite A97798

CAP- Oil (black)
(Superseded to UP05970)

$

$

Not available

30

Homelite 98805

GASKET- Fuel & Oil Cap
(Superseded to UP07294)

$

$

Not available

31

Homelite 69502

BEAD- Chain

$

$

Not available

32

Homelite 96535

RETAINER- Filler cap

$

$

Not available

33

Homelite 82256A

SCREW- Plastite

$

$

Not available

34

Homelite 93368A

ISOLATOR
(Superseded to UP06458)

$

$

Not available

35

Homelite A97700

FILTER- Fuel
(Superseded to UP06516)

$

$

Not available

36

Homelite 592531A

ELEMENT- Filter

$11.99

$

Usually ships in 3-7 days

0

37

Homelite A59009A

FILTER- Oil

$

$

Currently unavailable

38

Homelite A93446A

HOUSING- Engine

$

$

Currently unavailable

39

Homelite 80022

SCREW- Soc hd. (8-32 x 1/2")

$

$

Not available

40

Homelite 976231

ADAPTER- Carburetor

$

$

Currently unavailable

41

Homelite 97622A

SPACER- Carburetor

$

$

Currently unavailable

42

Homelite 7031023

TUBING- 6 3/4" (auto pick up)
(Superseded to UP04694)

$

$

Not available

43

Homelite 9315719

TUBING- 4 3/4" (pulse line)

$

$

Not available

44

Homelite 9477232

TUBING- 8 3/4" (fuel line pick up)
(Superseded to UP03905)

$

$

Not available

45

Homelite 9477220

TUBING- 5" (Man. delivery)
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

46

Homelite 69451

VALVE- Check

$

$

Not available

47

Homelite 93410

FILTER- 11/32"
(Superseded to UP08023)

$7.99

$

Usually ships in 3-7 days

0

48

Homelite 7031036

TUBING- 9 3/4" (man pick up)
(Superseded to UP06561)

$

$

Not available

49

Homelite 68548

PIN- Trigger

$

$

Not available

50

Homelite 93376

SPRING- Compression

$

$

Not available

51

Homelite 93375

PIN- Throttle lock

$

$

Not available

52

Homelite A93374A

TRIGGER

$

$

Currently unavailable

53

Homelite 82373

SCREW- Set (6-32 x 1/4")

$

$

Not available

54

Homelite 93371A

ROD- Throttle

$

$

Currently unavailable

55

Homelite 93386

SPRING- Flat

$

$

Not available

56

Homelite 93385

LOCK- Trigger
(Superseded to UP07466)

$

$

Not available

57

Homelite 93426

CLAMP

$

$

Not available

58

Homelite 82298

SCREW- Hex hd. (10-24 x 5/8")
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

59

Homelite 83025

WASHER- Lock

$

$

Not available
