410 SL (UT-10587-B) - Homelite Chainsaw Chain Brake Parts Diagram

Chainsaw

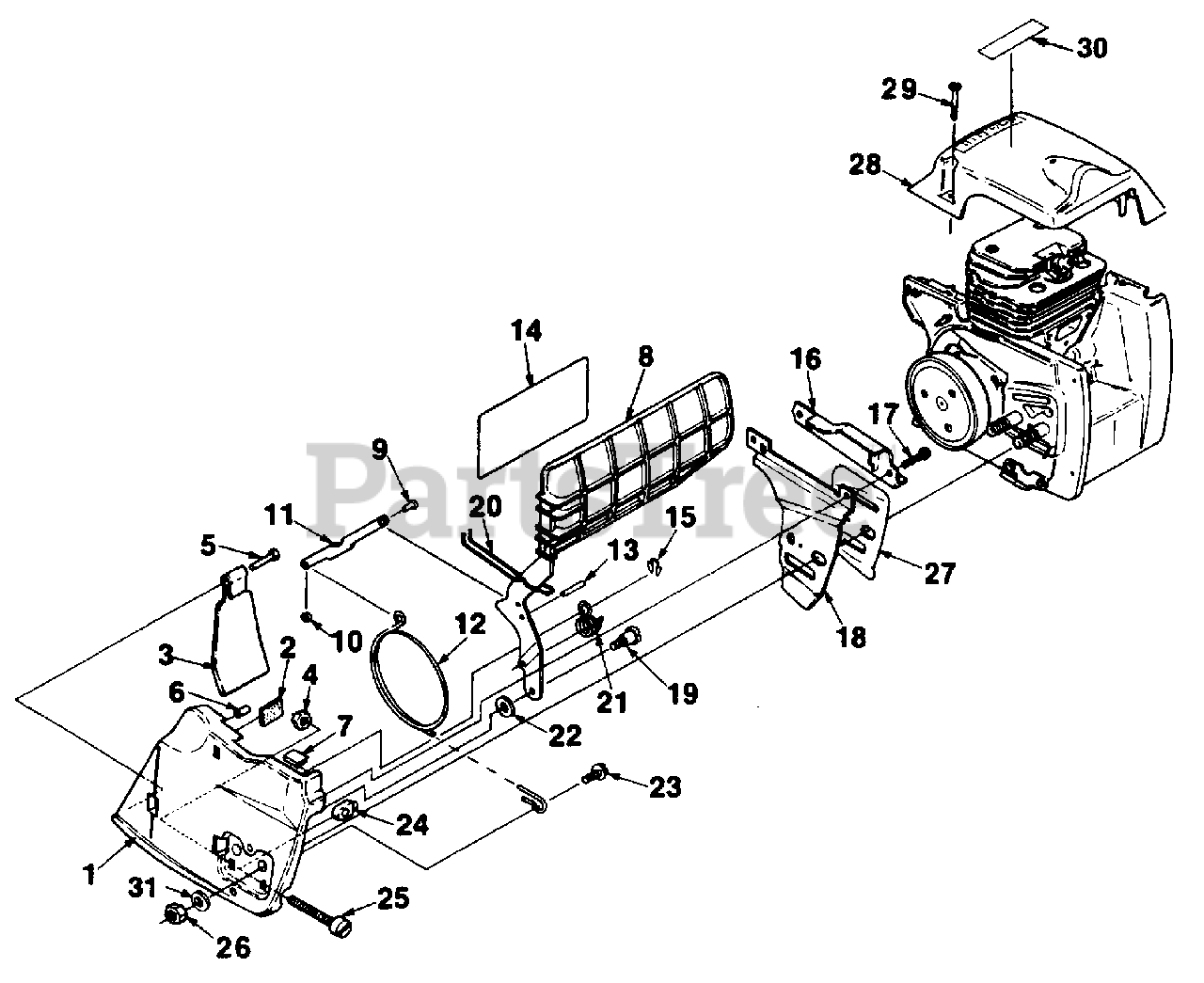

Chain Brake Parts Diagram

  • Title

Homelite A96941B

KIT- Chain brake

$

$

Currently unavailable

1

Homelite A97374

COVER- Drivecase

$

$

Currently unavailable

2

Homelite 97587

BUMPER- Foam

$

$

Currently unavailable

3

Homelite 93439

SHIELD- Sawdust

$

$

Not available

4

Homelite 81204

NUT- Hex (1/4-20)

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 85154

RIVET- Pan hd.
(Superseded to UP06457)

$

$

Not available

6

Homelite 95839

BUSHING

$

$

Not available

7

Homelite 93435

CLIP- Spring

$

$

Not available

8

Homelite A93485D

GUARD- Hand (w/brake)

$

$

Currently unavailable

9

Homelite 93436

RIVET- Truss hd.

$

$

Not available

10

Homelite 93495

SPACER

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 93488

LINK- Pivot

$

$

Not available

12

Homelite 934901

BAND- Brake

$10.99

$

Usually ships in 3-7 days

0

13

Homelite 59751

PIN- Dowel

$

$

Not available

14

Homelite 96990A

DECAL

$

$

Currently unavailable

15

Homelite 93464

RING- Retaining

$

$

Not available

16

Homelite 93482

SHIELD

$

$

Not available

17

Homelite 82251

SCREW- Pan hd. (6-32 x 3/8")
(Superseded to 80571)

$

$

Not available

18

Homelite 93481

PLATE- Guide bar (outer)

$

$

Not available

19

Homelite 93492

SCREW- Shoulder

$17.99

$

Usually ships in 3-7 days

0

20

Homelite 93491

SPRING

$

$

Not available

21

Homelite 93489

SPRING- Torsion

$

$

Not available

22

Homelite 93466

WASHER- Flat

$

$

Not available

23

Homelite 801361

SCREW- (1/4-20 x 3/8")

$

$

Currently unavailable

24

Homelite 93039

PIN- Guide bar adjusting

$37.99

$

In Stock, only 1 left!

0

25

Homelite 63367

SCREW- Guide bar adjusting

$

$

Not available

26

Homelite 810892

NUT

$13.99

$

Usually ships in 3-7 days

0

27

Homelite 70399

PLATE- Guide bar (inner)
(Superseded to UP06812)

$

$

Not available

28

Homelite A98629

COVER- Cylinder

$

$

Currently unavailable

29

Homelite 93397A

SCREW

$

$

Currently unavailable

30

Homelite 98646

DECAL- Ansi

$4.49

$

Usually ships in 3-7 days

0

31

Homelite 95479A

WASHER- Flat

$

$

Not available
