410 S (1600299) - AGCO Lawn Tractor, 10hp Vacuum Collector Group - Dump Cart (1506I48) Parts Diagram

Lawn Tractor, 10hp

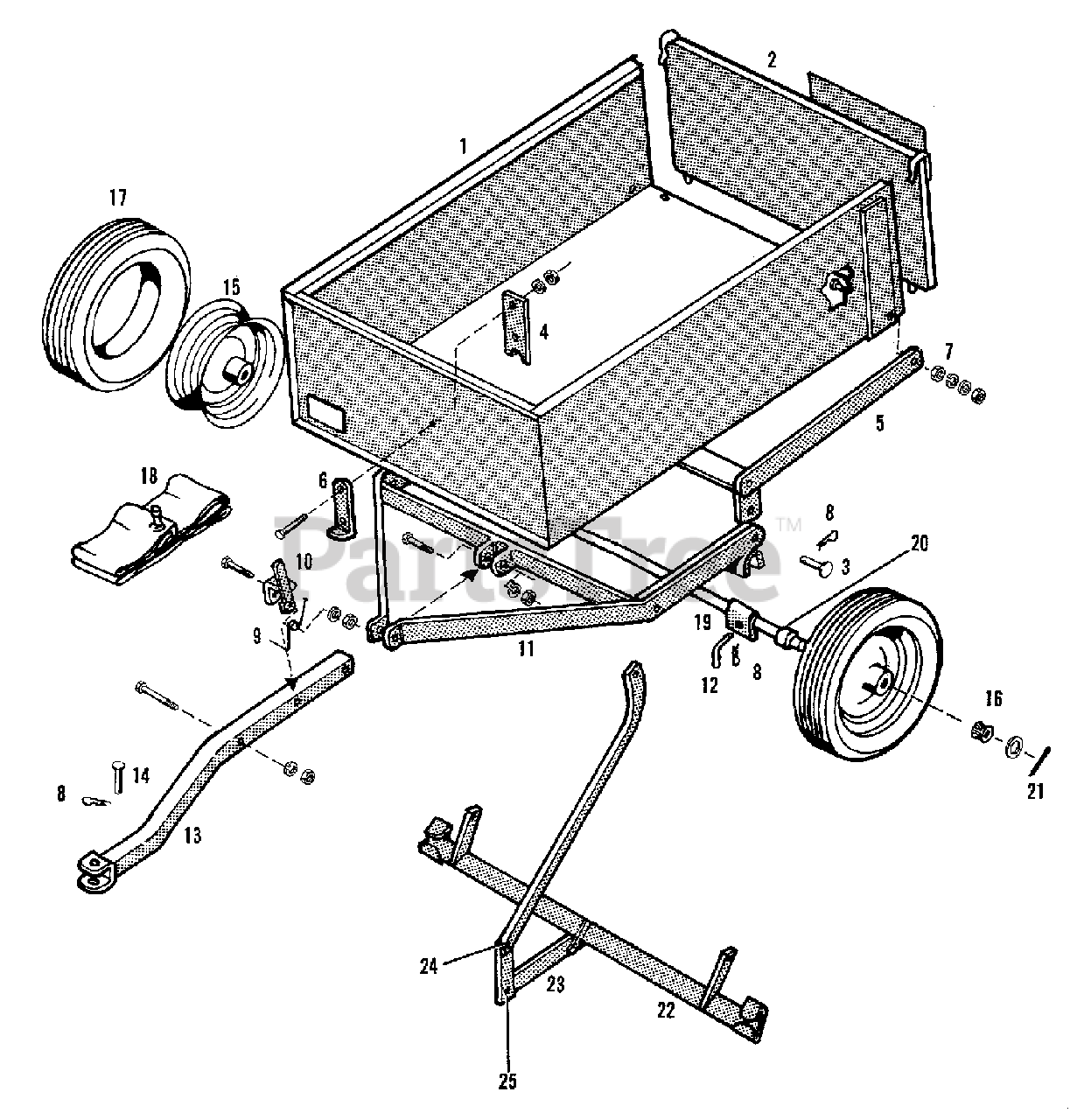

Vacuum Collector Group - Dump Cart (1506I48) Parts Diagram

  • Title

1

Simplicity 2025207

BODY, Trailer

$

$

Not available

2

Simplicity 2025208

GATE, End

$

$

Not available

3

Simplicity 2025209

PIN, Pivot

$

$

Not available

4

Simplicity 2025210

PLATE, Box Guide

$

$

Not available

5

Simplicity 2025212

PIVOT ASSEMBLY, Box

$

$

Not available

5

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2816950SM

NUT, 3/8
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

5

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 2025219

PLATE, Box Catch

$

$

Not available

6

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

6

Simplicity 2816950SM

NUT, 3/8
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 2029609

BUSHING

$

$

Not available

8

Simplicity 9002801

CLIP, Spring

$

$

Not available

9

Simplicity 2026854

SPRING, Torsion

$

$

Not available

10

Simplicity 2027870

CLEVIS ASSEMBLY, Box

$

$

Not available

10

Simplicity 2821973

CAPSCREW, 3/8NC x 2-3/4

$

$

Not available

10

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 2818006

NUT, 3/8NC, Centerlock

$

$

Not available

11

Simplicity 2025216

FRAME ASSEMBLY

$

$

Not available

12

Simplicity 2025716

PIN

$

$

Not available

13

Simplicity 2025217

TONGUE ASSEMBLY

$

$

Not available

13

Simplicity 2822130

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2026134

PIN, Inner

$

$

Not available

15

Simplicity 2087546

WHEEL

$

$

Not available

16

Simplicity 2029698

BEARING

$

$

Not available

17

Simplicity 2027177

TIRE

$

$

Not available

18

Simplicity 2153038SM

TUBE

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 2025213

AXLE ASSEMBLY

$

$

Not available

20

Simplicity 2087547

BEARING, Inner

$

$

Not available

21

Simplicity 922002

PIN, Cotter, 3/16 X 1-1/2

$

$

Not available

21

Simplicity 2818433

WASHER, 3/4

$

$

Not available

22

Simplicity 2025224

BRAKE ASSEMBLY (Brake Kit)

$

$

Not available

23

Simplicity 2025222

LINK, Brake (Brake Kit)

$

$

Not available

23

Simplicity 2821221

CAPSCREW, 5/16NC x 1-1/2 (Brake Kit)

$

$

Not available

23

Simplicity 2817642

WASHER, 11/32 x 1-1/2 x #12 (Brake Kit)

$

$

Not available

23

Simplicity 2818005

NUT, 5/16NC, Lock (Brake Kit)

$

$

Not available

24

Simplicity 2025501

SPACER (Brake Kit)

$

$

Not available

25

Simplicity 2025754

SPRING, Brake Link (Brake Kit)

$

$

Not available
