410 S (1600299) - AGCO Lawn Tractor, 10hp Mower Rollers Group (1506I38) Parts Diagram

Lawn Tractor, 10hp

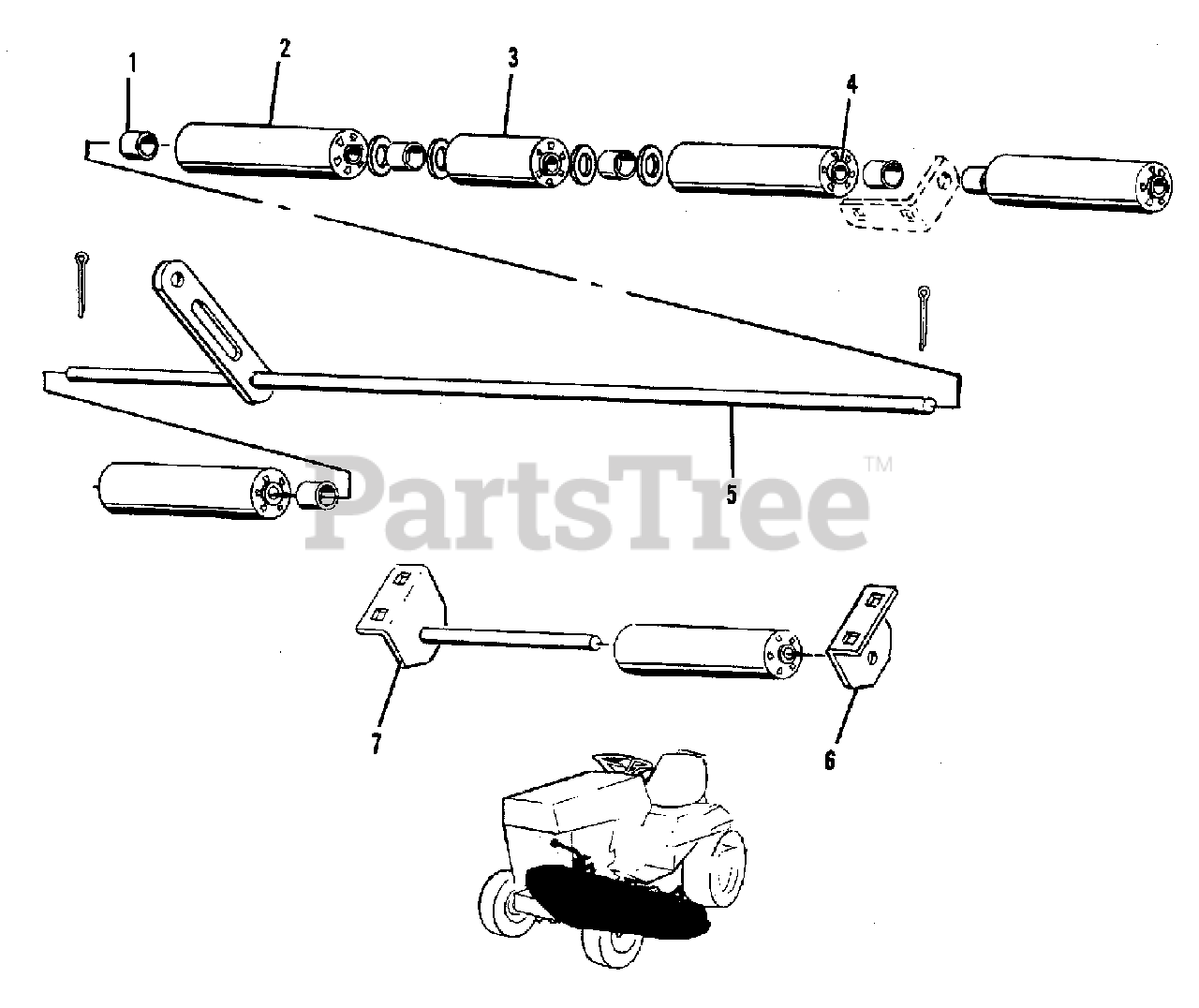

Mower Rollers Group (1506I38) Parts Diagram

  • Title

1

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

1

Simplicity 2819387

WASHER, .641 x 1-1/4 x 16 Ga.

$

$

Not available

2

Simplicity 1608398SM

ROLLER ASSEMBLY, Long (Includes BUSHING - Order As Required)

$

$

Not available

3

Simplicity 2026853

ROLLER ASSEMBLY, Short (Includes BUSHING - Order As Required)

$

$

Not available

4

Simplicity 2026842

BUSHING, Roller

$

$

Not available

5

Simplicity 1607607SM

SHAFT ASSEMBLY, 48" Mower

$

$

Not available

5

Simplicity 1668814SM

SHAFT ASSEMBLY, 42" Mower
(Superseded to 1668814ASM)

$113.99

$

Usually ships in 2-12 days

0

5

Simplicity 2818458

PIN, 3/26 x 1, Cotter

$

$

Not available

6

Simplicity 1603269SM

BRACKET, Center Roller

$66.99

$

Usually ships in 2-12 days

0

6

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1603309

SHAFT ASSEMBLY, Center Roller

$

$

Not available

7

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
