410 S (1600299) - AGCO Lawn Tractor, 10hp Mower Height Group (1506I39) Parts Diagram

Lawn Tractor, 10hp

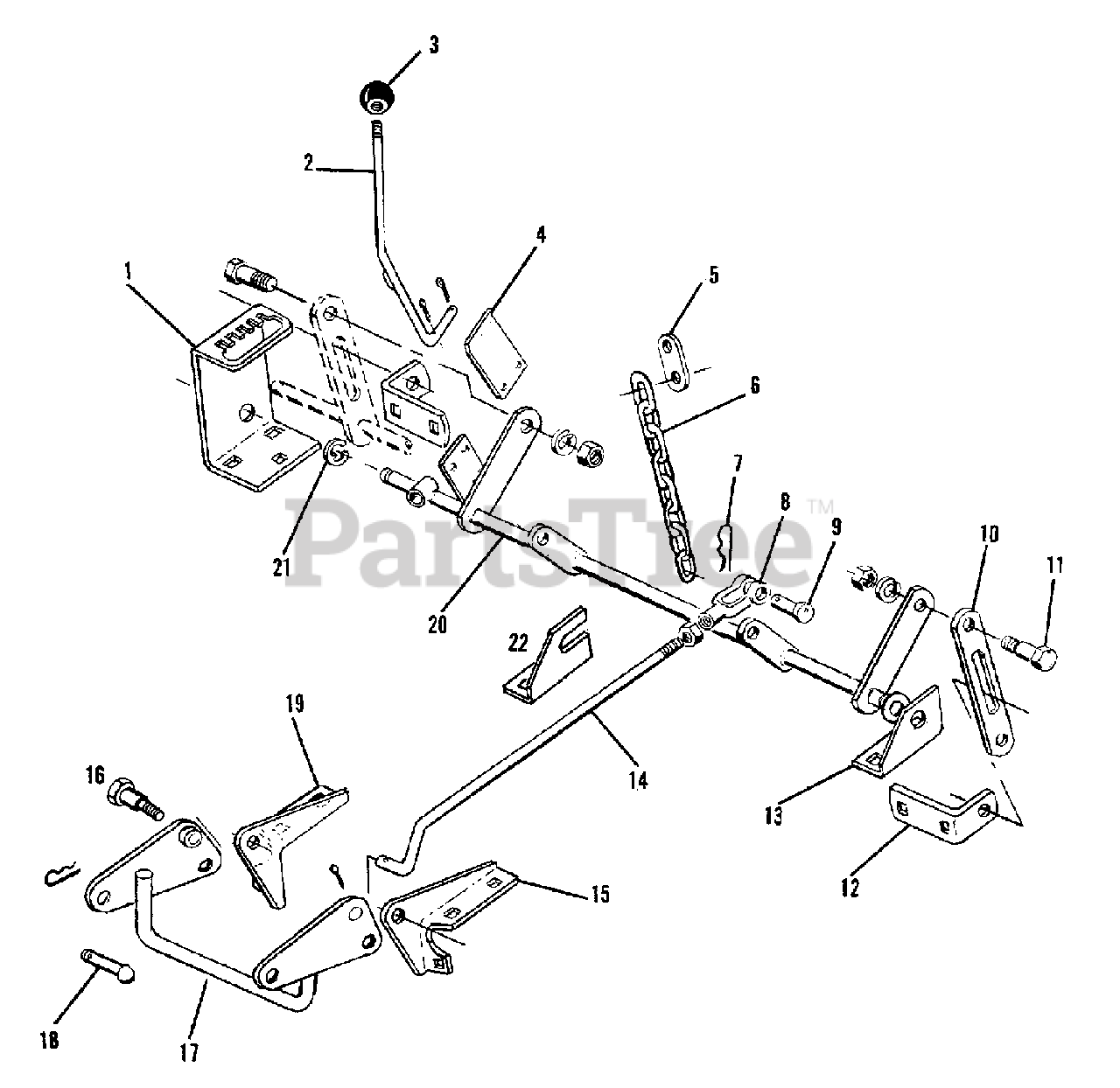

Mower Height Group (1506I39) Parts Diagram

  • Title

1

Simplicity 1603260

QUADRANT, Control

$

$

Not available

1

Simplicity 1608208

DECAL, Quadrant

$

$

Not available

1

Simplicity 2822110

BOLT, Carriage, 4/8NC x 3/4

$

$

Not available

1

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

1

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1607414

LEVER, Control

$

$

Not available

2

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

3

Simplicity 1676743SM

KNOB, Control Lever

$19.99

$

Usually ships in 2-12 days

0

4

Simplicity 1603262

SPRING, Lever Retaining

$

$

Not available

4

Simplicity 1602093

RIVET, Pop, 3/16

$

$

Not available

5

Simplicity 2025357

LINK, Lift

$

$

Not available

5

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 1924940SM

WASHER, Plain, 7/16 x 1 x #14
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2823428

NUT, Lock, 3/8NC

$

$

Not available

6

Simplicity 1603258

CHAIN, Lift

$

$

Not available

6

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1924940SM

WASHER, Plain, 7/16 x 1 x #14
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

6

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 9002801

PIN, Quick-Hitch

$

$

Not available

8

Simplicity 2027227

YOKE, Rod

$

$

Not available

9

Simplicity 2025661

PIN, Yoke

$

$

Not available

10

Simplicity 1603263SM

BAR, Roller Lift
(Superseded to 1603263ASM)

$26.99

$

Usually ships in 2-12 days

0

11

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 2818430

WASHER, Plain, 1/2 x 1-1/4 x #14

$

$

Not available

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

11

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

12

Simplicity 1603264SM

BRACKET, Roller Support

$20.99

$

Usually ships in 2-12 days

0

12

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

12

Simplicity 2823232

BOLT, Carriage, 3/8NC x 1

$

$

Not available

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 1603259

BRACKET, Pivot, L.H.

$

$

Not available

14

Simplicity 1603256

ROD, Adjusting, R.H. (f/42" Mower)

$

$

Not available

14

Simplicity 1603257

ROD, Adjusting, L.H. (f/42" Mower)

$

$

Not available

14

Simplicity 1603366

ROD, Adjusting, R.H. (f/48" Mower)

$

$

Not available

14

Simplicity 1603367

ROD, Adjusting, L.H. (f/48" Mower)

$

$

Not available

14

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

14

Simplicity 2819262

NUT, Jam 1/2NF

$

$

Not available

15

Simplicity 1602942

BRACKET, Link, L.H.

$

$

Not available

15

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

15

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

16

Simplicity 1608080

BOLT, Shoulder

$

$

Not available

16

Simplicity 2823428

NUT, 3/8NC, Lock

$

$

Not available

17

Simplicity 1608738

LINK ASSEMBLY, Pivot

$

$

Not available

18

Simplicity 2026849

PIN, Link

$

$

Not available

19

Simplicity 1602943

BRACKET, Link, R.H.

$

$

Not available

19

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 1606532

ARM ASSEMBLY, Adjusting

$

$

Not available

20

Simplicity 2824368

WASHER, Plain, 25/32 x 1-1/4 x #16

$

$

Not available

21

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 17

0

22

Simplicity 1608118

BRACKET, Lift

$

$

Not available

22

Simplicity 2823346

BOLT, 5/16NC x 3/4

$

$

Not available

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 923086

PIN, Spring, .072 x 1

$

$

Not available
