410 S (1600299) - AGCO Lawn Tractor, 10hp Hitch & Lift Group - S/N xxxx41001 & Up (1506I31) Parts Diagram

Lawn Tractor, 10hp

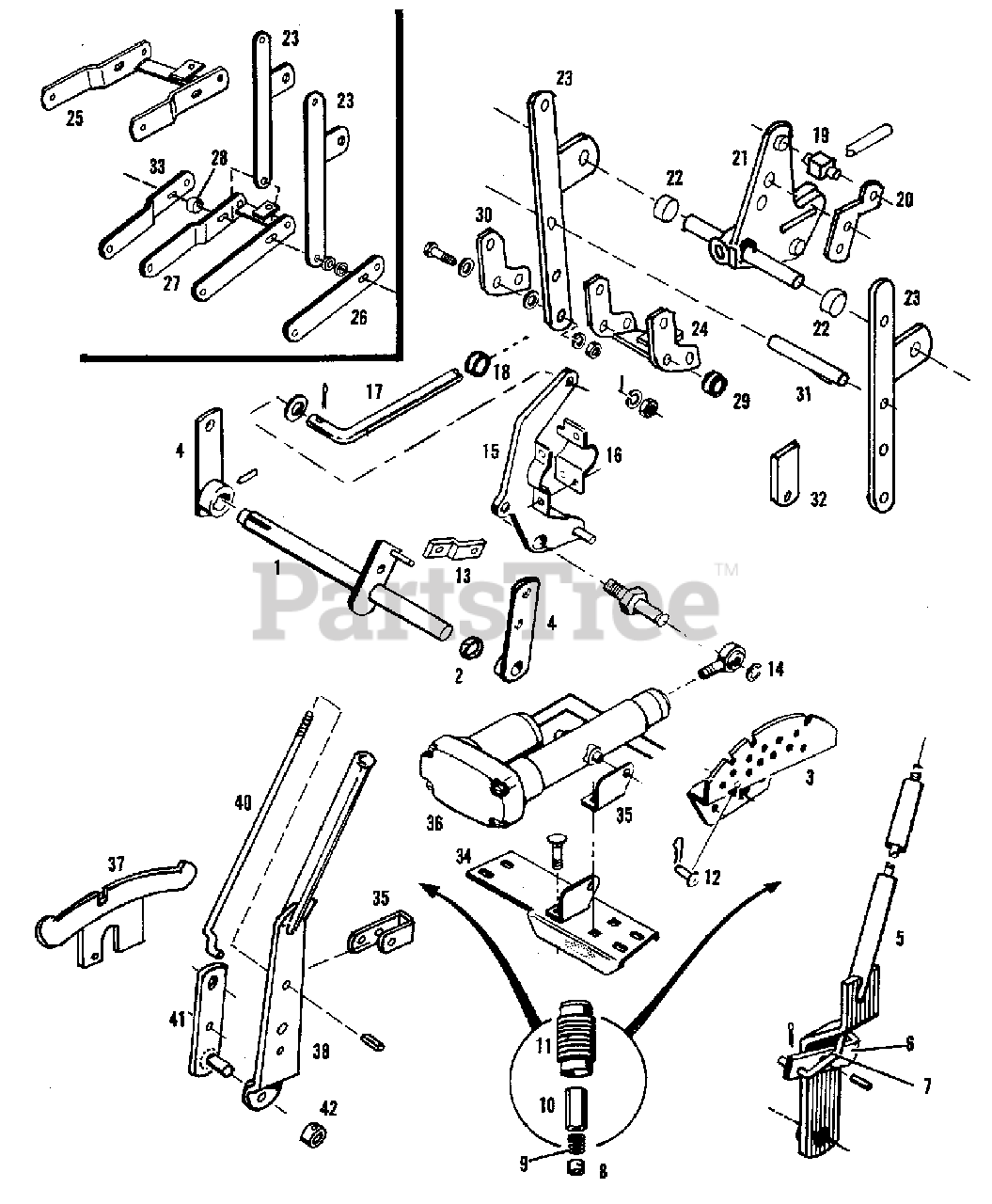

Hitch & Lift Group - S/N xxxx41001 & Up (1506I31) Parts Diagram

  • Title

1

Simplicity 1607649

SHAFT ASSEMBLY, Lift

$

$

Not available

1

Simplicity 921346

KEY, 1/4 x 1/4 x 1

$

$

Not available

2

Simplicity 2027391

COLLAR, Set

$

$

Not available

2

Simplicity 2811712

SETSCREW, 5/16NC x 5/16

$

$

Not available

3

Simplicity 1607648

QUADRANT, Lift Lever

$

$

Not available

3

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

3

Simplicity 2821965

CAPSCREW, 3/8NC x 3/4

$

$

Not available

4

Simplicity 1607651

LEVER ASSEMBLY, Front Lift

$

$

Not available

4

Simplicity 2029303

LEVER ASSEMBLY, Inner Lift

$

$

Not available

4

Simplicity 2811712

SETSCREW, 5/16NC x 5/16

$

$

Not available

5

Simplicity 1607653

LEVER ASSEMBLY, Lift

$

$

Not available

6

Simplicity 1602905

LATCH, Lift Lever

$

$

Not available

6

Simplicity 2818113

PIN, 3/8 x 1, Spring

$

$

Not available

6

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

7

Simplicity 1607657

ROD, Latch Lift Lever

$

$

Not available

8

Simplicity 2025614

SPACER, Handle Lever

$

$

Not available

9

Simplicity 2025491

SPRING, Stand

$

$

Not available

10

Simplicity 2025615

BUTTON, Thumb

$

$

Not available

11

Simplicity 2026007

GRIP, Lift Lever

$

$

Not available

12

Simplicity 1651167SM

PIN, Lock

$

$

Not available

12

Simplicity 9002801

PIN, Quick

$

$

Not available

13

Simplicity 1607658

LINK, Rear Lift

$

$

Not available

14

Simplicity 227976

RING, External Snap (1/2" Shaft)

$

$

Not available

15

Simplicity 1607997

SUPPORT ASSEMBLY, Bellcrank

$

$

Not available

16

Simplicity 1608151

SUPPORT, Bellcrank

$

$

Not available

16

Simplicity 2814687

FITTING, 1/4NF, Straight Lube

$

$

Not available

16

Simplicity 2821333

CAPSCREW, 5/16NC x 1

$

$

Not available

17

Simplicity 1607891

ROD, Lift

$

$

Not available

17

Simplicity 2816960

WASHER, 17/32 x 1-1/4 x 16 Ga.

$

$

Not available

17

Simplicity 2818452

PIN, 1/8 x 1 Cotter

$

$

Not available

18

Simplicity 1604312

SPACER

$

$

Not available

18

Simplicity 2813744

NUT, 1/2NC, Jam

$

$

Not available

19

Simplicity 1604308

SWIVEL

$

$

Not available

20

Simplicity 1604309

SUPPORT, Swivel

$

$

Not available

20

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

21

Simplicity 1608768

*&**LEVER ASSEMBLY, Lift

$

$

Not available

21

Simplicity 1604312

*&**BUSHING

$

$

Not available

21

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2025717

COLLAR, Set

$

$

Not available

22

Simplicity 2828709

SETSCREW, 5/16NC x 3.8, GR8

$

$

Not available

23

Simplicity 1607725

ARM ASSEMBLY, Drawbar

$

$

Not available

23

Simplicity 2820676SM

CAPSCREW, 7/16NC x 1

$4.49

$

In Stock, Qty 6

0

23

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

25

Simplicity 2025604

*DRAWBAR ASSEMBLY (Not For Hydrostatic)

$

$

Not available

26

Simplicity 2026009

BAR, Pull (Not For Hydrostatic)(L.H.)

$

$

Not available

27

Simplicity 2027465

**DRAWBAR ASSEMBLY (Hydrostatic Models)

$

$

Not available

28

Simplicity 1604312

BUSHING

$

$

Not available

29

Simplicity 2027467

SPACER (4 Used On Hydrostatic Models)

$

$

Not available

29

Simplicity 1608759SM

*&**SPACER (2 Used On Hydrostatic)

$6.49

$

Usually ships in 2-12 days

0

29

Simplicity 2820677

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

29

Simplicity 2818430

WASHER, 7/16 (Use As Required)

$

$

Not available

29

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

29

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

29

Simplicity 926109

CAPSCREW, 7/16NC x 2-1/4

$

$

Not available

30

Simplicity 2027466

PLATE, Draw (Hydrostatic Only)

$

$

Not available

30

Simplicity 2027663

DECAL, Plate (Hydrostatic Only)

$

$

Not available

31

Simplicity 2027468

SPACER (Hydrostatic Only)

$

$

Not available

31

Simplicity 2820677

CAPSCREW, 7/16NC x 1-1/4

$

$

Not available

31

Simplicity 2824347

CAPSCREW, 7/16NC x 3

$

$

Not available

31

Simplicity 2823027

CAPSCREW, 7/16NC x 1-3/4

$

$

Not available

31

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

31

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

32

Simplicity 2029178

STOP, (Hydrostatic Only)

$

$

Not available

33

Simplicity 2029306

DRAWBAR R.H.

$

$

Not available

34

Simplicity 1604142

SUPPORT, Actuator

$

$

Not available

34

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

34

Simplicity 2824940

WASHER, 12/32 x 7/8 x 14 GA

$

$

Not available

35

Simplicity 1603337

BRACKET, Support

$

$

Not available

35

Simplicity 2823232

BOLT, 3/8NC x 1, Carriage

$

$

Not available

36

See ELECTRICAL SYSTEM For ACTUATOR & COMPONENTS

$

$

Not available

37

Simplicity 1607660

QUADRANT ASSEMBLY, R.H. Lift

$

$

Not available

38

Simplicity 1607662

LEVER ASSEMBLY, R.H. Lift

$

$

Not available

39

Simplicity 2026126

LATCH, R.H. Lift

$

$

Not available

39

Simplicity 2818113

PIN, 3/8 x 1, Spring

$

$

Not available

40

Simplicity 1607664

ROD, R.H. Lift

$

$

Not available

40

Simplicity 2818448

PIN, 3/32 x 1, Cotter

$

$

Not available

41

Simplicity 2029176

LEVER ASSEMBLY, R.H. Lift

$

$

Not available

41

Simplicity 2821176

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

41

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

41

Simplicity 2813744

NUT, 1/2NC, Jam

$

$

Not available

41

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

41

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

41

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

41

Simplicity 2817377

WASHER, 1/4, Standard

$

$

Not available

41

Simplicity 2818431

WASHER, 1/2, Standard

$

$

Not available

42

Simplicity 2025717

COLLAR, Set

$

$

Not available

42

Simplicity 2828734

SETSCREW, 5/16NC x 1/4

$

$

Not available
