410 S (1600299) - AGCO Lawn Tractor, 10hp Drive Shaft Group (1506I05) Parts Diagram

Lawn Tractor, 10hp

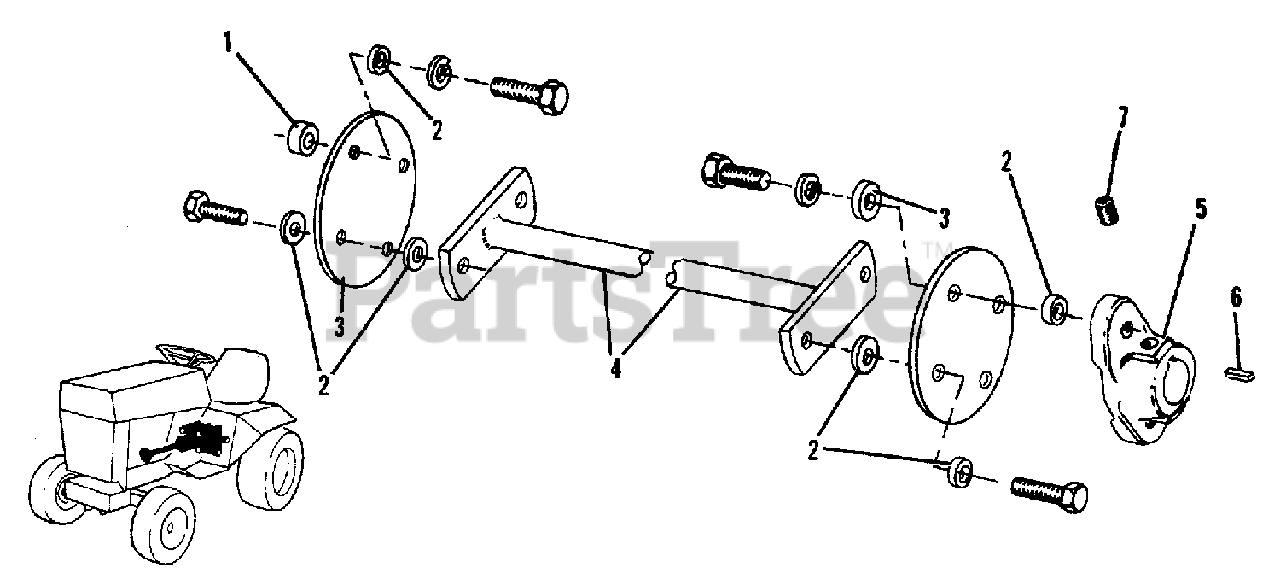

Drive Shaft Group (1506I05) Parts Diagram

  • Title

$

$

Not available

2

Simplicity 2026580

WASHER, Special

$

$

Not available

3

Simplicity 2029003

PLATE, Drive Shaft Coupling

$

$

Not available

3

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

3

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/2
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1601877

SHAFT ASSEMBLY, Drive

$

$

Not available

$

$

Not available

6

Simplicity 2026581

KEY, Special Parallel

$

$

Not available

7

Simplicity 1605496

SETSCREW, Socket Head, Cup Pit., 3/8NF x 5/16

$

$

Not available
