410 (84229) - Snapper String Trimmer 410 General Assembly (Part 2) Parts Diagram

String Trimmer

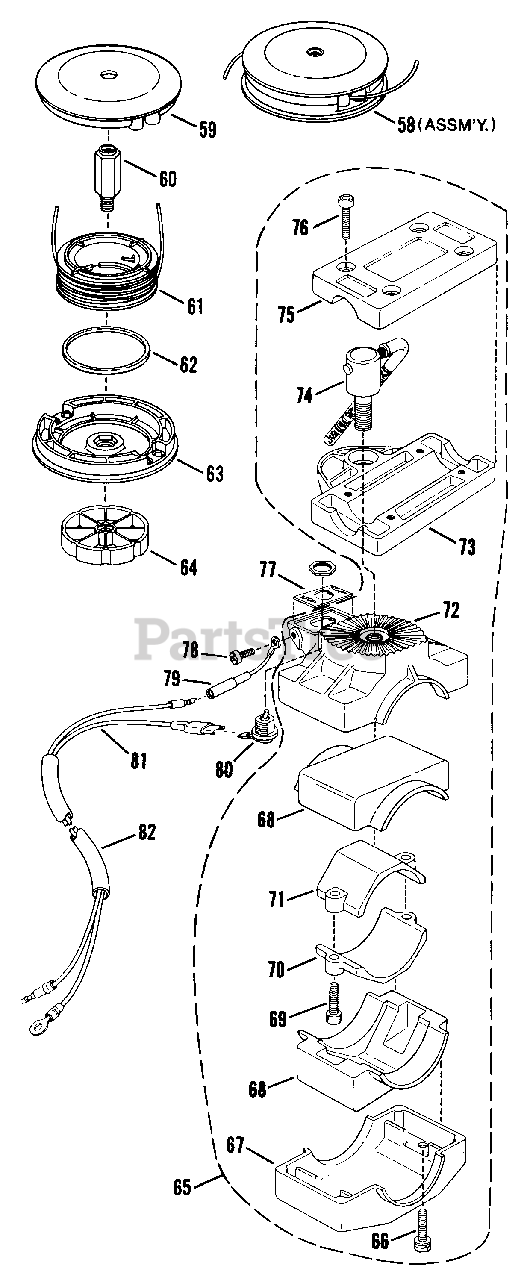

410 General Assembly (Part 2) Parts Diagram

  • Title

58

Snapper 7018724

MANUAL HEAD ASSM'Y

Note: (Includes items 59 thru 64)

$

$

Not available

59

Snapper 7015078

HOUSING, Upper

$

$

Not available

60

Snapper 7015077

ARBOR (10mm hole)

$

$

Not available

61

Snapper 7068048

SPOOL & LINE
(Superseded to 7068048YP)

$15.99

$

In Stock, only 1 left!

0

62

Snapper 7015076

O-RING

$

$

Not available

63

Snapper 7015073

HOUSING, Lower

$

$

Not available

64

Snapper 7015072

KNOB, Lock

$10.99

$

Usually ships in 2-12 days

0

65

Snapper 7043943

SWIVEL HANDLE ASSM'Y

Note: (Includes items 66 thru 76)

$

$

Currently unavailable

66

Snapper 7043951

BOLT, M6 x 30mm, Hex

$

$

Currently unavailable

67

Snapper 7043946

JOINT "C", Handle

$

$

Currently unavailable

68

Snapper 7043950

RUBBER, Vibro

$

$

Currently unavailable

69

Snapper 7043930

SCREW, M6 x 25mm, Allen H

$

$

Currently unavailable

70

Snapper 7043948

FITTING "B", Tube

$

$

Currently unavailable

71

Snapper 7043949

FITTING "A", Tube

$

$

Currently unavailable

72

Snapper 7043947

JOINT "D", Handle

$

$

Currently unavailable

73

Snapper 7043945

JOINT "B", Handle

$

$

Currently unavailable

74

Snapper 7043954

LOCK HANDLE

$

$

Currently unavailable

75

Snapper 7043944

JOINT "A", Handle

$

$

Currently unavailable

76

Snapper 7043952

SCREW, M5 x 20mm, Allen Hd.

$

$

Currently unavailable

77

Snapper 7043975

PLATE, Switch

$

$

Not available

78

Snapper 7043977

SCREW, M5x10mm
(Superseded to 7043977YP)

$

$

Not available

79

Snapper 7043976

LEAD, Wire (Ground)

$

$

Not available

80

Snapper 43974

SWITCH, Stop

Note: (Includes nut)

$

$

Currently unavailable

81

Snapper 7044041

WIRE LEADS

$

$

Not available

82

Snapper 7044040

TUBE

$

$

Not available
